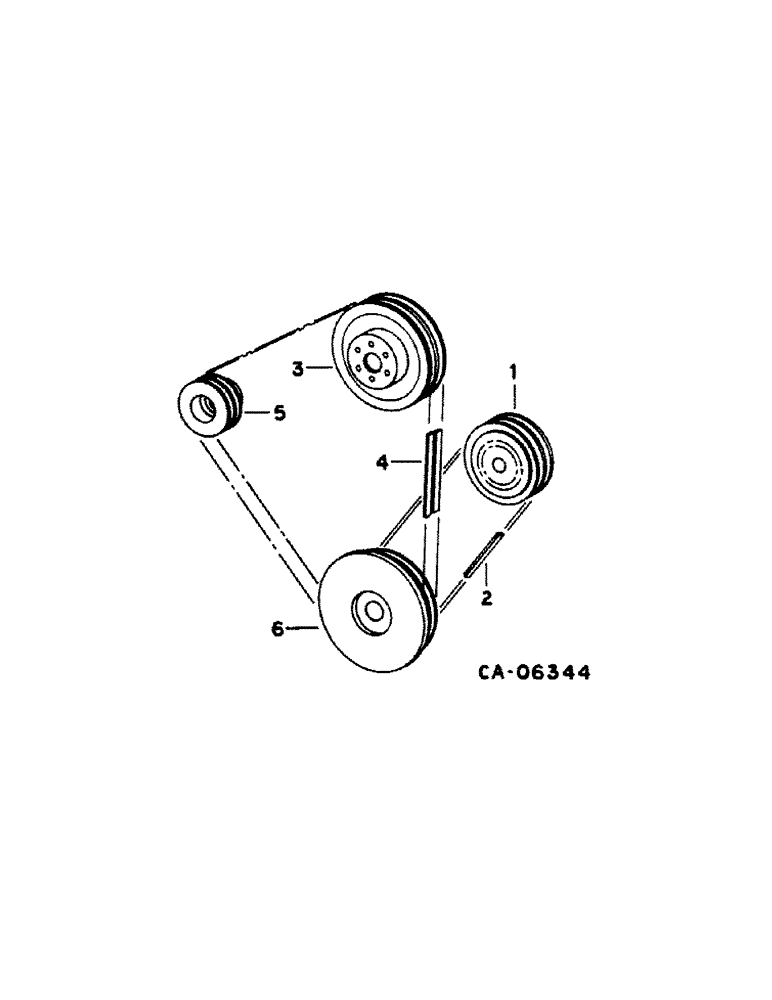

Запчасти Case IH 1420 (12-10[A]) - POWER, ENGINE BELT DIAGRAM Power

1

PULLEY ASSY, compressor, refer to group 13 under air conditioner compressor and condenser

1шт.

2

BELT, compressor drive, refer to group 13 under air conditioner compressor and condenser

1шт.

3

PULLEY, water pump, refer to eng-5 engine catalog

1шт.

4

130724C91

SET OF BELTS,0.50" W

Matched, V-Belt, Fan 0.50" W

1шт.

5

PULLEY, alternator-genterator, refer to group 8 under alternator- generator and mountings

1шт.

6

PULLEY W/VIBRATION DAMPER, refer to eng-5 engine catalog

1шт.
