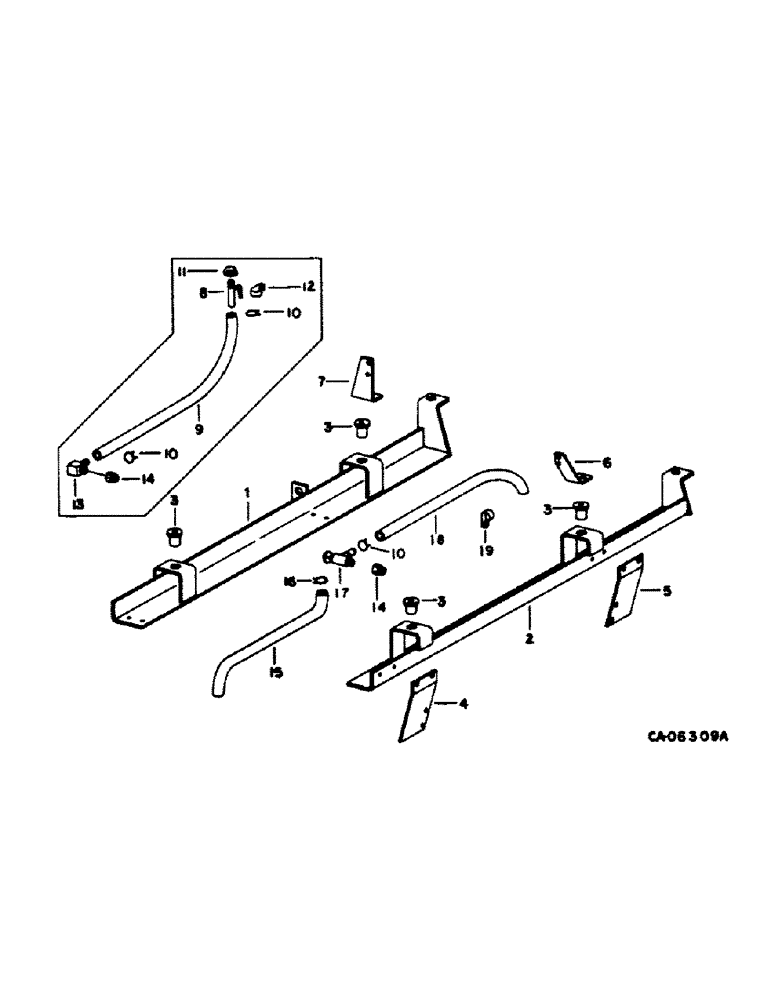

Запчасти Case IH 1420 (12-08) - POWER, ENGINE RAILS Power

1

194907C2

RAIL ASSY.

RAIL ASSY, engine LH, Includes: screw and nut

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 hex-hd flange

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

2

194906C1

RAIL ASSY.

RAIL ASSY, engine RH, Includes: screws and nuts

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 hex-hd flange

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

3

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR, engine front and rear, Includes: bolt and nut

4шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 cad p/t lock type 5

1шт.

107813R1

WASHER

21/32 x 2-1/2 x 3/16

1шт.

4

194908C1

SUPPORT

engine rail LH Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

194909C1

SUPPORT

engine rail RH, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

194910C1

SUPPORT

engine front RH, Includes: bolt and washer

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

194911C1

SUPPORT

engine front LH, Includes: bolt and washer

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

165203C91

FITTING

ASSY, crankcase oil drain, note

1шт.

Machines not equipped with shut off valve

1шт.

9

HOSE, crank case drain, note, use 50 in. of 5/8 in. ID hose from 25 ft. roll marked S118576

1шт.

Machines not equipped with shut off valve

1шт.

10

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, oil drain hose

1шт.

11

221-1524

CAP,3/8" NPT

3/8 pipe, note

1шт.

Machines not equipped with shut off valve

1шт.

12

587501R2

CLAMP

oil drain hose, note

1шт.

Machines not equipped with shut off valve

1шт.

13

864456R1

NIPPLE, LUBE

NIPPLE, oil drain hose 90 deg, note

1шт.

Machines not equipped with shut off valve

1шт.

14

175778H1

ADAPTER

1/2 x 3/8 reducing pipe

1шт.

15

195898C1

HOSE

crankcase breather, 46.0 in., 1168.4mm

1шт.

16

681146R1

HOSE CLAMP,#22, 1 3/8", Spring

CLAMP, breather hose

1шт.

17

301803R1

SHUT-OFF VALVE

SHUT OFF, crankcase drain

1шт.

18

HOSE, crankcase oil drain, use 36 in. of 5/8 ID hose from 25 ft. roll marked S118576

1шт.

19

299606C1

CLIP

oil drain hose

1шт.
