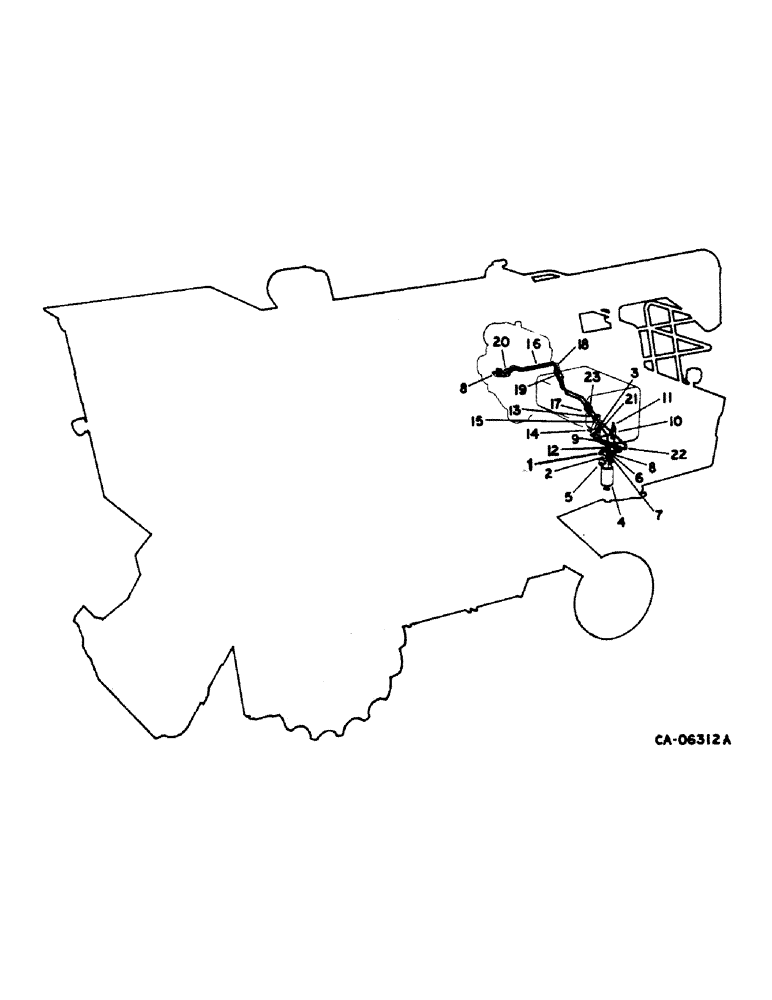

Запчасти Case IH 1420 (12-07) - POWER, FUEL LINES Power
№
Артикул
Название
Примечание
Количество
1
183721C1
PUMP
ASSY, fuel
1шт.
2
443986
REDUCER,1/4"-18 NPTF x 1/8"-27 NPTF
NIPPLE, 1/4 to 1/8 pipe reducer
1шт.
3
444026
REDUCER,3/8"-18 NPTF x 1/8"-27 Fem NPTF
ADAPTER, 3/8 to 1/8 pipe reducer
1шт.
4
702255C1
FILTER ASSY
fuel
1шт.
5
612277C2
FILTER HEAD
BASE, fuel filter, Includes: bolt and nut
1шт.
18773R1
BOLT,Hex, 5/16" - 18 x 4", Gr 2
5/16 x 4 type 1
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
6
444614
PLUG,Hex Hd, 1/8"-27, Brass
1/8-27 hex-hd pipe
1шт.
7
20988R1
PLUG,Hex Hd, 1/4"-18, Brass
1/4-18 hex-hd pipe
2шт.
8
442323
CONNECTOR, ELEC
CONNECTOR, 1/4 inverted flared tube
1шт.
9
1301110C1
TUBE
ASSY, fuel, Serial Range: filter-tank
1шт.
10
161707C1
VALVE,5/8" - 18 x 1/4" NPTF
VALVE ASSY, fuel shut-off
1шт.
11
179381C1
SIEVE
STRAINER ASSY, fuel tank to 10250
1шт.
11
217-42
REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT
ADAPTER, 3/8 to 1/4 pln out/h/hyd pipe 10251 to
1шт.
12
920654C1
CONNECTOR, ELEC
CONNECTOR, 5/8 to 1/8 nptf
1шт.
13
1301111C1
FUEL TUBE
TUBE ASSY, fuel line pressure lower
1шт.
14
1301174C1
SUPPORT TUBE
SUPPORT, fuel line lower tubes, Includes: nut and screw
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt-truss-hd
1шт.
15
183825C1
CLAMP
tube, Includes: bolt and nut
3шт.
87716
BOLT,1/4"-20 x 1-1/4", Cl 5
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
16
1301114C1
FUEL TUBE
TUBE ASSY, fuel line return upper
1шт.
17
442338
UNION
5/16 inverted flared tube
1шт.
18
1301112C1
FUEL TUBE
TUBE ASSY, fuel line upper
1шт.
19
198462C1
PLATE
BAR, fuel line upper tubes support
1шт.
20
178950C1
ANGLE
fuel line upper tubes support
1шт.
21
442411
ELBOW
fuel line return lower, Serial Range: tube-tank
1шт.
22
1301113C1
FUEL TUBE
TUBE ASSY, fuel line return lower
1шт.
23
442337
NUT
UNION, 5/16 inverted flared tube
1шт.
Выбрано товаров: 30
