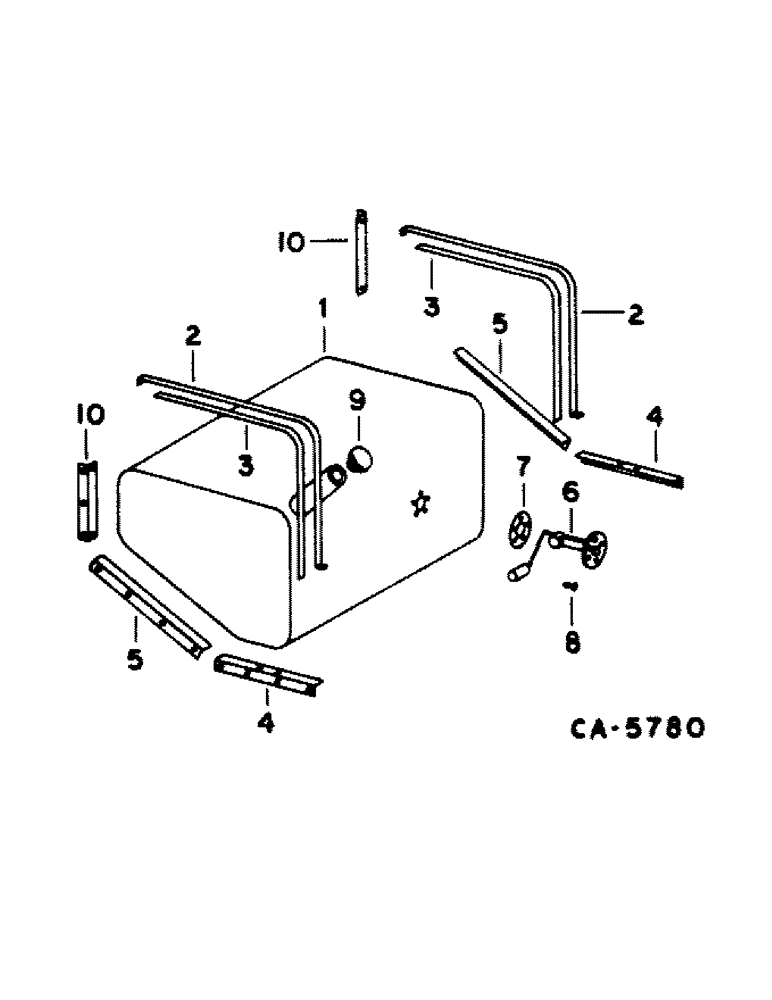

Запчасти Case IH 1420 (12-06) - POWER, FUEL TANK Power

1

194844C1

FUEL TANK

TANK ASSY, fuel

1шт.

2

1302031C1

STRAP

fuel tank support, Includes: bolt screw nuts and washers

2шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd flange

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 pt lock

1шт.

3

LINING, fuel tank support, use 72 in. of 1-1/4 in. width 3 ply cotton webbing from 50 ft. roll marked 990539R1

1шт.

4

192381C3

SUPPORT

ANGLE, fuel tank bottom support, Includes: nut and screw

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

1302029C1

SUPPORT

ANGLE, fuel tank forward support, Includes: nut and screw

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

198024C1

FUEL GAUGE

SENDING UNIT, fuel tank

1шт.

7

168515C1

GASKET,3.05mm Thk

fuel tank sending unit

1шт.

8

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

9

538063R1

PLUG

CAP, filler

1шт.

10

1302030C1

ANGLE

ANGLE, fuel tank front, Includes: screw

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
