(12-05[A]) - POWER, MUFFLER SHIELD

Запчасти Case IH 1420 (12-05[A]) - POWER, MUFFLER SHIELD Power

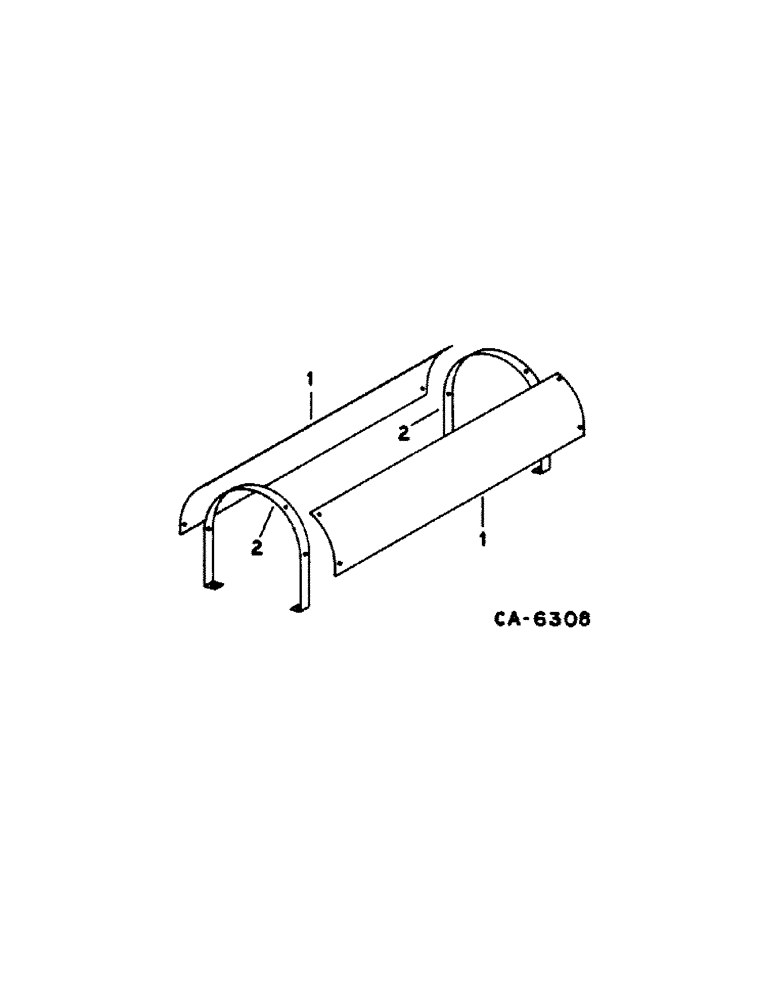

Схема запчастей Case IH 1420 - (12-05[A]) - POWER, MUFFLER SHIELD Power
1
2
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

183299C1

SHIELD

muffler, Includes: screw and nut

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

183300C1

SUPPORT

muffler shield, screw and nut

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

Выбрано товаров: 6
