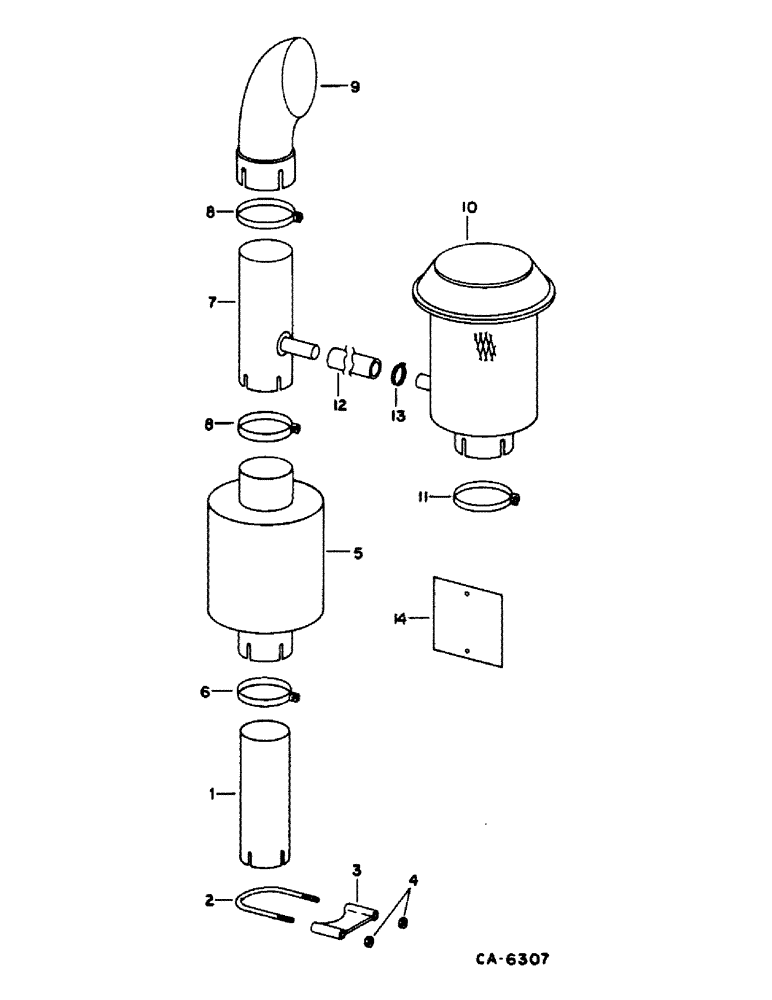

Запчасти Case IH 1420 (12-03) - POWER, ASPIRATED PRE-CLEANER PRE-SCREENER WITH SPARK ARRESTOR Power

1

146426C1

PIPE

spark arrester

1шт.

2

538150R1

BOLT

U-BOLT, exhaust clamp

1шт.

3

538149R1

SADDLE

exhaust clamp

1шт.

4

535993R1

NUT

muffler clamp

2шт.

5

404508R1

ARRESTER

spark

1шт.

6

162281H1

PACKAGE

CLAMP, exhaust

1шт.

7

533182R1

BODY

EJECTOR, exhaust

1шт.

8

391156R1

CLAMP

exhaust ejector, Includes: bolt, washer and nut

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

527269R1

PIPE

exhaust elbow

1шт.

10

131052C1

PRESCREENER ASSY.

PRE-CLEANER PRE-SCREENER, Includes: bolt, nut and washer

1шт.

11

650984C1

CLAMP

pre-cleaner pre-screener

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

131399C1

HOSE,31.75 mm ID x 469.9 mm, SAE 20R4 CLASS D2

31.75 mm ID x 469.90 mm, SAE 20R4, CLASS D-2 or D-1, Exhaust Ejector

1шт.

13

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

14

131355C1

PLATE

BAR, air intake cover plate, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
