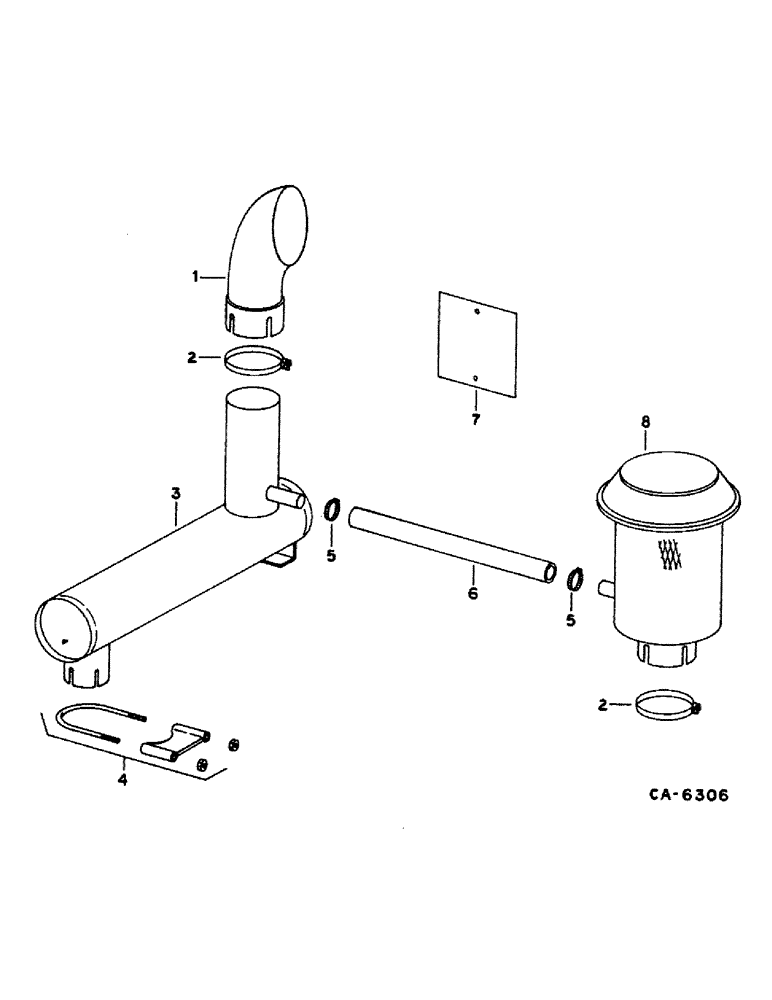

Запчасти Case IH 1420 (12-02) - POWER, ASPIRATED PRE-CLEANER PRE-SCREENER, FOR FACTORY INSTALLED ASPIRATOR ATTACHMENT Power

131344C91

FILTER ASSY

PACKAGE, aspirator pre-cleaner/pre-screener, parts accessory, consists of ref. nos. 1 thru 8

1шт.

1

397178R2

EXHAUST SYSTEM PIPE,76.2 mm OD

PIPE, exhaust

1шт.

2

663432C1

CLAMP,69.85mm - 82.65mm

exhaust pipe (Replaces 650984C1), Includes: nut, washer and bolt

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

3

MUFFLER, for component refer to this group under muffler

1шт.

4

162281H1

PACKAGE

muffler clamp

1шт.

5

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, ejector hose

2шт.

6

107669C1

HOSE,31.75 mm x 304.80 mm

Exhaust Ejector 31.75 mm x 304.80 mm

1шт.

7

131355C1

PLATE

air intake cover, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

131052C1

PRESCREENER ASSY.

PRE - CLEANER PRE - SCREENER ASSY

1шт.
