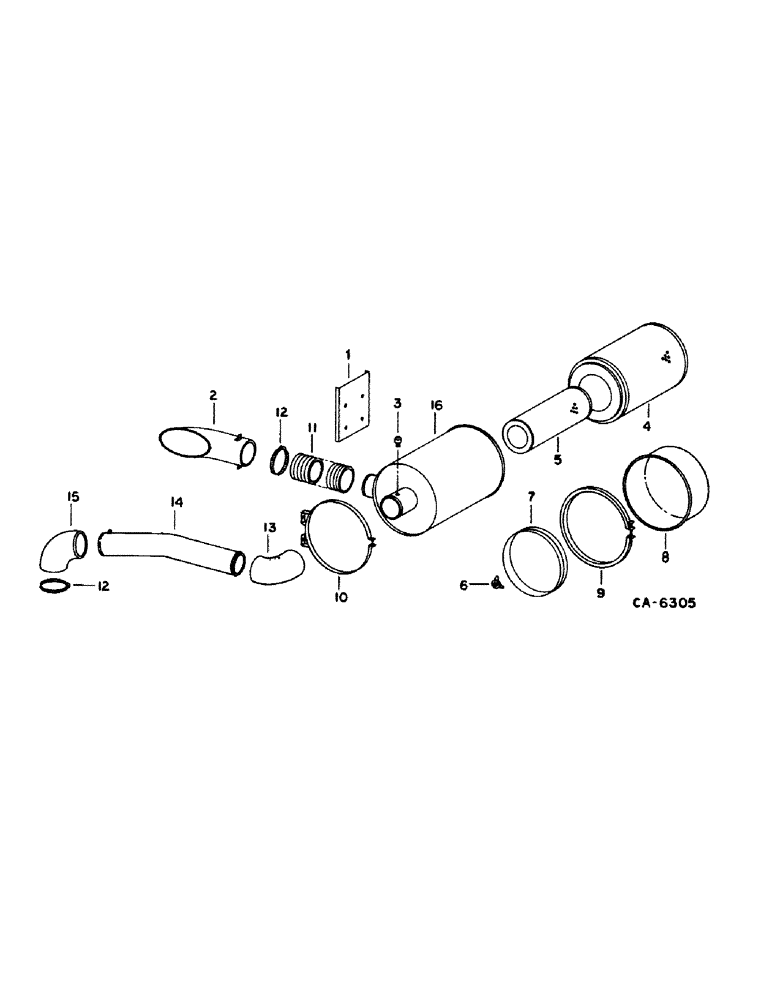

Запчасти Case IH 1420 (12-01) - POWER, AIR CLEANER AND CONNECTIONS Power

146456C91

CLEANER ASSY.

AIR CLEANER, dry type, Includes: Ref, nos. 4 thru 9

1шт.

1

183024C2

CLEANER ASSY.

CHANNEL, air cleaner support, Includes: bolt and nut

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

195130C1

TUBE

ASSY, air cleaner inlet, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

366078C1

INDICATOR

air restriction

1шт.

4

690049C2

AIR CLEANER

ELEMENT, primary

1шт.

5

529852R5

AIR FILTER

ELEMENT, safety

1шт.

6

381342R92

WING NUT

NUT ASSY

1шт.

7

404193R1

BAFFLE

1шт.

8

404194R1

COVER

CUP ASSY

1шт.

9

130879HB

CLAMP

ASSY

1шт.

10

603697C91

CLAMP

BAND, air cleaner mounting, Includes: screw, nuts and bolt

2шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

180087

SPRING

5/16 x 2 type 5

1шт.

11

146408C1

TUBE

pre-cleaner

1шт.

12

146569C1

CLAMP

1шт.

13

304398R1

ELBOW

air cleaner outlet

1шт.

14

146409C1

TUBE ASSY.,75 mm Length

TUBE ASSY, air cleaner outlet

1шт.

15

146407C1

ELBOW

manifold inlet

1шт.

16

HOUSING, air cleaner, not serviced separately, order air cleaner, 146456C91

1шт.
