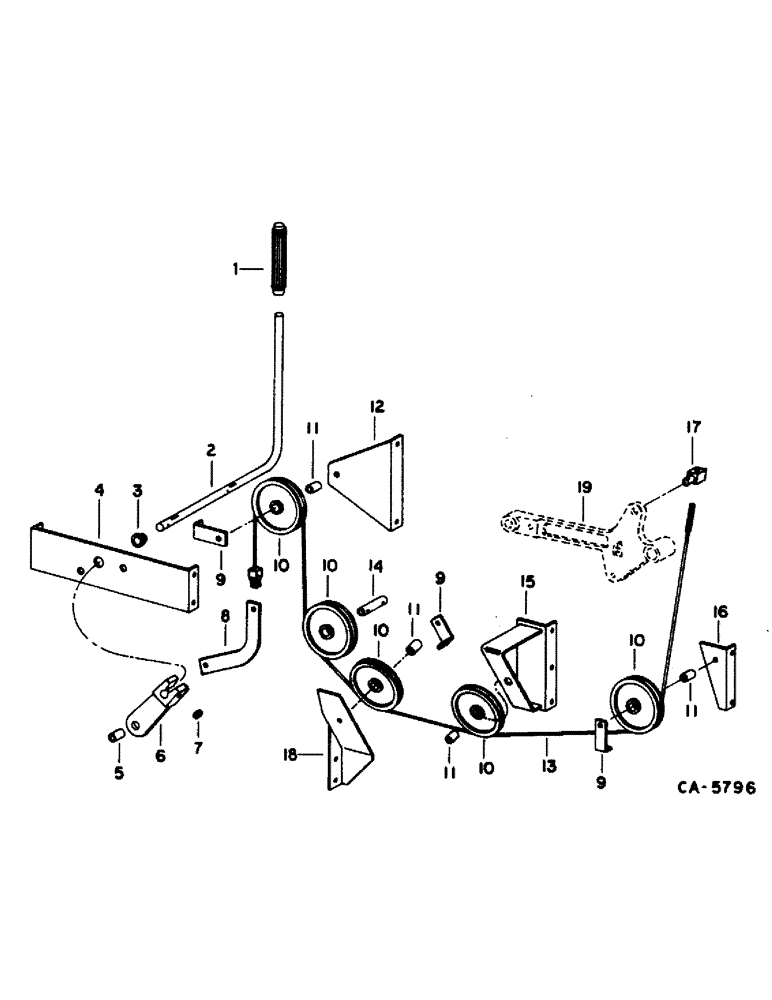

Запчасти Case IH 1420 (26-11) - GRAIN TANK, GRAIN TANK UNLOADER CONTROL Grain Tank

1

193194C2

HANDLE

GRIP, unloader control lever hand

1шт.

2

193196C1

ROD

unloader control, Includes: pin and washer

1шт.

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

22258R1

WASHER

.656 x 1.000 x .027

1шт.

3

193201C1

BUSHING

unloader control lower pivot

2шт.

4

195050C2

CHANNEL

control lever right support, Includes: nuts, screw and bolt

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

5

27251K

SPACER,5/8" Tube x 7/16"

.407 ID x .625 OD x .438 tubing, Includes: nut and bolt

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

454467

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

3/8 x 1-3/4 type 8

1шт.

6

161650C2

ARM

control, Includes: bolt, nut and washer

1шт.

454467

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

3/8 x 1-3/4 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

7

18465D

WASHER

control arm

1шт.

8

195549C1

LINK

SUPPORT, control link, Includes: washer

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

9

193209C1

CLIP

SUPPORT, unloader control cable

4шт.

10

193208C1

PULLEY

unloader control cable, 2.50 in. OD - 63.5mm OD

5шт.

11

159716C1

SPACER,3/4" Tube x 5/8"

.532 ID x .750 OD x .562, Includes: bolt, nut and washer

3шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

12

195551C1

SUPPORT

pulley, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

13

195550C1

CABLE

unloader control, nut and pins

1шт.

120368

NUT,5/16"-24, G5

1шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN, 5/16 x .719 clevis

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

14

195553C1

PIN

cable pulley, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

15

181407C1

SUPPORT ASSY.

SUPPORT ASSY, center cable guide

1шт.

16

182628C1

SUPPORT

rear pulley

1шт.

17

194893C1

PIVOT

unloader control cable rear, Includes: pin and washer

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

18

181406C1

SUPPORT

front cable, Includes: screw and nut

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

19

ARM ASSY, unloader belt tightener, refer to this group under grain tank unloader drive

1шт.
