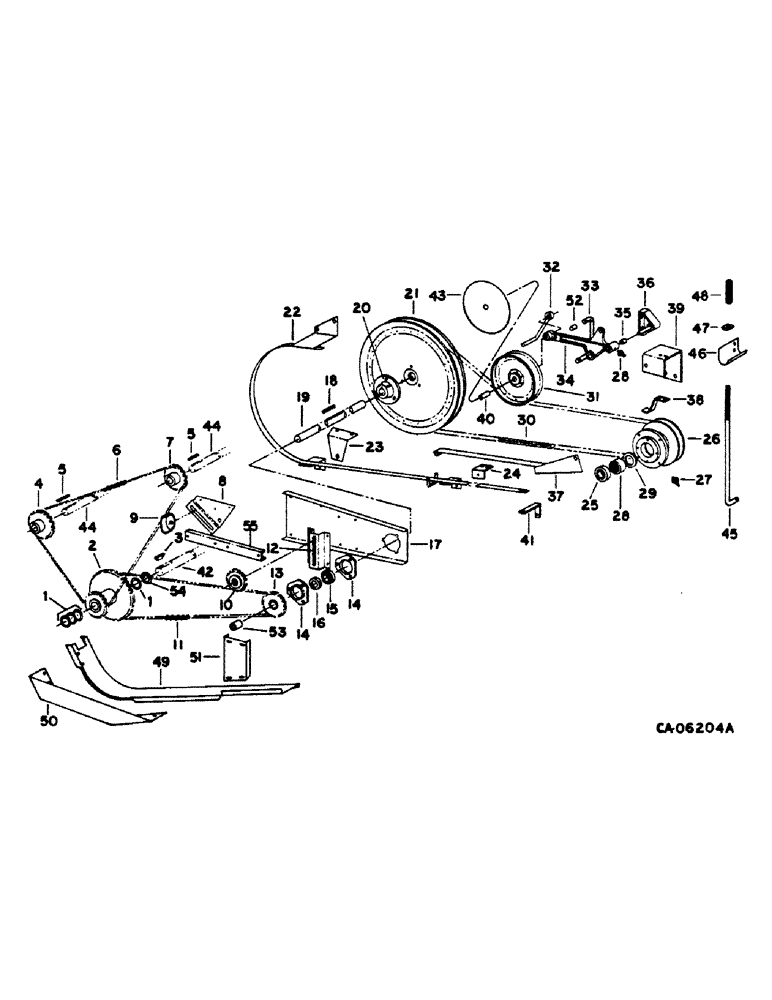

Запчасти Case IH 1420 (26-09) - GRAIN TANK, GRAIN TANK UNLOADER DRIVE Grain Tank

1

162679C1

WASHER

WASHER, 1.40 x 2.25 x .06 hardened

1шт.

2

192511C2

SPROCKET ASSY.

SPROCKET ASSY, unloader drive, 43T and 57T

1шт.

3

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

4

192922C1

SPROCKET

ASSY, front auger driven, 43T, Includes: pin and washers

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

1шт.

5

Q53

KEY,1/4" Sq x 1", Par

2шт.

6

CHAIN ASSY, grain tank auger drive, use 157 links from A 10 ft roll marked 1790D, and 1 connecting link 1301D

1шт.

1301D

CHAIN LINK

LINK, #40 single pitch connecting

1шт.

7

192925C1

SPROCKET

ASSY, rear auger driven, 37T

1шт.

8

193779C1

SUPPORT

idler support, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

9

936878R1

BLOCK

front auger drive tightener, Includes: bolt, nut and washer

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

565442R91

SPROCKET

vertical auger chain tightener, 17T, Includes: bolt, nut and washers

1шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2 x 2-1/2 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

.531 x 1.250 x .105 sq/h

1шт.

11

CHAIN ASSY, vertical auger drive, use 12B links from a 10 ft roll marked 1791D and one offset link 1315 and 2 connecting link 1310D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

12

192901C1

SUPPORT

vertical auger drive, Includes: bolt and nut

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

182608C91

SPROCKET ASSY.

SPROCKET ASSY, rear auger drive, 27T to 5500

1шт.

13

1310363C91

SPROCKET ASSY.

SPROCKET ASSY, auger drive, 27T, serial no. 5501 and above, Includes: pins and Ref. no. 53

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

378484R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2. hd type 5

1шт.

24812R1

HEADED PIN,1/4" x 2"

PIN, HEADED, 1/4" x 2"

1шт.

14

571425R1

FLANGED BEARING

unloader jackshaft bearing, Includes: nut and screw

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

15

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

unloader jackshaft

2шт.

16

557115R11

COLLAR

COLLAR W/SET SCREW, jackshaft bearing locking

2шт.

17

192899C2

SUPPORT

jackshaft outer, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 X 3/4 hex-hd flange

1шт.

18

586879R1

KEY

5/16 x 5/16 x 2.0 sq. parallel

1шт.

19

1303097C1

SHAFT

vertical auger to 5500

1шт.

19

1310359C1

SHAFT

vertical auger, Includes: washers, Start Serial: 5501

1шт.

21716R1

WASHER

1.156 x 1.750 x .054

1шт.

478258R1

WASHER

1.156 x 1.750 x .105

1шт.

20

192882C1

HUB

jackshaft driven pulley, Includes: bolt, nuts, screw and washer

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 jam type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 znp sq/hd c/pt set

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

192967C1

PULLEY ASSY.

PULLEY ASSY, unloader jackshaft driven, 18.6 in. OD - 472.4mm OD, Includes: rivet

1шт.

104233

RIVET, 3/16 x 1/4 pln f/hd sol 3/16" x 1/4"

1шт.

22

195168C2

GUIDE

ASSY, unloader belt, Includes: nuts and screws

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

23

192870C1

SUPPORT

belt guide lower front, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

24

195416C1

SUPPORT

belt guide center

1шт.

25

658089R91

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, pump drive pulley

1шт.

26

192945C91

PULLEY ASSY.

PULLEY ASSY, auxiliary pump drive, 7.22 in. OD - 183.4 mm OD, includes ref. nos. 25, 28 and 29

1шт.

27

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tap lub

1шт.

28

191213C91

NEEDLE BEARING,41.275 mm ID x 50.812 mm OD x 25.4 mm

BEARING, pump drive pulley rear

1шт.

29

466176R92

SEAL

rear pulley bearing

1шт.

30

195143C1

BELT,22.33 mm W x 3436.69 mm L

V-BELT , Unloader jackshaft drive, OC 22.33 mm W x 3436.69 mm L

1шт.

31

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

ASSY, unloader belt tightener, 8.75 in. OD - 222.3mm OD, Includes, bolt, nut and washer

1шт.

271735

BODY,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

32

194894C1

ROD

unloader belt upper

1шт.

33

193820C1

ROD

unloader belt upper, Includes: pin and washer

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

142619H

WASHER

.406 X .750 X .105

1шт.

34

185059C92

ARM ASSY.

ARM ASSY, unloader belt tightener, Includes: Ref. nos. 35 and 52

1шт.

35

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

unloader belt tightener arm

2шт.

36

191464C1

SUPPORT

unloader tightener arm, Includes: nut, pin, screw and washer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

366112R1

WASHER

.781 X 1.250 X .105

1шт.

37

193716C1

SUPPORT ASSY.

SUPPORT ASSY, upper belt guide, Includes: bolt and nut

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 znd type 5

1шт.

231-1448

NUT,1/2"-13, GB

1/2 p/t lock type 5

1шт.

38

193627C1

SUPPORT

unloader belt trap, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

39

194599C1

SUPPORT

CHANNEL, upper belt guide inner, Includes: nut and bolt

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

40

568005R1

SPACER,7/8" Tube x 1 3/8"

belt tightener shield

1шт.

41

186059C1

ANGLE

belt guide rear, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

42

SHAFT, horizontal auger gear case, refer to this group under grain tank unloader lower drive

1шт.

43

186483C1

GUARD ASSY.

SHIELD, unloader belt tightener pulley

1шт.

44

AUGER ASSY, grain tank bottom, refer to this group under grain tank bottom auger

2шт.

45

185061C1

ROD

unloader belt tightener, Includes: nut, pin and washer

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

46

185062C1

SUPPORT

unloader arm spring, Includes: screw and nut

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

47

194652C1

PIVOT

belt tightener rod

1шт.

48

391745R1

SPRING

unloader tightener arm

1шт.

49

1302434C1

SHIELD

unloader drive

1шт.

50

183351C1

PLATE

unloader side, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

51

1302435C1

SUPPORT

unloader shield

1шт.

52

1302225C1

BUSHING

unloader belt tightener

1шт.

53

574294R1

BUSHING

rear auger drive sprocket

1шт.

54

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.40 x 2.25 x .12 hardened

1шт.

55

1319469C1

CHANNEL

unloader jackshaft support, Includes: bolt and nut

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.
