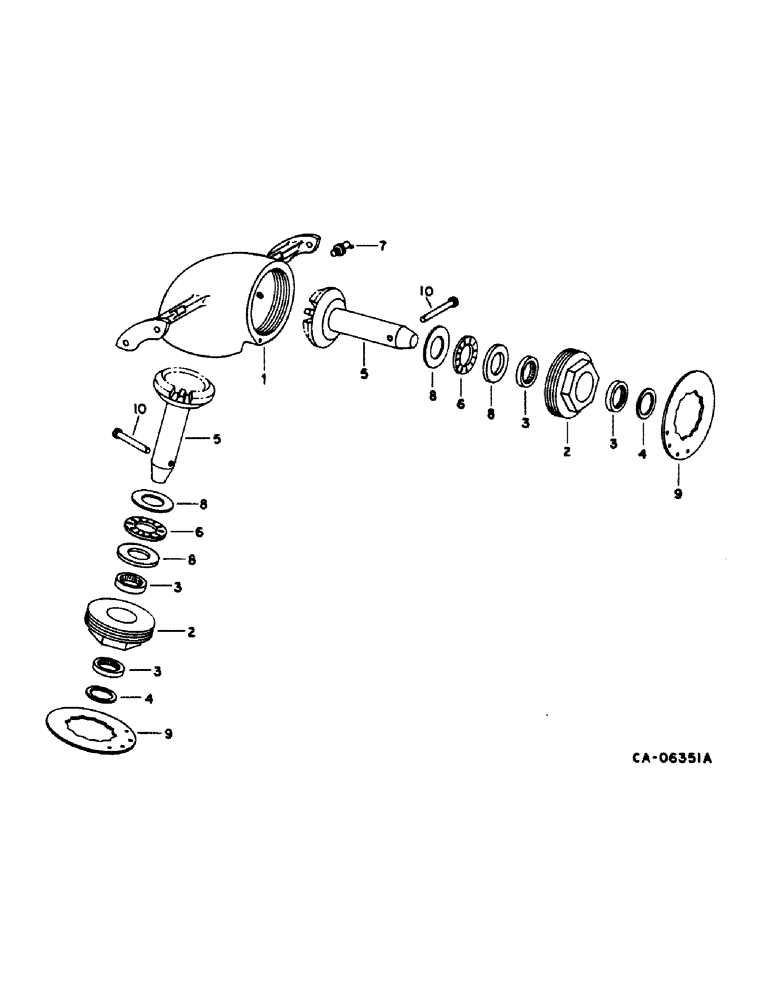

Запчасти Case IH 1420 (26-08) - GRAIN TANK, UNLOADER UPPER GEAR CASE ASSY Grain Tank

1324931C91

HOUSING

CASE ASSY, unloader upper gears, replaces 178189C91, Includes: bolt, washer and Ref. nos. 1 thru 9

1шт.

1324931C91R

REMAN-GEARBOX

1420 (1/80-12/82)

1шт.

1324931C91C

CORE-GEARBOX

Return Number

1шт.

21335R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

1

HOUSING, unloader gears, not serviced separately, order case assy, Includes: bolt and washer

1шт.

21335R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

178135C91

BEARING HOUSING,1.6255" ID x 1.75"

FITTING ASSY, unloader upper gear brg, Includes: Ref. nos. 3 and 4

2шт.

3

168732C91

CASING, BEARING ROLL,34.925 mm ID x 41.275 mm OD x 12.7 mm

BEARING, upper gear brg hsg.

4шт.

4

179014C91

OIL SEAL

upper gear bearing housing oil

2шт.

5

1324929C1

GEAR

unloader upper case, 18 T, replaces 1309380C1

2шт.

6

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

unloader upper gear

2шт.

7

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4 45D taper drive thd lub

1шт.

8

607147R1

WASHER

WASHER, upper gear brg thrust

4шт.

9

178138C1

RETAINER

gear housing lock, Includes: bolt and washer

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

1327766C1

PIN

1/2 x 3-1/2 hardened, Includes: pin

2шт.

28346R1

COTTER PIN,3/16" x 1", Stainless

Pin, Split (Cotter), 3/16" x 1", Stainless

1шт.
