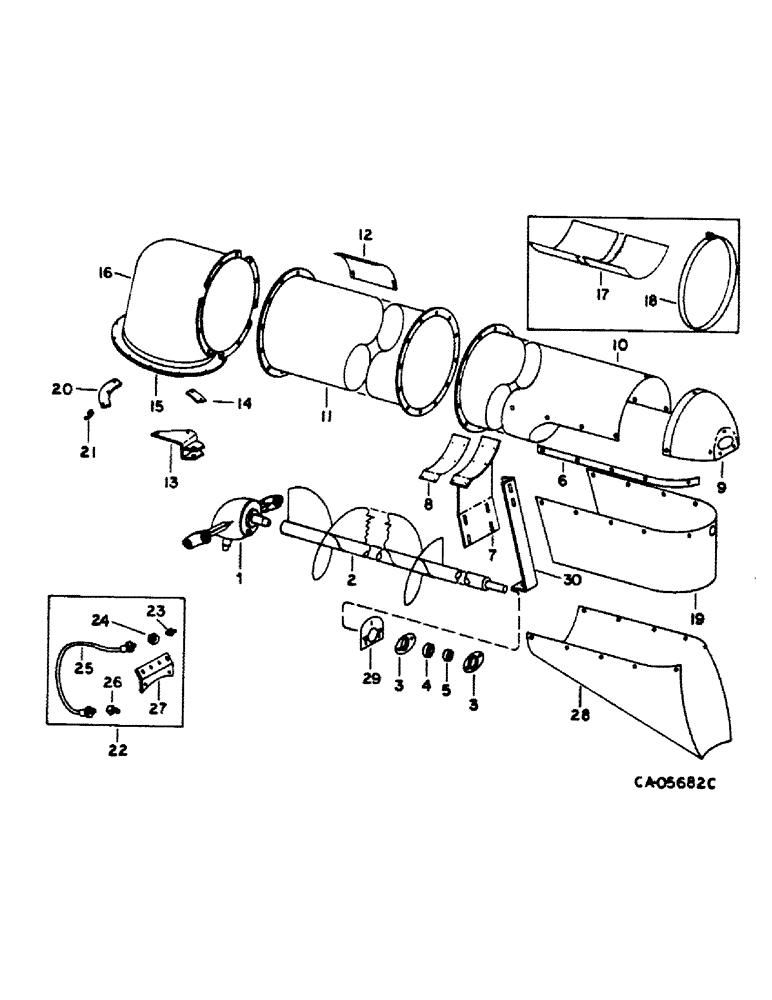

Запчасти Case IH 1420 (26-06) - GRAIN TANK, GRAIN TANK UNLOADER UPPER Grain Tank

1

HOUSING ASSY, unloader upper gears, refer to this group under unloader upper gear case assy

1шт.

2

192845C2

AUGER

ASSY, unloader horizontal, standard

1шт.

3

F9417

FLANGE

unloader auger outer brg, replaces 612031R1, Includes: nut, bolt and washer

2шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

4

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING, unloader auger outer ball

1шт.

5

564853R11

COLLAR

W/SET SCREW, auger outer bearing

1шт.

6

STRIP, rear tube downspout, furnish the following (NSS), Includes: washer, nut and screw

2шт.

20824R1

WASHER

.344 x 1.500 x .054

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

195188C1

SADDLE ASSY.

SADDLE ASSY, unloader tube, Includes: nut, screw and washer

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

477589R1

WASHER

.406 x 1.500 x .105

1шт.

8

195191C1

STRIP

unloader tube saddle, Includes: nut and screw

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

9

182837C1

SUPPORT TUBE

CAP, unloader rear tube, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

195342C1

TUBE

ASSY, horizontal auger rear, not perforated

1шт.

10

195344C1

TUBE

ASSY, horizontal auger rear, perforated

1шт.

11

192838C1

TUBE

ASSY, horizontal auger front, standard, Includes: screws and nuts

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

12

178158C1

PLATE

unloader front tube inspection

1шт.

13

191121C2

SUPPORT ASSY.

SUPPORT ASSY, cylinder front, Includes: bolt, nuts and washer

1шт.

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2 type 8

1шт.

9418646

NUT,7/16"-14, G8

7/16 type 8

1шт.

366863C1

LOCK WASHER

WASHER, 7/16 rib lock

1шт.

25960R1

JAM NUT,Jam, 7/16"-14, G8

7/16 phc jam type 8

1шт.

14

193472C2

PLATE

BAR, unloader tube keeper, Includes: nut, washer and bolt

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

15

193418C3

FLANGE

upper tube elbow

1шт.

16

193417C93

TUBE

ELBOW ASSY, unloader upper tube, includes ref. no. 15

1шт.

17

178165C2

COVER

auger tube section, for use w/perforated tube

1шт.

18

178166C1

CLAMP

auger tube section, for use w/perforated tube and cover, Includes: bolt, nut and washer

4шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

(Not used this application)

1шт.

20

186657C2

SUPPORT

front keeper, Includes: bolt, nut and washer

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

(Not used this application)

1шт.

22

BANK LUB, see details

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

24

F53473

LOCK NUT,1/8-27 NPSM

lub hose, replaces 581873R1

1шт.

25

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Lube 0.14" ID x 22.00"

2шт.

25

937781R91

HOSE

lub, 27 in. - 685.8MM

1шт.

25

937782R91

HOSE

lub, 31 in. - 787.4MM

1шт.

26

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING, 1/4-28 sae 45 deg

1шт.

27

185134C1

SUPPORT

lub fitting

1шт.

28

186602C1

SPOUT, DISCHARGE

SPOUT, unloader rear tube down

1шт.

29

182838C1

SUPPORT

cap outer bearing, Includes: screw and nut

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

30

1319223C1

SUPPORT

unloader saddle, Includes: bolt and nut

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
