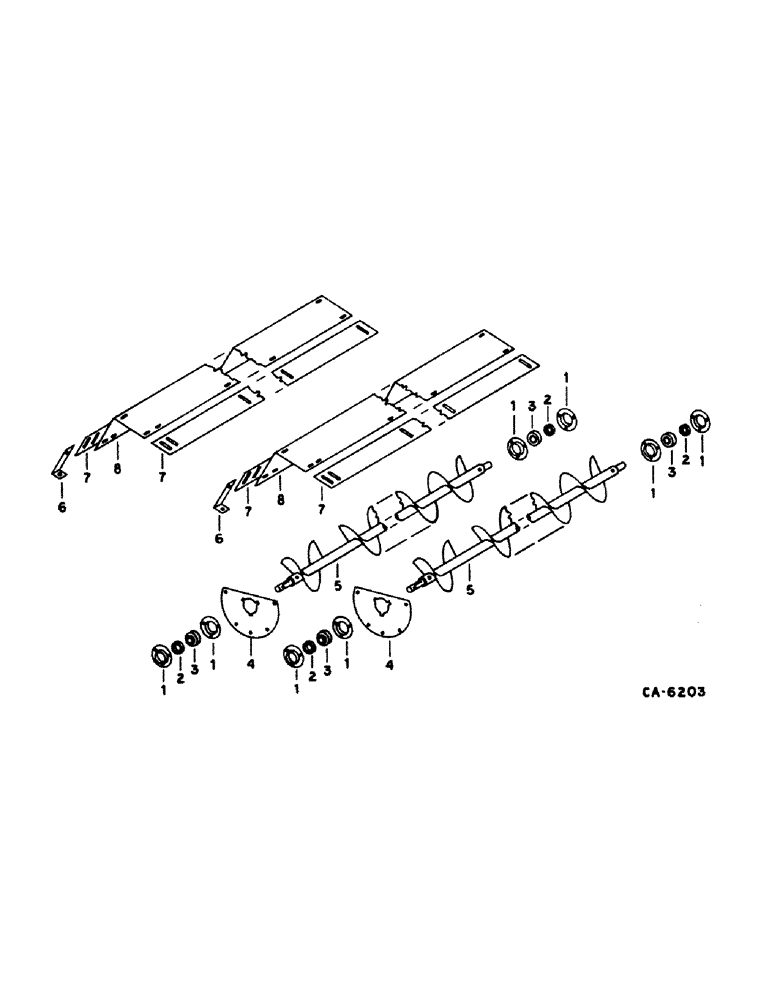

Запчасти Case IH 1420 (26-03) - GRAIN TANK, GRAIN TANK BOTTOM AUGER Grain Tank

1

462360R1

FLANGED BEARING

bottom auger bearing, Includes: nut and screw

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

455102R21

COLLAR

W/SET SCREW, bottom auger bearing

4шт.

3

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

bottom auger

4шт.

4

192789C1

RETAINER

bottom auger LH brg, Includes: nut and screw

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

194685C1

WORM

AUGER ASSY, grain tank bottom

2шт.

6

192779C1

SUPPORT

auger cover, Includes: nut and screw

16шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

194703C1

BAR

auger cover extension

4шт.

8

194702C1

ANGLE

auger cover, Includes: nut and screw

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.
