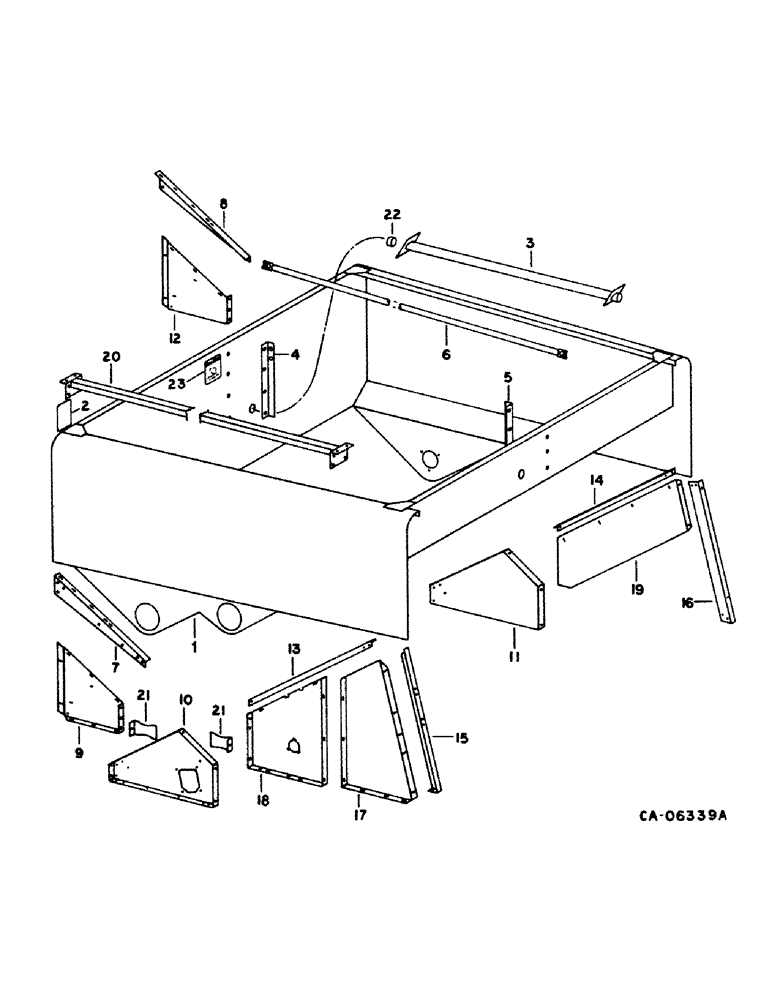

Запчасти Case IH 1420 (26-01) - GRAIN TANK Grain Tank
№
Артикул
Название
Примечание
Количество
1
1319632C93
TANK
ASSY, grain, includes ref no. 2 and 23, replaces 1303103C91
1шт.
2
1319494C1
PRODUCT GRAPHIC
caution, replaces 188197C3, small
1шт.
3
182785C1
TUBE ASSY.
TUBE ASSY, grain tank wiring, Includes: screw and nut
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
4
192765C1
SUPPORT
ANGLE, grain tank tie front, Includes: screw and nut
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
5
181682C2
SUPPORT
ANGLE, grain tank tie rear, replaces 192766C1, Includes: screw and nut
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
6
192767C1
ROD
grain tank, Includes: screw and nut
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
7
192768C2
SUPPORT
grain tank diagonal LH, Includes: screws and nuts
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
8
192769C2
SUPPORT
grain tank diagonal RH, Includes: screws and nuts
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
9
192770C3
COVER
SUPPORT, grain tank front LH, Includes: screws, nuts and bolt
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
155807C1
BOLT,Hex Serr, 5/16" - 18 x 1"
1шт.
10
192771C2
SUPPORT
grain tank center LH, Includes: screws and nuts
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
11
192772C2
SUPPORT
grain tank center RH, Includes: screws and nuts
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
12
186448C1
COVER
grain tank front RH, Includes: screws and nuts
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
13
194707C1
ANGLE
tank rear bottom LH, Includes: nuts and screws
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
14
194708C1
ANGLE
tank rear bottom RH, Includes: nuts and screws
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
15
194710C1
SUPPORT
grain tank rear vertical LH, Includes: screw and nut
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
16
194711C1
SUPPORT
grain tank rear vertical RH, Includes: screw and nut
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
17
194709C1
SUPPORT
grain tank rear LH, Includes: nut and screw
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
18
193471C1
SUPPORT
grain tank rear, Includes: nuts and screws
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"
1шт.
19
194706C1
SUPPORT
grain tank RH, Includes: nut and screws
1шт.
25756R1
SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"
SCREW, 5/16 x 5/8 pln h/whd tap
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
20
194704C1
SUPPORT
ASSY, grain tank tie, Includes: screw and nut
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
21
193531C1
SUPPORT
filler, Includes: screw and nut
4шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
22
179970C1
PAD
center harness wiring tube seal
2шт.
23
1319495C1
PRODUCT GRAPHIC
caution, large
1шт.
Выбрано товаров: 87
