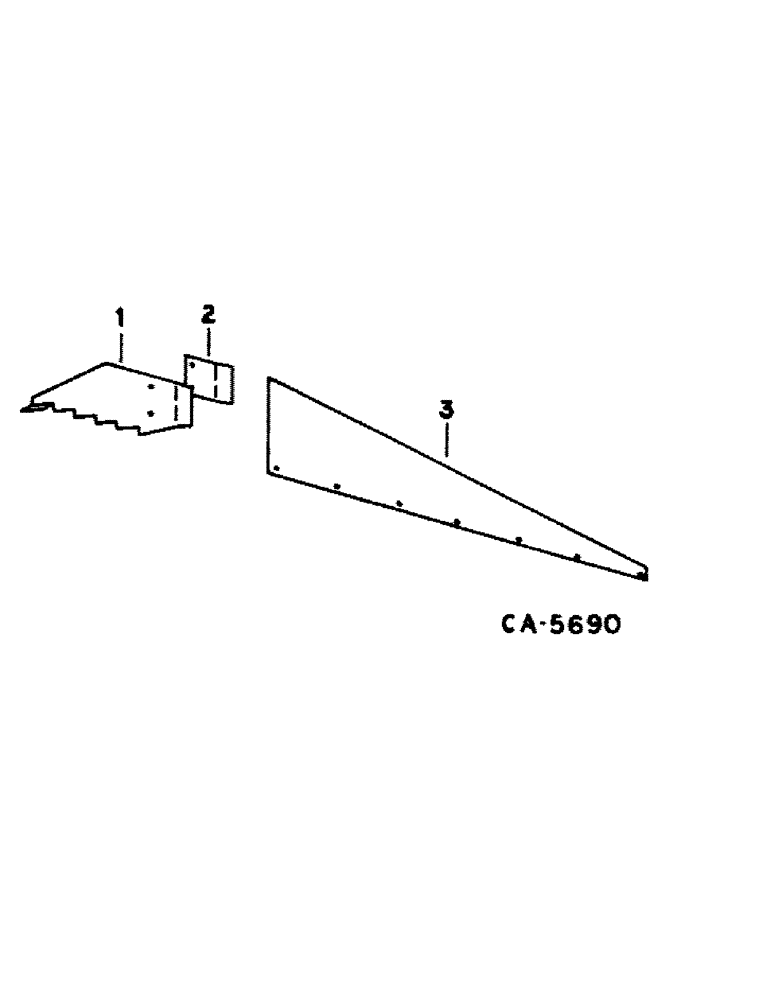

Запчасти Case IH 1420 (23-08) - AUGER BED, SHOE AND SHOE SIEVE, GRAIN PAN SIDE HILL DIVIDERS Grain Pan, Shoe & Shoe Sieve

180771C91

KIT

PACKAGE, grain pan dividers, parts accessory, consists of ref. nos. 1, 2, and 3

1шт.

1

185115C1

DIVIDER

chaffer front pan, Includes: nut and screw

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

2

185116C1

RETAINER

chaffer divider, Includes: nut and screw

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

3

185114C1

DIVIDER

chaffer sieve, Includes: nut and screw

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.
