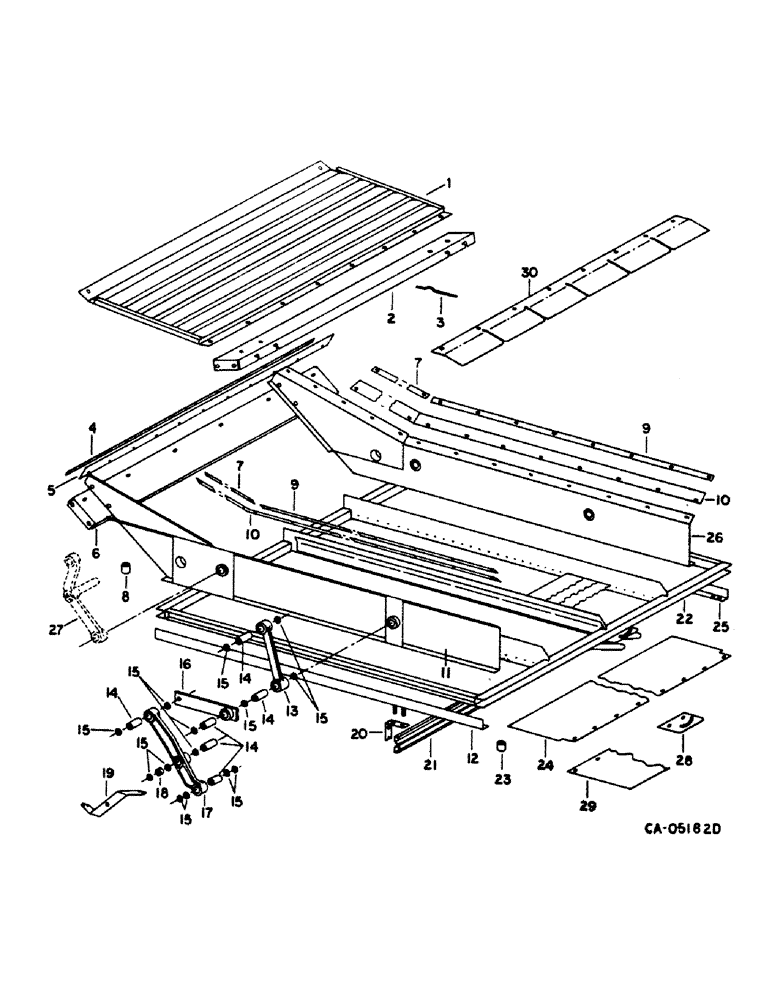

Запчасти Case IH 1420 (23-07) - AUGER BED, SHOE AND SHOE SIEVE, CHAFFER SIEVE Grain Pan, Shoe & Shoe Sieve

1

183059C2

PANEL ASSY.

PAN ASSY, grain, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

183061C2

SUPPORT

chaffer pan support, Includes: bolt and nut

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

175114C1

FINGER,Formed, 1 Prong, 264mm L

auger bed

10шт.

4

183062C1

BAR

front chaffer frame seal, Includes: screw

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

5

183063C1

SEAL

chaffer frame front

1шт.

6

183065C1

SUPPORT

chaffer frame, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

192052C2

BAR

chaffer frame seal, Includes: screw

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

8

186646C1

SPACER,5/8" Tube x 15/16"

chaffer sieve support front, Includes: bolt, nut and washer

2шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3/8 x 2-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

9

192053C1

BAR

chaffer frame seal, Includes: screw

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

10

192051C3

SEALING STRIP

chaffer frame

2шт.

11

185430C4

RAIL

ASSY, chaffer left

1шт.

12

186369C1

ANGLE

ANGEL, chaffer support LH

1шт.

13

175131C91

ARM ASSY.

ARM ASSY, rear hanger, Includes: bolts, nut and Ref. no. 14

2шт.

25390R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 8

5/8 x 6-1/2 type 8

1шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

14

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

rear hanger arm

1шт.

15

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

rear hanger arm, Includes: washer

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

16

188010C91

ARM ASSY.

ARM ASSY, shoe rear, Includes: Ref. no. 14

2шт.

17

192941C92

LEVER ASSY.

LEVER ASSY, shoe, Includes: washer, nut and bolts

2шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

18724R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT, 5/8 x 4 crg type 1

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

21714R1

WASHER

.906 x 1.500 x .105

1шт.

18

168250C1

RING

SPACER, shoe and chaffer lever

2шт.

19

193107C2

SUPPORT

shoe lever LH

1шт.

19

193108C2

SUPPORT

shoe lever RH, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

186674C1

ANGLE

ANGEL, rear deflector, Includes: screw, nut and washers

1шт.

156466

SCREW,Cross Flat Hd, 5/16" - 18 x 1"

1шт.

120376

NUT,5/16"-18, G5

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

183064C1

CHANNEL

rear, Includes: bolt, nut and washer

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

1330682C1

GRAIN SIEVE

SIEVE ASSY, 1-5/8 closz slat chaffer, corn standard (Replaces 172836C3)

1шт.

22

1330683C1

GRAIN SIEVE

SIEVE ASSY, 1-1/8 adj chaffer, grain & rice standard (Replaces 172869C3)

1шт.

22

1330681C1

GRAIN SIEVE

SIEVE ASSY, corn slat (Replaces 172835C2)

1шт.

22

1319091C1

SIEVE

peterson chaffer, parts accessory, Includes: nut, bolt and washers

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

23

612233R1

SPACER,5/8" Tube x 1 1/8"

chaffer sieve support rear, Includes: bolt, nut and washers

2шт.

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

3/8 x 2-3/4 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

24

195187C1

SEALING STRIP

chaffer, Includes: bolt, nut and washer

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

20824R1

WASHER

.344 x 1.500 x .054

1шт.

25

186370C1

ANGLE

chaffer support RH

1шт.

26

185431C4

RAIL

ASSY, chaffer right

1шт.

27

LEVER ASSY, chaffer drive hanger, refer to this group under shaker shaft and auger drive

2шт.

28

186675C1

ADJUSTING PLATE

chaffer lever, Includes: bolt and nut

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 crg type 1

1шт.

126177

WING NUT

NUT, 1/4 wing

1шт.

29

Not used this application

1шт.

30

1319257C1

SUPPORT

chaffer finger cover

1шт.
