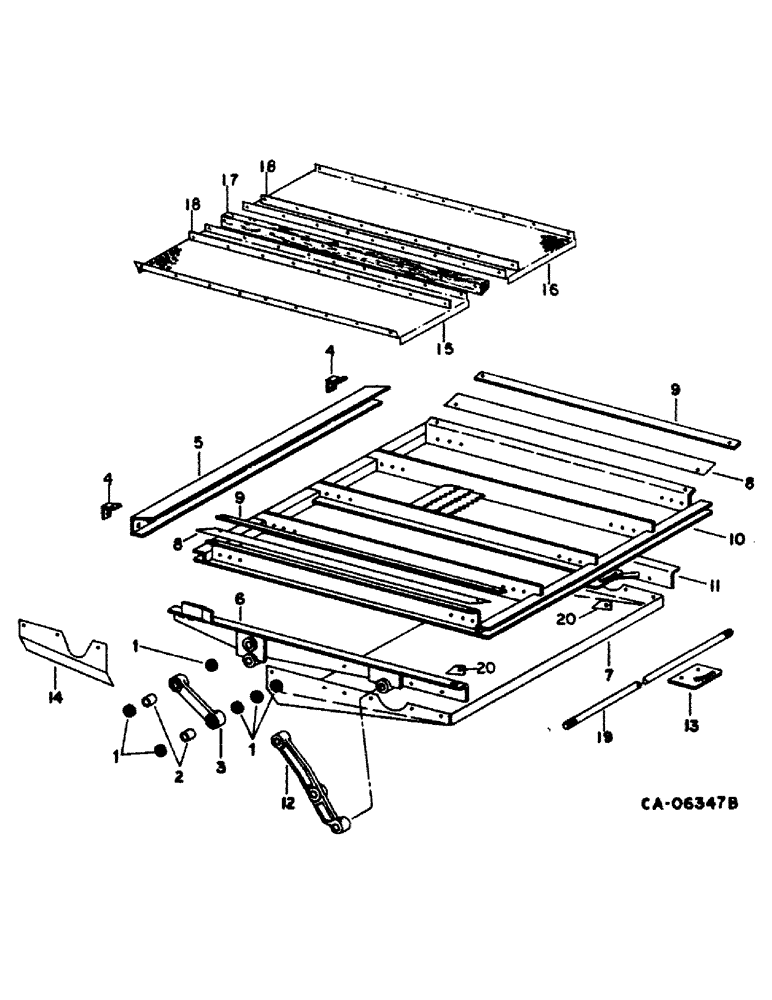

Запчасти Case IH 1420 (23-05) - AUGER BED, SHOE AND SHOE SIEVE, SHOE SIEVE Grain Pan, Shoe & Shoe Sieve

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

shoe hanger arm bushing

12шт.

2

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe hanger arm

4шт.

3

175160C91

LEVER

HANGER ASSY, shoe front, Includes: bolts, nut and Ref. no. 2

2шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 crg type 1

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

4

185498C2

CLIP

shoe front support to 5977

1шт.

4

182684C1

CLIP

shoe front support, Includes: nut, screw and washer, Start Serial: 5978

1шт.

120376

NUT,5/16"-18, G5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

1319237C1

ANGLE

SUPPORT, she front cross, furnish package 1300740C91, Includes: nut, screw and washer 5978 to 5977

1шт.

120376

NUT,5/16"-18, G5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

1302070C3

SUPPORT

ASSY, shoe, LH, furnish package 1300740C91 5978 to 5977

1шт.

7

1319213C1

TROUGH

BOTTOM ASSY, shoe, replaces 193762C1, for S/N and above, for machines with S/N and below furnish package 1319276C9, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

192192C1

SEALING STRIP

shoe sieve

2шт.

9

192193C1

BAR

shoe sieve seal, Includes: nut and screw

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

10

193757C1

GRAIN SIEVE

SIEVE ASSY, shoe, Includes: bolt, nut and washer

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

10

186824C1

GRAIN SIEVE

SIEVE, shoe 1/10 rd holes, parts accessory

1шт.

10

186825C1

GRAIN SIEVE

SIEVE, shoe 7/32 rd holes, parts accessory

1шт.

10

186826C1

GRAIN SIEVE

SIEVE, shoe 3/8 rd holes, parts accessory

1шт.

10

186827C1

GRAIN SIEVE

SIEVE, shoe 1/2 rd holes, parts accessory

1шт.

10

1310181C1

GRAIN SIEVE

SIEVE, shoe 1-5/8 in. closz slat, parts accessory

1шт.

11

1302071C3

SUPPORT

ASSY, shoe, RH,furnish package 1300740C91 5978 to 5977

1шт.

12

LEVER ASSY, shoe, refer to this group under chaffer sieve

1шт.

13

186675C1

ADJUSTING PLATE

shoe lever, Includes: bolt and nut

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 crg type 1

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

1шт.

14

1302335C2

SUPPORT

BAFFLE, forward shoe return LH

1шт.

14

1302336C2

SUPPORT

BAFFLE, forward shoe return RH, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

1319288C1

SCREEN

perforated side section, used with sieve assy, 193757C1

2шт.

16

1319289C1

SCREEN

perforated mid section

2шт.

17

1319284C1

BAR

shoe sieve, used with sieve assy, 193757C1

1шт.

18

1319300C1

BAR

fastener backing, used with sieve assy, 193757C1, Includes: bolts, nut and washer

6шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

1319218C1

ROD

return pan bottom rear, Includes: nut

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

20

1319219C1

PLATE

BAR, shoe return pan filler, Includes: screw and nut

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1300740C92

STRIPPER PACKAGE

PACKAGE, shoe supports, S/N 5977 and below, consists of ref. nos. 4, 5, 6, and 11

1шт.

1319280C91

PACKAGE

alfalfa, consists of

1шт.

1319257C1

SUPPORT

chaffer finger cover

1шт.

1319288C1

SCREEN

perforated side section

2шт.

1319289C1

SCREEN

perforated mid section

2шт.

1319284C1

BAR

shoe sieve

1шт.

1319300C1

BAR

fastener backing, Includes: bolts, nut and washer

6шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Instructions (NSS) 1/4"

1шт.

1319276C91

BOTTOM

PACKAGE ASSY, shoe return with increased slope, consists of

1шт.

1319213C1

TROUGH

BOTTOM ASSY, shoe return pan

1шт.

1319218C1

ROD

return pan bottom rear, Includes: nut

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

1302335C2

SUPPORT

forward shoe return, LH

1шт.

1302336C2

SUPPORT

forward shoe return, RH, instructions (NSS)

1шт.
