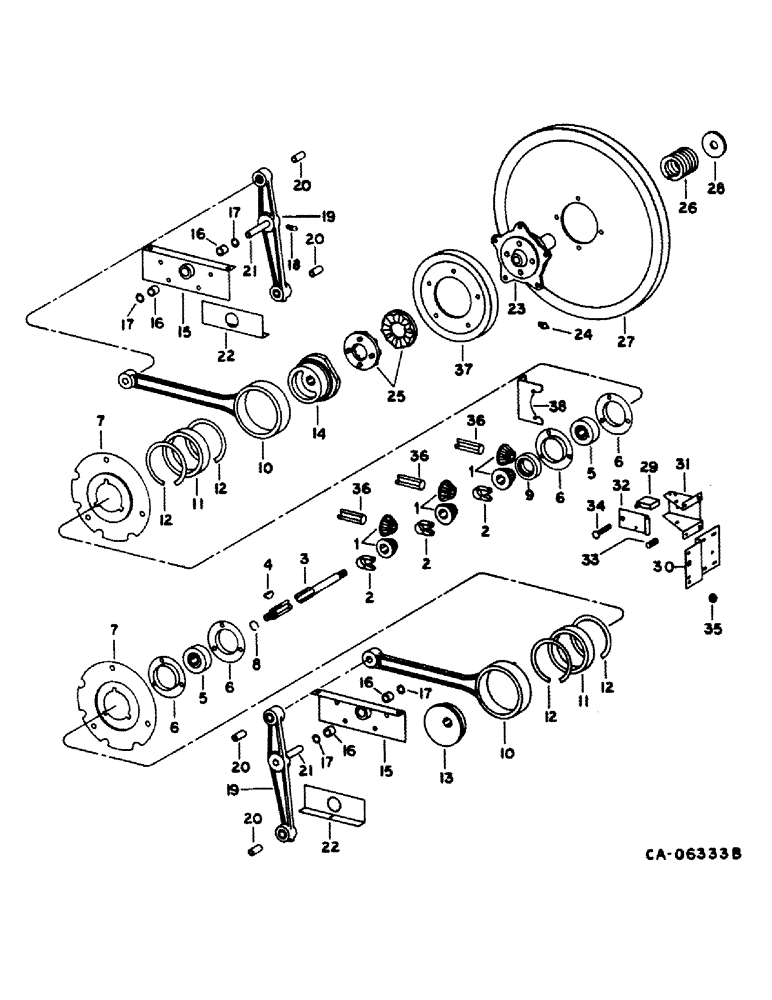

Запчасти Case IH 1420 (23-03) - AUGER BED, SHOE AND SHOE SIEVE, SHAKER SHAFT AND AUGER DRIVE Grain Pan, Shoe & Shoe Sieve

1

185411C1

GEAR-SET

GEAR SET, auger drive, 14 T, matched set to 5500

3шт.

1

1300639C1

GEAR-SET

GEAR, set, auger drive, 14T, Includes: pin, Start Serial: 5501

3шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

2

225265R1

CLAMP

auger bed gear, Includes: bolt and nut

3шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

1шт.

3

183052C1

SHAFT

shaker, Includes: nuts and washers

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4 cod p/t lock type 5

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

23245R1

WASHER

.781 x 1.750 x .164

1шт.

22482R1

WASHER

1.406 x 2.250 x .105

1шт.

4

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

5

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, shaker shaft

2шт.

6

180955C1

FLANGED BEARING,0.375"

FLANGE, shaker shaft bearing, Includes: screw, nut and washer

4шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

193978C1

RETAINER

shaker shaft

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

575186R1

SNAP RING

RING, shaker shaft pinion

2шт.

9

935856R1

BUSHING

shaker shaft pitman

1шт.

10

186549C1

PITMAN

shaker shaft

2шт.

11

193132C91

BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W

BEARING, shaker shaft pitman

2шт.

12

892775C1

SNAP RING,#475, 5.070", Int

RING, brg snap, replaces 630508C1

4шт.

13

183053C2

ECCENTRIC

CAM, shaker shaft pitman drive LH

1шт.

14

191429C2

CAM

shaker shaft pitman drive RH

1шт.

15

194649C91

SUPPORT ASSY.

SUPPORT ASSY, front hanger, Includes: bolt, nut and Ref. nos. 16 & 17

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

16

551139R91

BEARING, NEEDLE

BEARING, front hanger support

4шт.

17

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

front hanger support bearing

4шт.

18

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4 45 deg lub

2шт.

19

191432C91

LEVER ASSY.

LEVER ASSY, chaffer drive hanger, Includes: bolts, nut, washers and Ref. nos. 20 and 21

2шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

3/8 x 4-1/2 type 8

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 x 1.25 x .120 gage znd

1шт.

20

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

chaffer drive hanger arm

1шт.

21

193133C1

SHAFT

hanger arm, Includes: pin and washers

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

21714R1

WASHER

.906 x 1.500 x .105

1шт.

21761R1

WASHER

.906 x 1.500 x .054

1шт.

22

186684C1

SUPPORT

seal chaffer rail, Includes: bolt and washers

2шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

23

1303136C1

HUB

shaker shaft driven slip clutch

1шт.

24

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 str self-tap lub

2шт.

25

B12170

RATCHET,Clutch Slip, 94.49mm

shaker drive slip clutch

2шт.

26

19302K

SPRING

shaker drive slip clutch

1шт.

27

PULLEY, shaker shaft driven, refer to group 20 under belt drive RH

1шт.

28

167521H1

SPRING WASHER

slip clutch retainer

1шт.

29

574649R91

SWITCH

ASSY, auger alarm, Includes: nut, screw and washers

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

no. 6 x 1 znp p/hdcr mach

1шт.

131044

LOCK WASHER

Lock, #6

1шт.

NLS

NO LONGER SERVICED

.156 x .375 x .036

1шт.

30

192746C1

SUPPORT

auger alarm switch, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

31

167323C1

SUPPORT

auger alarm switch, Includes: nut, screw and pins

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2.500 hd type 1

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

32

167324C1

HINGE

STRIP, auger alarm switch, Includes: pins

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23099R1

HEADED PIN,5/16" x 3"

PIN, 5/16 x 3 znp std-hd

1шт.

33

M296

SPRING

alarm switch strap return

1шт.

34

194304C1

STOP

ASSY, auger alarm switch, Includes: nut

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

35

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

5/16 x 23/32 x 7/16 d/c rub

1шт.

36

AUGER ASSY, refer to this group under auger bed

3шт.

37

PULLEY, straw spreader drive, refer to group 20 under straw spreader

1шт.

38

186589C1

SUPPORT

auger drive center bearing, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.
