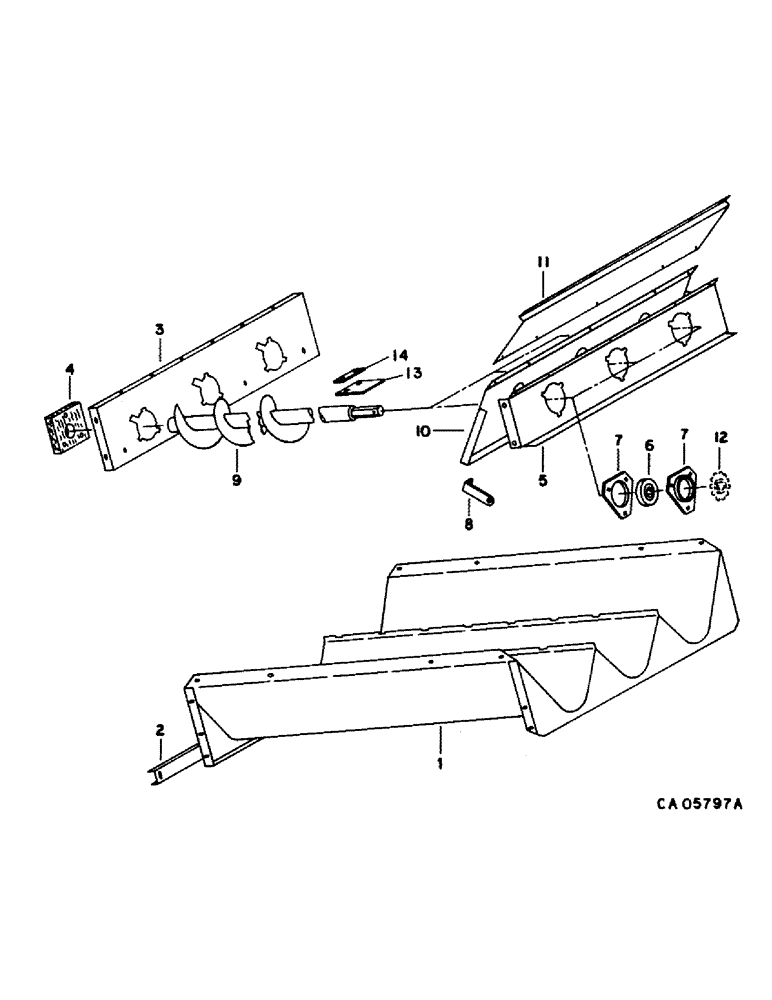

Запчасти Case IH 1420 (23-01) - AUGER BED, SHOE AND SHOE SIEVE, AUGER BED Grain Pan, Shoe & Shoe Sieve

1

183068C1

TROUGH ASSY.

TROUGH ASSY, auger, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

183077C1

COVER

auger trough cleanout

1шт.

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

cleanout cover wing

1шт.

3

181382C1

SUPPORT

front auger, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

193414C2

BOARD

front auger brg, Includes: washer, bolt and nut

3шт.

120394

WASHER,3/8", SAE

WASHER, /406 x .812 x .051

1шт.

27451R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT, 3/8 x 2-1/4 crg type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

5

183074C1

SUPPORT

auger drive gears, to 5500

1шт.

5

1310358C2

SUPPORT

auger drive gears, Includes: nut and screw, Start Serial: 5501

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, auger drive, to 5500

3шт.

6

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING, auger drive, Start Serial: 5501

3шт.

7

180955C1

FLANGED BEARING,0.375"

FLANGE, auger drive bearing, to 5500

6шт.

7

571424R1

FLANGE

auger drive bearing, Includes: screw and nut, Start Serial: 5501

6шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

193554C1

SUPPORT

pan

2шт.

9

193398C1

AUGER

ASSY, RH rotation to 5500

3шт.

9

1308541C1

AUGER

ASSY, RH rotation, Includes: washers, Start Serial: 5501

3шт.

21290R1

WASHER

1.344 x 2.000 x .054

1шт.

131019

SWEEP

1.062 x 2.000 x .108

1шт.

10

183782C1

SUPPORT

deflector, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

11

181441C1

SUPPORT

rotor to auger drive rear, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

GEAR, auger drive, 17 T, matched set, refer to this group under shaker shaft and auger drive

1шт.

13

1302112C1

STRIP

auger bed grain spreader

1шт.

14

1302113C1

BAR

grain spreader strip, Includes: clamp

1шт.

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

no. 28 type f hose

1шт.

1300666C91

KIT

PACKAGE, auger bed grain spreader, parts accessory, consists of

1шт.

1302112C1

STRIP

1шт.

1302113C1

BAR

1шт.

995220R1

CLAMP

instructions (NSS)

1шт.

1300638C1

KIT

PACKAGE, auger adapter, to adapt swedge tube augers, consists of auger bearing support (NSS), bar (NSS), bolt (NSS), gear, 14 T (NSS), instructions (NSS)

1шт.

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING, auger

1шт.

571424R1

FLANGE

auger bearing

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
