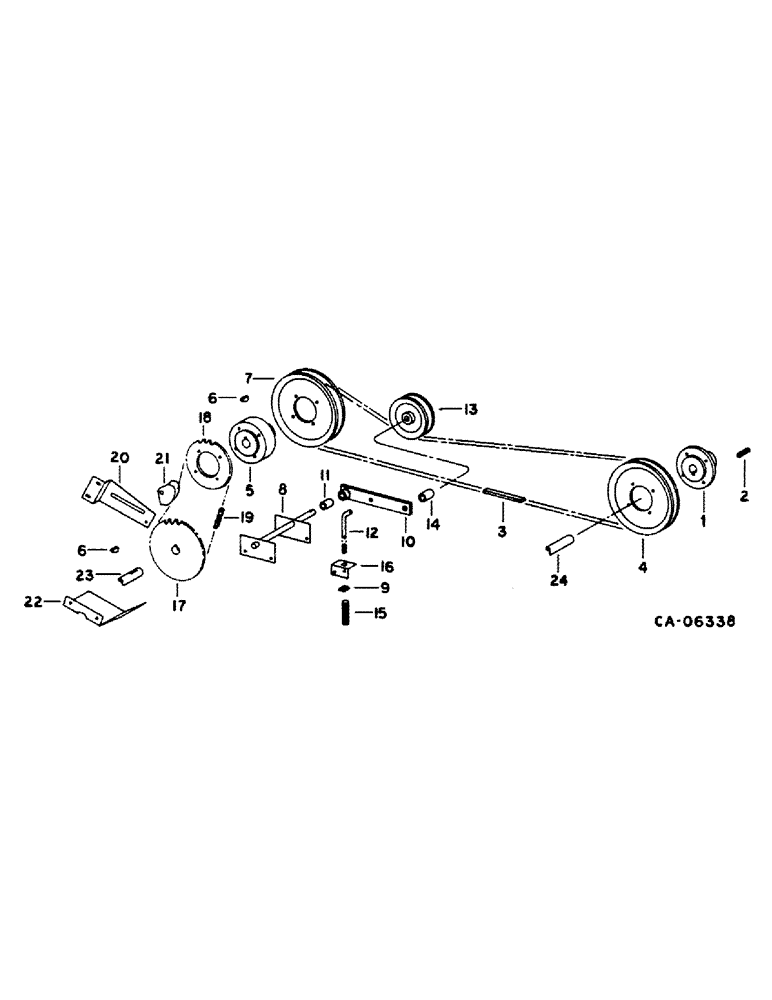

Запчасти Case IH 1420 (25-14) - GRAIN AND TAILINGS ELEVATORS, TAILINGS ELEVATOR DRIVE Elevators

1

182650C1

HUB

tailings elevator drive, Includes: bolt, washer, screw and nuts

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 znp sq/hd c/pt set

1шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

1шт.

2

586879R1

KEY

5/16 x 2 sq parallel, replaces 581306R1

1шт.

3

674965R1

V-BELT,0.879" W x 105.19" L

Tailings Elevator Drive, Replaces 159588R1 0.879" W x 105.19" L

1шт.

4

1303018C1

PULLEY ASSY.

PULLEY ASSY, tailings elevator drive, 9.75 in. OD, 247.8mm OD, Includes bolt, washer and nut

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

5

182563C1

HUB

tailings elevator driven, Includes: bolt, nut and washer

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

1303020C1

PULLEY

tailings elevator driven, 10.5 in. OD, 266.7 mm OD, Includes: bolt, nut and washer

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5/16 x 2-1/2 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

181321C1

PIVOT ASSY.

PIVOT ASSY, tightener, Includes: pin, washer, screw and nut

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

178375R1

WASHER

.781 x 1.250 x .054

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

194652C1

PIVOT

BAR, pivot tightener

1шт.

10

181318C91

ARM ASSY.

ARM ASSY, tightener, includes ref no. 11

1шт.

11

574859R1

BUSHING

tightener arm, Includes: pin, nut and washers

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

13

181126C91

PULLEY

tightener tailings elevator, 6.0 in. OD, 152.4mm OD

1шт.

14

UA17298

SPACER,7/8" Tube x 1 1/16"

tightener pulley, Includes: bolt, nut and washers

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

130999

WASHER,5/8"

.688 x 1.750 x .108

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

15

PO23

SPRING

tightener

1шт.

16

181324C1

SUPPORT

spring anchor

1шт.

17

181179C1

SPROCKET ASSY.

SPROCKET ASSY, tailings delivery auger, 33 T, Includes: screw and nut

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 znp sq/hd c/pt set

1шт.

120376

NUT,5/16"-18, G5

1шт.

18

182564C1

DRIVE SPROCKET

SPROCKET, auger drive, 33 T

1шт.

19

CHAIN ASSY, auger drive, use 63 links from 10 ft roll marked 1790D, two offset links 1303D & one connecting link 1301D

1шт.

1301D

CHAIN LINK

LINK, #40 single pitch connecting

1шт.

1303D

LINK

#40 single pitch offset

1шт.

20

181295C2

BAR

chain tightener, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

21

936878R1

BLOCK

tightener, Includes: bolt, nut and washer

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22

1303244C1

SHIELD

tailings delivery drive

1шт.

23

SHAFT, auger, refer to this group under tailings elevator

1шт.

24

SHAFT, elevator jackshaft, refer to this group under elevator jackshaft drive

1шт.
