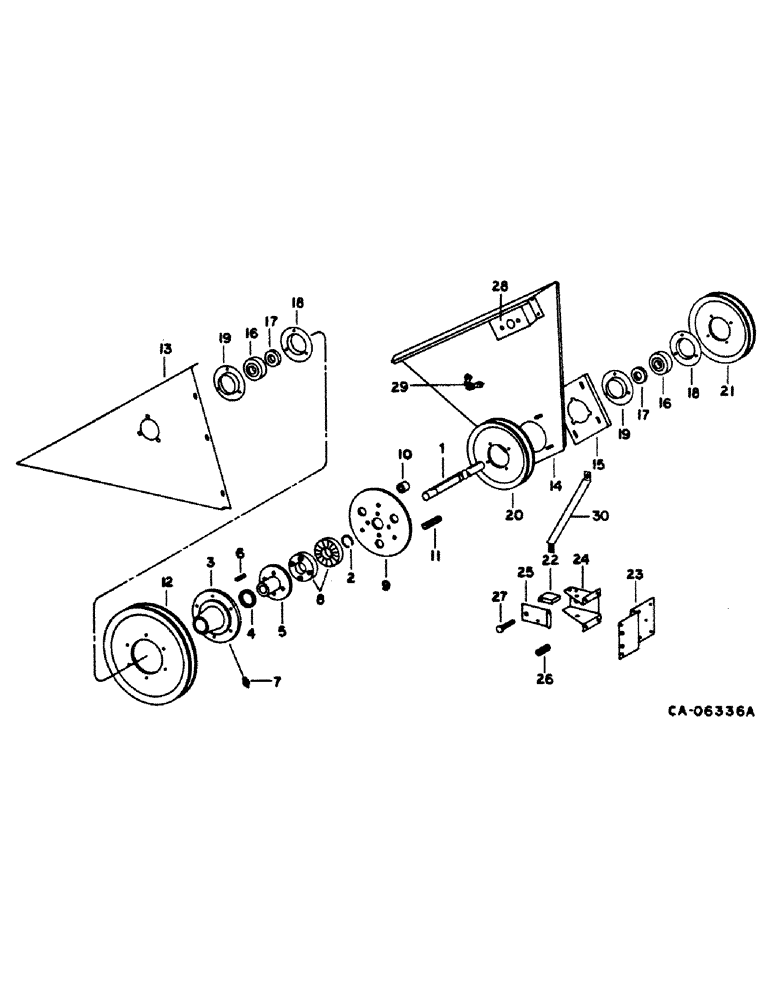

Запчасти Case IH 1420 (25-10) - GRAIN AND TAILINGS ELEVATORS, ELEVATOR JACKSHAFT DRIVE Elevators

1

194354C1

SHAFT

elevator drive, Includes: washer

1шт.

22182R1

WASHER

1.281 x 2.000 x .033

1шт.

2

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

3

183210C91

HUB

ASSY, drive slip clutch, Includes: bolt, nut, washers and Ref. no. 4

1шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8 x 6 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

4

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

slip clutch hub

2шт.

5

183212C1

HUB ASSY.

HUB ASSY, drive slip clutch

1шт.

6

586879R1

KEY

5/16 x 2 sq parallel

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 lub

2шт.

8

B12170

RATCHET,Clutch Slip, 94.49mm

elevator drive slip clutch

2шт.

9

194835C2

RETAINER

elevator drive slip clutch

1шт.

10

194836C1

BUSHING

elevator jackshaft, Includes: bolt, nut and washer

3шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

PO177

SPRING

elevator drive slip clutch

3шт.

12

PULLEY ASSY, jackshaft driven, refer to group 20 under belt drive RH side

1шт.

13

183204C1

SUPPORT ASSY.

SUPPORT ASSY, elevator jackshaft inner, Includes: screws and nuts

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

14

193839C1

SUPPORT

outer elevator jackshaft, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

192138C2

BRACKET

CHANNEL, jackshaft outer brg, Includes: screws and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

16

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

BEARING ASSY, elevator jackshaft

2шт.

17

455104R11

COLLAR

W/SET SCREW, jackshaft bearing

2шт.

18

939462R91

FLANGE

w/lub fitting jackshaft bearing

1шт.

19

473092R1

FLANGED BEARING

jackshaft brg, Includes: screw and nut

2шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20

PULLEY, grain elevator drive, refer to this group under grain elevator drive

1шт.

21

PULLEY TAILINGS ELEVATOR DRIVE, refer to this group under tailings elevator drive

1шт.

22

574649R91

SWITCH

ASSY, elevator alarm, Includes: screw, nut and washers

1шт.

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

no. 6 x 1 znp p/hdcr mach

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

492-11006

LOCK WASHER,#6

Lock, #6

1шт.

NLS

NO LONGER SERVICED

.156 x .375 x .036

1шт.

23

192746C1

SUPPORT

elevator alarm switch, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

24

167323C1

SUPPORT

elevator alarm switch, Includes: screw, nut and pins

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2.500 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

25

167324C1

HINGE

STRIP, elevator slip clutch, Includes: pins

2шт.

23099R1

HEADED PIN,5/16" x 3"

PIN, 5/16 x 3 znd std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

26

M296

SPRING

elevator switch return

2шт.

27

19765R1

SCREW

BOLT ASSY, clutch control arm, replaces 570028R91, Includes: nut

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

28

181317C1

CHANNEL

belt tightener support, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

29

182562C1

SUPPORT

tightener rod, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

30

1319249C1

SUPPORT

elevator jack shaft outer

1шт.
