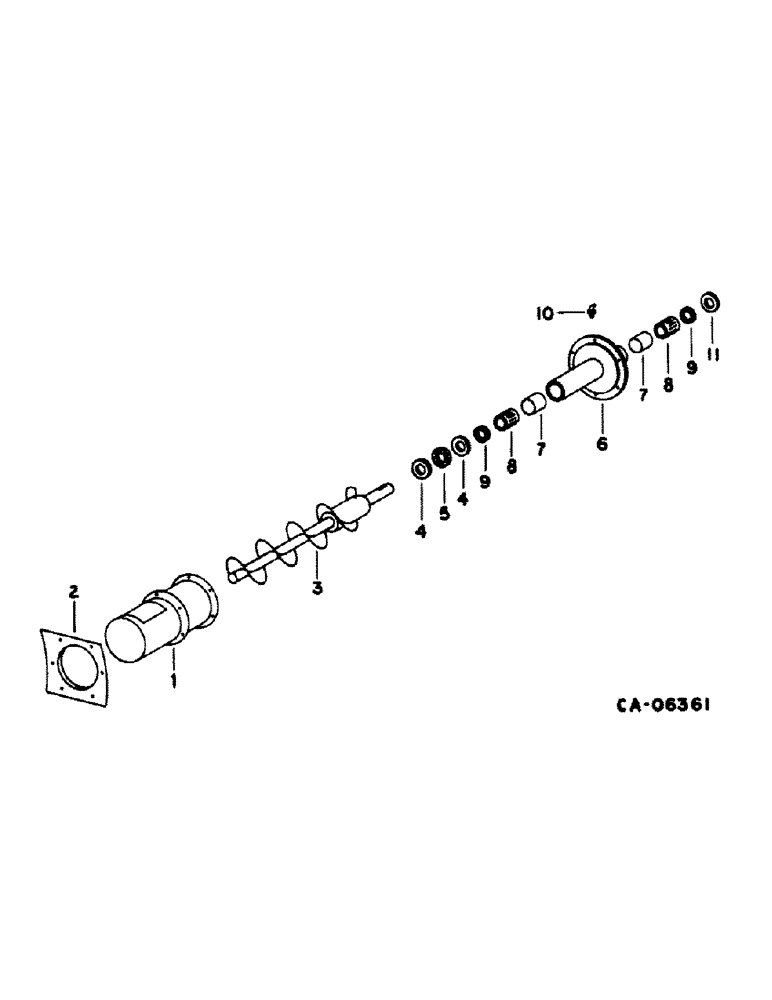

Запчасти Case IH 1420 (25-08) - GRAIN AND TAILINGS ELEVATORS, TAILINGS DELIVERY AUGER Elevators

1

186114C1

TUBE

ASSY, tailings delivery auger, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

185192C1

FLANGE

tailings delivery tube, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

186134C1

AUGER

ASSY, tailings delivery, Includes: washer

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.000 x .108

1шт.

4

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

delivery auger thrust

2шт.

5

1324864C91

THRUST BEARING

delivery auger, replaces 368372R91

1шт.

6

192783C1

BEARING HOUSING,2" ID x 8" OD x 6.3"

HUB, distributor auger brg, Includes: bolt, nut and washers

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21885R1

WASHER

1.031 x 2.000 x .054

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

21213R1

WASHER

1.031 x 2.000 x .105

1шт.

151670C1

SHIM

shim

1шт.

7

588997R1

BUSHING,34.99mm ID x 36.55mm OD x 25.27mm L

distributor auger brg

1шт.

8

568029R91

BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W

BEARING, distributor auger hub

2шт.

9

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

hub

2шт.

10

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg special

1шт.

11

21885R1

WASHER

1.03 x 2.00 x ./6

4шт.
