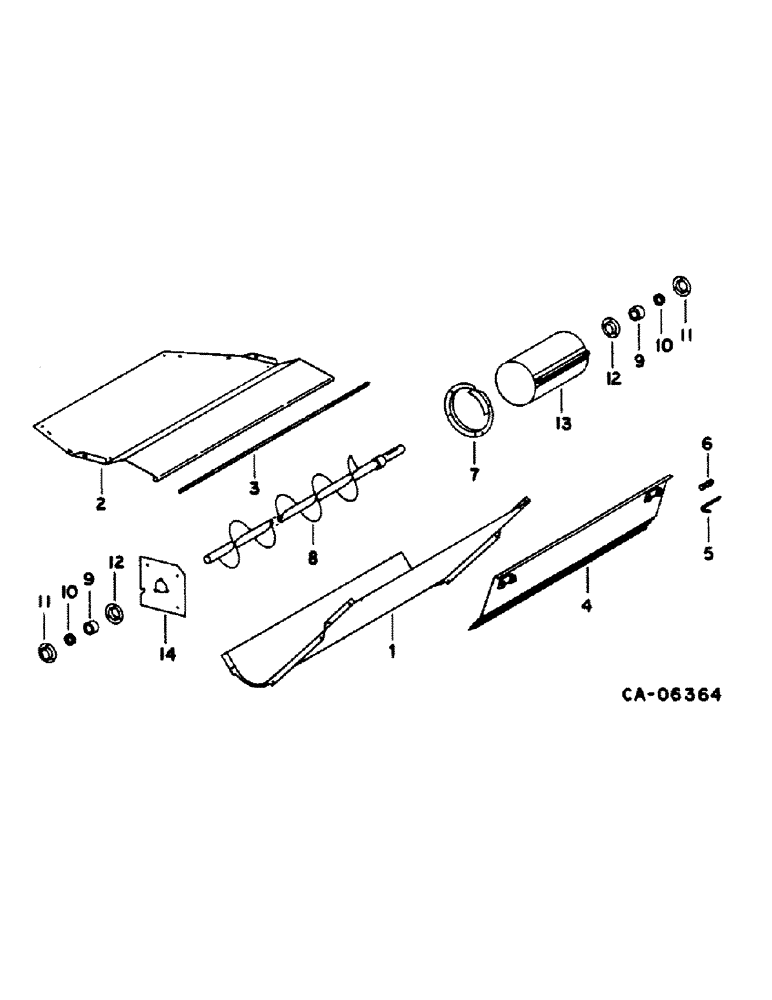

Запчасти Case IH 1420 (25-07) - GRAIN AND TAILINGS ELEVATORS, TAILINGS AUGER TROUGH Elevators

1

193801C1

TROUGH ASSY.

TROUGH ASSY, tailings auger, Includes: nut, screws and washer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

2

185194C1

DOOR

tailings auger trough, Includes: bolt, screw and nuts

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

3

185199C1

ROD

auger trough door, Includes: nuts and washers

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

4

186977C1

PANEL

GATE ASSY, tailings, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

186736C1

ROD

tailings tailgate, Includes: pin and washer

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

469668R1

WASHER

.406 x .734 x .056

1шт.

6

540815R1

SPRING

tailgate lock pin

2шт.

7

160324C2

FLANGE

tailings auger bearing plate Rh, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

186126C1

AUGER

ASSY, tailings

1шт.

9

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

ASSY, tailings auger

2шт.

10

455102R21

COLLAR

W/SET SCREW, brg locking

2шт.

11

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE W/STR LUB FITTING, brg, replaces 937518R91

2шт.

12

937517R1

FLANGE

brg grooved, Includes: screw and nut

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

186129C1

CLAMP

ASSY, tailings auger, non-perforated, Includes: bolt and nut

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

13

186307C1

CLAMP

ASSY, tailings auger, perforated, Includes: screw and nut

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

14

192357C2

BAR

left bearing support tailings, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

187615C2

BRACKET

1шт.

16

187616C1

SUPPORT

1шт.

17

178801C1

COLLAR

1шт.
