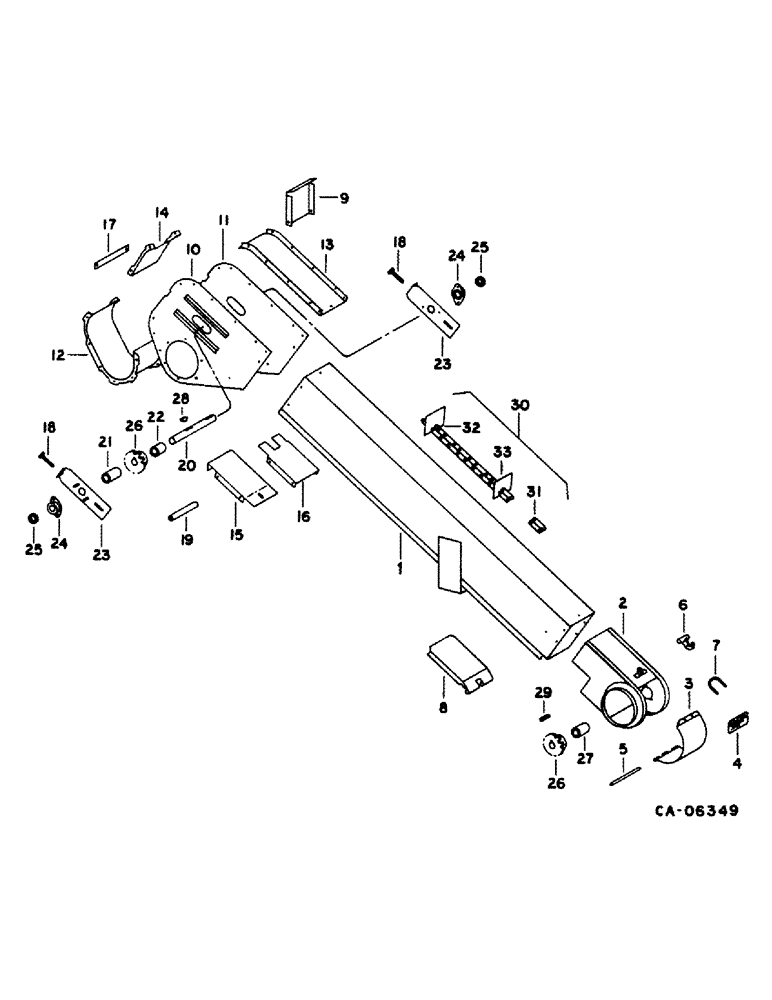

Запчасти Case IH 1420 (25-05) - GRAIN AND TAILINGS ELEVATORS, TAILINGS ELEVATOR Elevators

1

186132C1

ELEVATOR TUBE,2161.03 mm Length

TUBE ASSY, tailings elevator, Includes: screw, nut and washer

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

2

191771C1

BOOT

ASSY, elevator, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

156910C1

DOOR

boot, non-perforated

1шт.

3

174193C1

DOOR

boot, perforated

1шт.

4

Not used this application

1шт.

5

U17024

PIN

boot door

1шт.

6

155909C1

LATCH

CATCH, boot door, Includes: pins

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1.250 hd type 1

1шт.

7

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT, boot door catch

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

8

191790C2

END

HINGE, false bottom, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

186398C1

SUPPORT

elevator upper, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

181366C1

SIDE PLATE

SIDE ASSY, elevator head LH, Includes: screw, nut and washer

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

11

181367C1

SIDE PLATE

SIDE ASSY, elevator head RH, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

188119C1

TROUGH

ASSY, elevator head, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

191783C1

TOP COVER

SUPPORT, head, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

14

191776C1

COVER

head, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

191782C1

SUPPORT

head, Includes: screws and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

181327C1

BOTTOM

SUPPORT, head false, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

17

181311C1

BAR

conveyor chain tightener, Includes: nut

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18

667486R1

BOLT

BOLT, conveyor chain tightener bar

2шт.

19

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

Head shaft, Includes Bolt, Nut and Washers 1/4" Pipe x 5 13/16"

1шт.

24666R1

BOLT,Hex, 5/16" - 18 x 7", Gr 2

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

20

181312C1

SHAFT

elevator head, Includes: washer

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

1шт.

21

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

Head shaft, LH 1" Pipe x 2 3/4"

1шт.

22

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

Head shaft, RH 1" Pipe x 1 9/16"

1шт.

23

181364C1

SUPPORT

ASSY, elevator head shaft

2шт.

24

214490C91

BALL BEARING,25.4mm ID

BEARING, head shaft

2шт.

25

455102R21

COLLAR

ASSY, head shaft bearing lkg, Includes: nut

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

26

168683C1

SPROCKET

conveyor chain, 7T

2шт.

27

21696R1

SPACER,1" Pipe x 1 3/8"

boot sprocket 1 x 1.38 pipe, Includes: washer

1шт.

21742R1

WASHER

1.031 x 1.500 x .027

1шт.

28

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

29

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1 sq parallel

1шт.

30

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSY, chain w/flights

1шт.

185315C1

RIVET

3/8 x 5/8 tubular

1шт.

31

631254R91

DRAG LINK

LINK, conveyor chain connecting, Includes: pin

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

31

23880R1

OFFSET LINK

LINK, conveyor chain offset

1шт.

31

631253R91

LINK

conveyor chain plain

1шт.

32

150722C91

LINK

conveyor chain attaching, for use w/1303124C92

1шт.

33

1303123C91

ELEVATOR CHAIN

W/FLIGHT, elevator, rubber

1шт.

33

1303124C92

RUBBER FLIGHT

CONVEYOR W/FLIGHT, elevator, steel, consists of the following serviceable items, Includes: bolt, washer and nut

1шт.

1303125C1

STEEL FLIGHT

FLIGHT, steel

1шт.

1303116C1

RUBBER FLIGHT

FLIGHT, conveyor

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.
