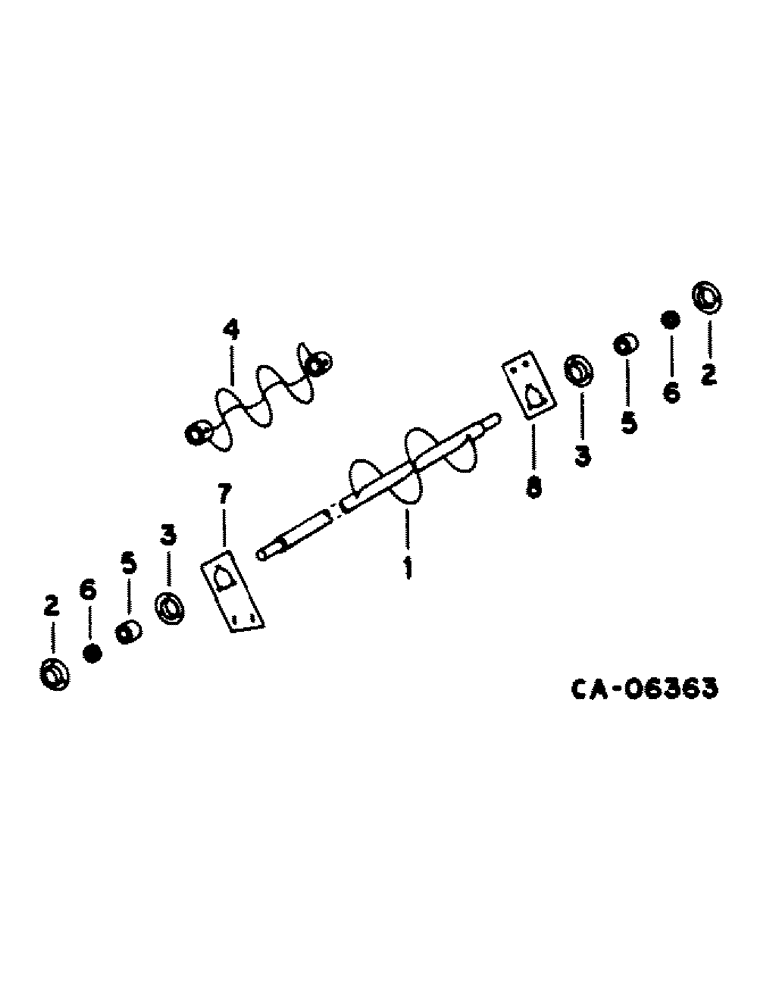

Запчасти Case IH 1420 (25-04) - GRAIN AND TAILINGS ELEVATORS, GRAIN DELIVERY AUGER Elevators

1

186122C1

AUGER

ASSY, grain delivery, for grain & corn

1шт.

1

181434C1

AUGER

ASSY, grain delivery, for rice

1шт.

2

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE, w/45 deg lub fitting

2шт.

3

937517R1

FLANGE

auger brg grooved, Includes: screw and nut

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

162103C91

AUGER

ASSY, distribution, for grain & corn, Includes: screw

1шт.

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

1шт.

5

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

grain auger

2шт.

6

455102R21

COLLAR

W/SET SCREW, auger brg

2шт.

7

186124C1

SUPPORT

grain auger brg, for grain & corn

1шт.

7

181435C1

BAR

auger brg, for rice, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

183466C1

BAR

auger brg, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
