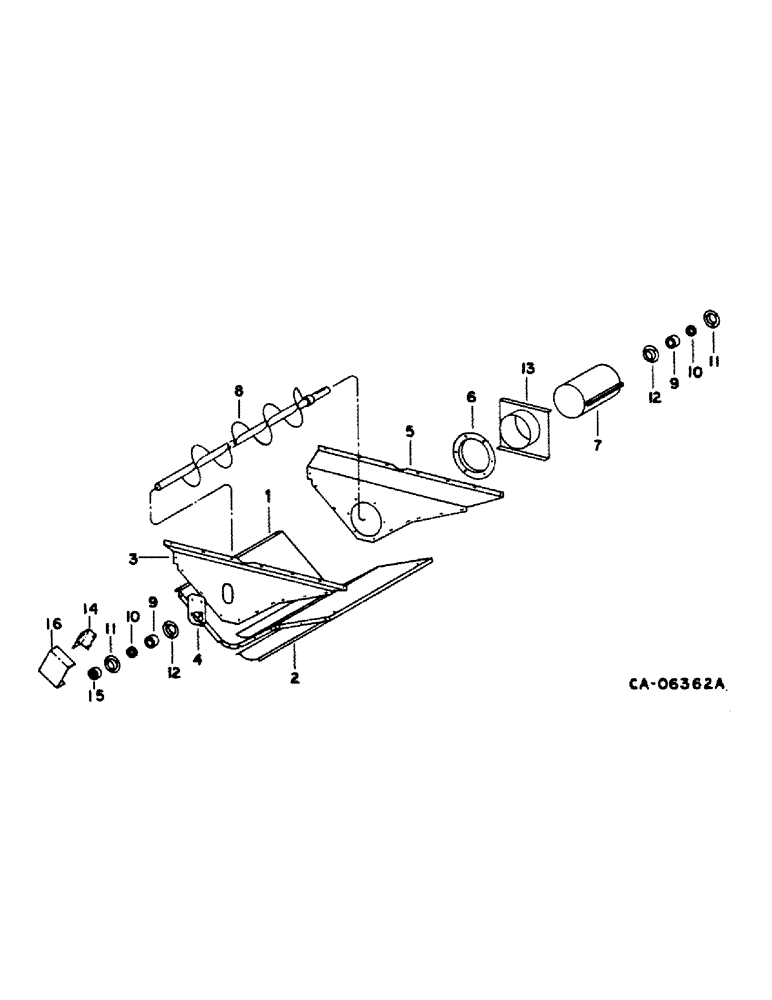

Запчасти Case IH 1420 (25-03) - GRAIN AND TAILINGS ELEVATORS, GRAIN AUGER TROUGH Elevators

1

193787C1

TROUGH

grain, non perforated

1шт.

1

186618C1

TROUGH

grain, perforated

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque, Includes washer, and bolts

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

2

186615C1

COVER

grain trough, for use w/perforated trough, Includes: nut and screws

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

SCREW, 5/16 x 1 h/whd tap

1шт.

3

182553C1

SUPPORT ASSY.

SUPPORT ASSY, grain trough LH, Includes: nut and bolt

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

4

182555C1

SUPPORT

grain collecting auger access, Includes: nut and bolt

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

5

191715C2

SUPPORT

grain trough RH

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque, Includes: bolt

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

6

194688C1

RING

RETAINER, grain trough RH support

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque, Includes: bolt

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

7

186173C1

CLAMP

ASSY, grain auger trough, non-perforated, Includes: nut and screw

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

7

186310C1

CLAMP

ASSY, grain auger trough, perforated

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

8

1319192C1

AUGER

clean grain 1-1/4 in., replaces 186170C1, furnish package 1319977C91 and auger 1319192C1 if machine is not so equipped, Includes: washer

1шт.

22050R1

WASHER

1.281 x 1.750 x .054

1шт.

9

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

grain auger

2шт.

10

455102R21

COLLAR

W/SET SCREW, grain auger brg

2шт.

11

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE, w/45 deg lub fiting

2шт.

12

937517R1

FLANGE

auger brg grooved, Includes: nut and screw

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

13

TUBE ASSY, refer to group 20 under separator sides

1шт.

14

178801C1

COLLAR

sensor

1шт.

15

178794C1

BRACKET

sensor

1шт.

16

187642C2

COVER

sensor, Includes: screw

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

1319977C91

PACKAGE

clean grain auger, replaces 1300724C91, to convert to 1-1/4 in. diameter shaft, consists of

1шт.

1319176C1

SPROCKET ASSY.

SPROCKET, elevator boot, 7T

1шт.

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq. parallel

1шт.

80074C1

SPACER

1.28 x 1.50 x 1.81, instructions (NSS)

1шт.
