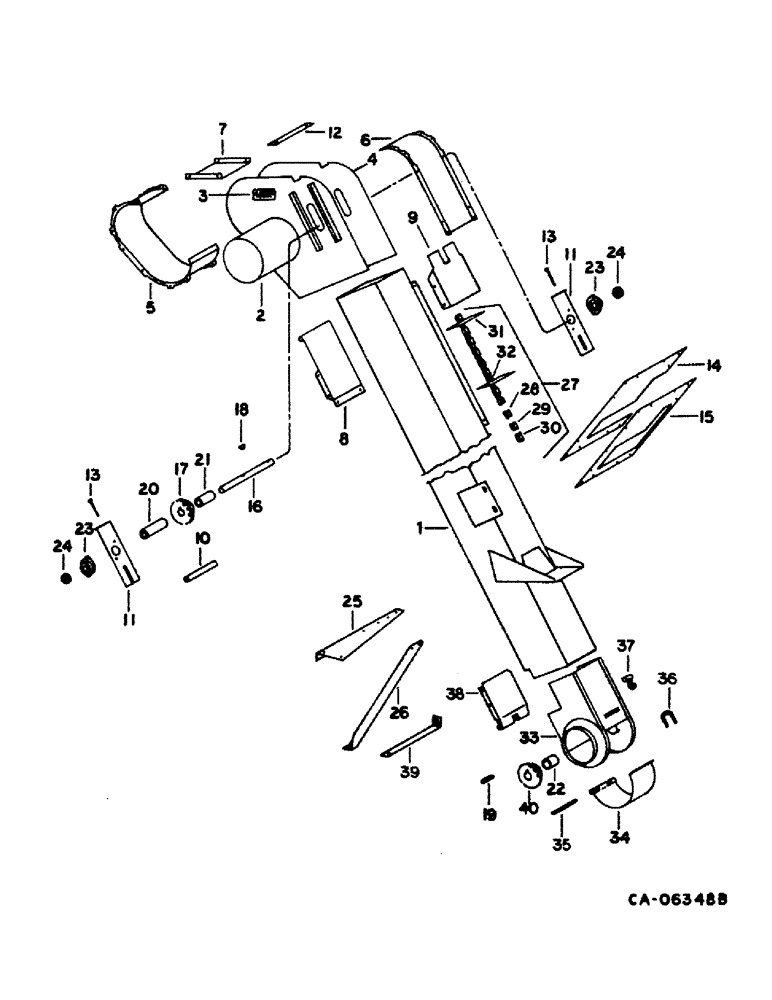

Запчасти Case IH 1420 (25-01) - GRAIN AND TAILINGS ELEVATORS, GRAIN ELEVATOR Elevators

1

186151C1

ELEVATOR TUBE

TUBE ASSY, grain elevator, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

1300898C91

SIDE PLATE

SIDE ASSY, elevator head LH, replaces 1303102C91, for grain and corn, Includes: Ref. no. 3

1шт.

2

1319631C91

SIDE ASSY.

SIDE ASSY, elevator head LH, replaces 1303112C91, for rice, Includes: Ref. no. 3

1шт.

3

1319494C1

PRODUCT GRAPHIC

caution, replaces 188197C3

1шт.

4

183370C1

SIDE ASSY.

SIDE ASSY, grain elevator head RH, for grain & corn

1шт.

4

181428C1

SIDE ASSY.

SIDE ASSY, grain elevator head RH, for rice, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

186157C1

SUPPORT ASSY.

SUPPORT ASSY, grain spout, for grain & corn

1шт.

5

181430C1

SUPPORT ASSY.

SUPPORT, grain spout, for rice

1шт.

6

186239C1

SUPPORT

grain elevator head, for grain & corn

1шт.

6

181429C1

SUPPORT ASSY.

SUPPORT, grain elevator head, for rice, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

186159C1

CHANNEL

grain elevator head, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

186160C1

HINGE

grain elevator spout, for grain & corn

1шт.

8

181431C1

SUPPORT ASSY.

SUPPORT, grain elevator spout, for rice, Includes: screw

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

25368R1

BOLT,Hex, 5/16" - 18 x 8 1/2", Gr 2

5/16 x 8-1/2, Includes: Nuts and washers

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x /688 x .051

1шт.

9

186161C1

SUPPORT

top false bottom, for grain & corn

1шт.

9

181432C1

CHANNEL

top false bottom, for rice, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

186162C1

PIPE

headshaft guide lock

1шт.

25368R1

BOLT,Hex, 5/16" - 18 x 8 1/2", Gr 2

5/16 x 8-1/2, Includes: nut and washers

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

11

181364C1

SUPPORT

ASSY, elevator head shaft

2шт.

12

183383C1

BAR

headshaft adjustment bolt

1шт.

13

667486R1

BOLT

BOLT, elevator head, Includes: nut

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

14

182551C1

SHEET

grain elevator seal

1шт.

15

182552C1

PLATE

grain elevator seal, Includes: screw, nut and washer

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

16

186164C1

SHAFT

grain elevator head, Includes: washer

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

1шт.

17

168683C1

SPROCKET

grain elevator head

1шт.

18

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

For head sprocket #15, 1/4" x 1", HT

1шт.

19

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1-1/2 sq-parallel, for use with boot sprocket, 168683C1

1шт.

19

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq. parallel, for use with boot sprocket, 1319176C1

1шт.

20

186165C1

SPACER

1.049 x 1.315 x 3.25 pipe LH, for head sprocket

1шт.

21

PO27260

SPACER,1" Pipe x 2"

1.049 x 1.315 x 2.0 pipe RH, for head sprocket

1шт.

22

151478C1

SPACER,1 1/4" Tube x 1 5/8"

1.032 x 1.250 x 1.625 tubing, Includes: washer

1шт.

21789R1

WASHER

1.031 x 1.250 x .054, for use with boot sprocket 168683C1

1шт.

22

80074C1

SPACER

1.28 x 1.50 x 1.81, for use with boot sprocket 1319176C1, Includes: washer

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

1шт.

23

214490C91

BALL BEARING,25.4mm ID

BEARING, grain elevator headshaft

2шт.

24

455102R21

COLLAR

W/SET SCREW, headshaft locking, Includes: nut

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

25

186166C1

SUPPORT

elevator upper, Includes: screw, nut and washer

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

26

186167C1

SUPPORT

elevator lower, Includes: screw and nut

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

27

186221C1

ELEVATOR CHAIN,C550, 147 Links x 41.4mm = 6085.8mm

ASSY, grain elevator, for grain & corn

1шт.

27

181437C1

CONVEYOR ASSY.

CONVEYOR ASSY, grain elevator, for rice

1шт.

185053C1

RIVET

flight

1шт.

28

631254R91

DRAG LINK

LINK CONNECTING, Includes: pin

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

29

23880R1

OFFSET LINK

LIN, conveyor offset

1шт.

30

631253R91

LINK

LIN, conveyor plain

1шт.

31

185334C91

RUBBER FLIGHT

CONVEYOR W/FLIGHT, grain elevator, rubber

1шт.

31

1303121C92

STEEL FLIGHT

CONVEYOR W/FLIGHT, grain elevator, steel, consists of the following serviceable items

1шт.

1303122C1

STEEL FLIGHT

FLIGHT, steel

1шт.

185333C1

RUBBER FLIGHT

FLIGHT, conveyor, Includes: bolt, washer and nut

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

32

150722C91

LINK

ATTACHING, for use w/1303121C92

1шт.

33

186225C2

BOOT

ASSY, grain elevator, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

34

1310250C1

DOOR ASSY.

DOOR ASSY, grain elevator boot, non-perforated

1шт.

34

186309C1

DOOR

grain elevator boot, perforated

1шт.

35

586657R1

PIN

boot door hinge

1шт.

36

664360R1

BOLT,U, 1/4" - 20 x 69.65"

boot door, Includes: nut

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

37

155909C1

LATCH

boot door, Includes: pins

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1/250 hd type 1

1шт.

38

186233C1

HINGE

false bottom grain, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

39

186733C1

SUPPORT

grain elevator lower, Includes: screws and nuts

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

40

1319176C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 7T, for use with 1-1/4 in. auger shaft

1шт.
