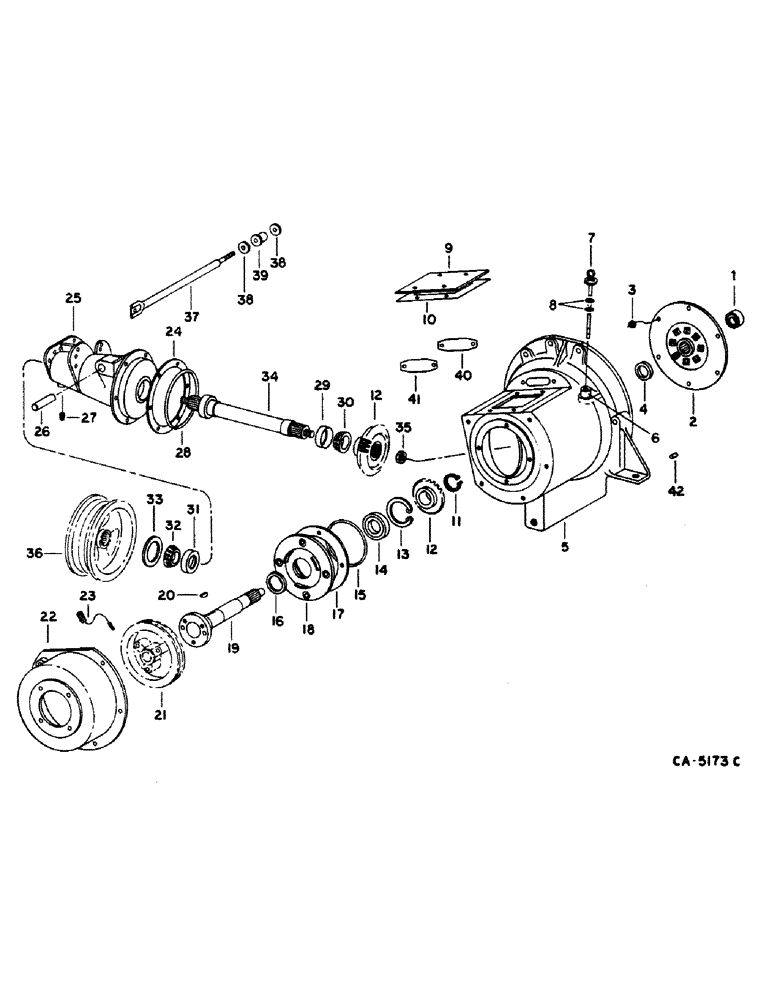

Запчасти Case IH 1420 (07-15) - DRIVE TRAIN, POWER TAKE OFF DRIVE Drive Train

1

NOT USED THIS APPLICATION

1шт.

2

188013C91

PLATE ASSY.,354.33mm OD

PLATE ASSY, pto drive, Includes: bolt

1шт.

2

188013C91R

REMAN-CLUTCH PLATE

PTO Drive

1шт.

2

188013C91C

CORE-CLUTCH PLATE

Return Number

1шт.

26316R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 phc p/t type 8

1шт.

3

406579R1

WASHER

.531 x .88 x .06 hard pto drive plate

6шт.

4

173559C91

SEAL

pto drive shaft

1шт.

5

188075C92

HOUSING

ASSY, engine pto, includes ref. no. 6, Includes: nut washers and bolts

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

23276R1

WASHER

.656 x 2.000 x .164

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5 type 5

1шт.

6

188072C1

TUBE,25.4 mm OD, 127 mm Length

engine pto housing oil cage

1шт.

7

188073C91

DIPSTICK

GAGE ASSY, engine pto housing oil, includes ref. no. 8

1шт.

8

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

.734 x 1.012 x .139

2шт.

9

192275C1

COVER

BAR, pto housing, Includes: bolt and washer

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

191830C1

GASKET

pto housing cover

1шт.

11

23483R1

SNAP RING,#200, Ext

Ring, Snap, , PTO drive shaft #200, Ext

1шт.

12

192801C1

GEAR-SET

GEAR SET, separator drive, 43T and 28T, matched set to 5500

1шт.

12

1302924C1

GEAR-SET

GEAR SET, separator drive, 44T and 27T, matched set,with 8.64 in. diameter auxiliary pump drive pulley, 2900 rpm engine high idle 5501 to 5500

1шт.

13

27822R1

SNAP RING,4.78", Int, #475

Ring, Snap, , PTO drive shaft brg hub 4.78", Int, #475

1шт.

14

ST297

BEARING, BALL

BEARING, pto drive shaft bearing hub

1шт.

15

876086C1

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

RING, 6-1/2 x 6-3/4 x 1/8 class 8

1шт.

16

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

pto drive shaft housing

1шт.

17

188196C1

SHIM KIT

SHIM, pto drive shaft housing package, consists of (1) shim .005 (NSS), (1) shim .007 (NSS), (1) shim .010 (NSS), (1) shim .030 (NSS)

1шт.

18

192817C1

HUB

pto drive shaft bearing, Includes: bolt

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

19

192816C1

SHAFT

pto drive

1шт.

20

57388D

WOODRUFF KEY,#128, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 woodruff

1шт.

21

PULLEY, auxiliary pump drive, refer to group 10 under auxiliary hydraulic pump

1шт.

22

1303141C1

HOUSING

hydrostatic pump, Includes: bolts and washer

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

23

1301241C1

SENSOR

CONVERTOR, reluctance pickup, Includes: nut

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 zn stamped

1шт.

24

188195C1

SHIM KIT

SHIM, separator drive housing package, consists of (1) shim .005 (NSS), (1) shim .007 (NSS), (1) shim .010 (NSS), (1) shim .030 (NSS)

1шт.

25

195461C93

HOUSING

ASSY, separator drive, includes ref. no. 26 and bolt below

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

26

195439C2

PIN,25.29mm OD x 101.6mm L

separator drive housing, Includes: pin and washer

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

1шт.

27

50057K

PLUG

separator drive and engine pto housing magnetic

2шт.

28

188279C1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

8 x 8-1/4 x 1/8 class 7

1шт.

29

ST987

BEARING CUP

BEARING, separator drive housing rear cup

1шт.

30

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

BEARING, separator drive housing rear cone

1шт.

31

376463C1

BEARING CUP

BEARING, separator drive housing front cup

1шт.

32

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

separator drive housing front cone

1шт.

33

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

separator drive housing

1шт.

34

191459C1

SHAFT ASSY.

SHAFT ASSY, separator drive, Includes: nut and washer

1шт.

18521R1

LOCK NUT,1"-14, G8

NUT, 1-NF p/t lock type 5

1шт.

25550R1

WASHER,1 1/16" x 2" x .219", HDN

1.062 x 2.000 x .219 phc hdn

1шт.

35

194737C1

LOCK NUT

1-14 znd security lock

2шт.

36

PULLEY, separator drive, refer to this group under separator drive

1шт.

37

194086C1

ROD

separator drive engine, Includes: nuts, bolt and washer

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

232-46110

LOCK NUT,5/8"-11, GC

NUT, 5/8 cad prevailing torque hex.

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

38

107813R1

WASHER

.66 x 2.50 x .18 znd separator drive engine snubber

2шт.

39

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR, separator drive snubber pipe

1шт.

40

185057C1

GASKET

bolt hole bar

1шт.

41

185056C1

COVER

bolt hole, Includes: bolt and washer

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

42

375362R1

PIN,12.69mm OD x 34.8mm L

dowel, 1/2 x 1-3/8

2шт.
