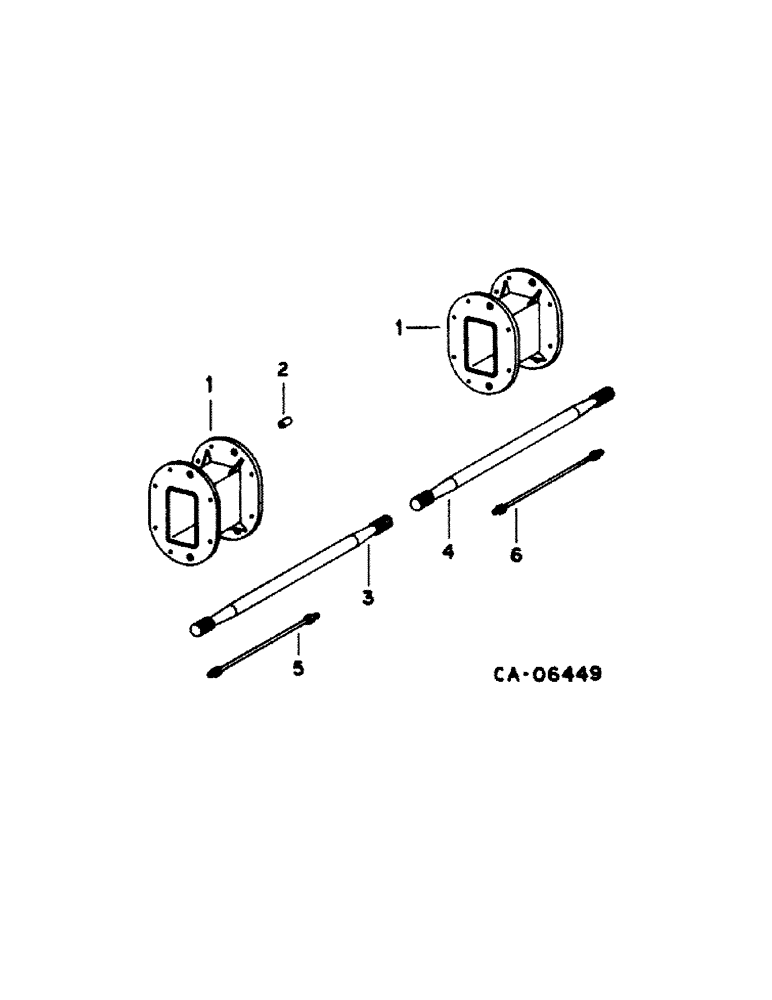

Запчасти Case IH 1420 (07-08[A]) - DRIVE TRAIN, MAIN AXLE EXTENSION Drive Train

1

185119C2

EXTENSION

ASSY, main axle,Includes: bolts and nut and washers to 20130

2шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2 type 8

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 phc hdn

1шт.

1

1315369C2

EXTENSION

ASSY, main axle, Includes: bolts, nut and washers 20131 to

1шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

1шт.

24890R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

25529R1

NUT,3/4"-10, G8

3/4 phc type 8

1шт.

25548R1

WASHER

.812 x 1.500 x .219 phc hdn

1шт.

2

177337C1

SPACER

BUSHING, axle extension flange to 20130

4шт.

2

1315371C1

BUSHING

axle extension flange, Start Serial: 20131

4шт.

3

183344C1

SHAFT

LH axle drive to 5500

1шт.

Ref # 3 (183344C1) = 33.80"

1шт.

3

184227C1

SHAFT

LH axle drive, Start Serial: 55001

1шт.

Ref # 3 (184227C1) = 827.80 MM (32.590")

1шт.

4

183345C1

SHAFT

RH axle drive to 5500

1шт.

Ref # 4 (183345C1) = 25.10"

1шт.

4

184228C1

SHAFT

RH axle drive, Start Serial: 55001

1шт.

Ref # 4 (184228C1) = 606.8MM (23.889") SMA 7/6/98

1шт.

5

TUBE ASSY, brake extension LH, use 39 in. of 1/4 OD steel tubing from 25 ft. roll marked 990094C1 and two 137397 nuts

1шт.

6

TUBE ASSY, brake extension RH, use 38 in. of 1/4 OD steel tubing from 25 ft. roll marked 990094C1 and two 137397 nuts

1шт.
