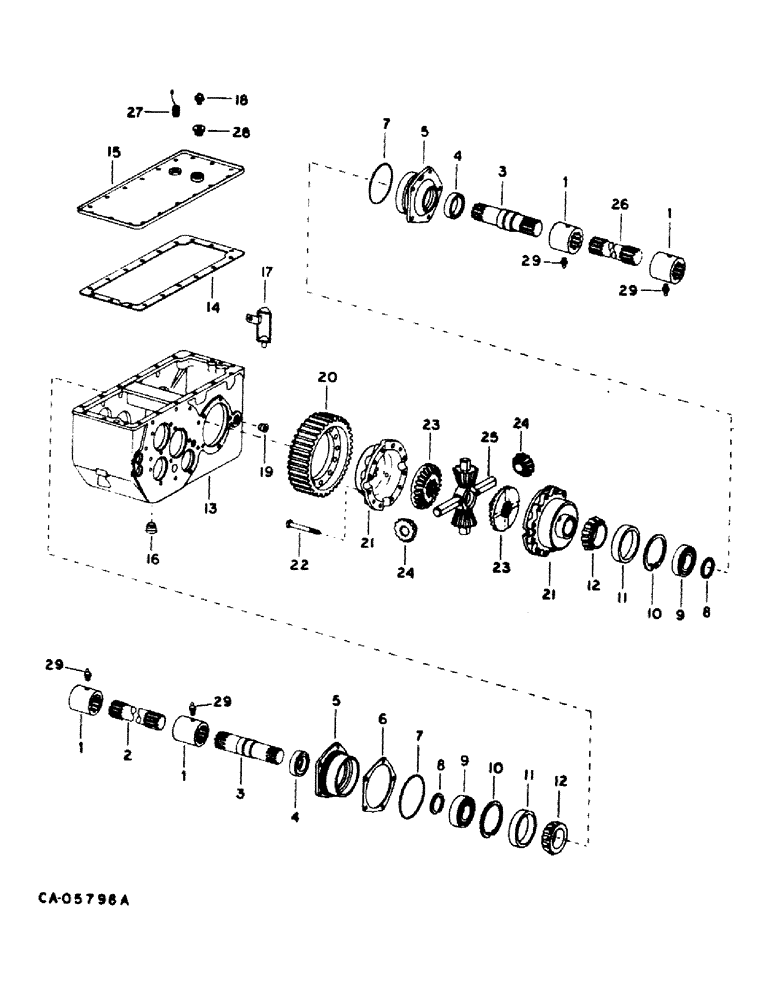

Запчасти Case IH 1420 (07-05) - DRIVE TRAIN, TRANSMISSION, DIFFERENTIAL SHAFT Drive Train

1

184342C1

COUPLING

ASSY W/FITTING, axle drive shaft, Includes: bolt, nut and pin

4шт.

27652R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

3/8 x 3 dld type 8

1шт.

654049R1

LOCK NUT

3/8-16 pln slt-hex

1шт.

21864R1

COTTER PIN

.114 dia. s type cot.

1шт.

2

182804C1

SHAFT

final drive LH to 5500

1шт.

2

59889C1

SHAFT

final drive LH, Start Serial: 5501

1шт.

3

533848R3

SHAFT

differential

2шт.

4

380182R91

OIL SEAL,42.42mm ID x 62.05mm OD x 8.41mm Thk

differential brg. cage oil

2шт.

5

379445R1

BEARING ASSY,61.9 mm ID x 76.2 mm

differential brg., Includes: bolt

2шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/8 phc p/t type 8

1шт.

6

573976R1

DISC

SHIM, cage, light

1шт.

6

573977R1

SHIM

cage, med

1шт.

6

573978R1

SHIM

cage, heavey

1шт.

7

610412C1

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

4-5/8 x 4-7/8 x 1/8

2шт.

8

631255R1

SNAP RING,#177, Ext

Ring, Snap, , differential shaft #177, Ext

4шт.

9

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BEARING, differential cage

2шт.

10

379485R1

RING

differential cage brg. snap

2шт.

11

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

BEARING, differential cup

2шт.

12

ST2039

BEARING CONE,68.26mm ID x 22.07mm W

BEARING ASSY, cone

2шт.

13

184079C1

CASE

HOUSING, transmission, Includes: elbow, washer, bolt, screw and washer

1шт.

140798

ELBOW,45 Degree, 3/4" NPT Street

3/4 45 deg street

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

9406829

HEX SOC SCREW,1/2" - 13 x 3 1/2"

SCREW, 1/2 x 3-1/2 h/shd cap

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

14

573998R2

GASKET

transmission case cover

1шт.

15

184074C1

COVER ASSY

transmission case, Includes: bolt and washer

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 pln type 5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext pln tooth lock

1шт.

16

320185C1

PLUG

3/4-14 sq-soc magnetic plug

1шт.

17

402838R1

TROUGH

oil, Includes: screw and washers

1шт.

27096R1

SCREW

1/4 x 5/8 znp p/hds mach

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

106260

WASHER,#12

.250 x .562 x .036 pln

1шт.

18

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

transmission case oil

1шт.

19

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG, 3/4-14 sq-soc auto.

1шт.

20

GEAR, differential driven, not serviced separately, order package 395631R92

1шт.

21

395631R92

PACKAGE

differential case & gear, consists of case (NSS), wire (NSS), gear (NSS)

1шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

1/2 pln thick type 8

8шт.

395636R2

BOLT,1/2" - 20 x 3.87"

differential case

8шт.

22

395636R2

BOLT,1/2" - 20 x 3.87"

differential case, Includes: nut

8шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

1/2 pln thick type 8

1шт.

23

360962R2

GEAR

differential bevel, 28 T

2шт.

24

360961R1

GEAR

PINION, differential bevel, 15T

4шт.

25

388093R1

U-JOINT SPIDER

SPIDER, differential

1шт.

26

533738R1

SHAFT

final drive RH to 5500

1шт.

26

184185C1

SHAFT

final drive RH, Start Serial: 5501

1шт.

27

1301241C1

SENSOR

CONVERTOR, reluctance pickup, Includes: nut

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 zn stamped

1шт.

28

115224

ADAPTER

3/4 x 3/8 reducing pipe

1шт.

29

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

4шт.
