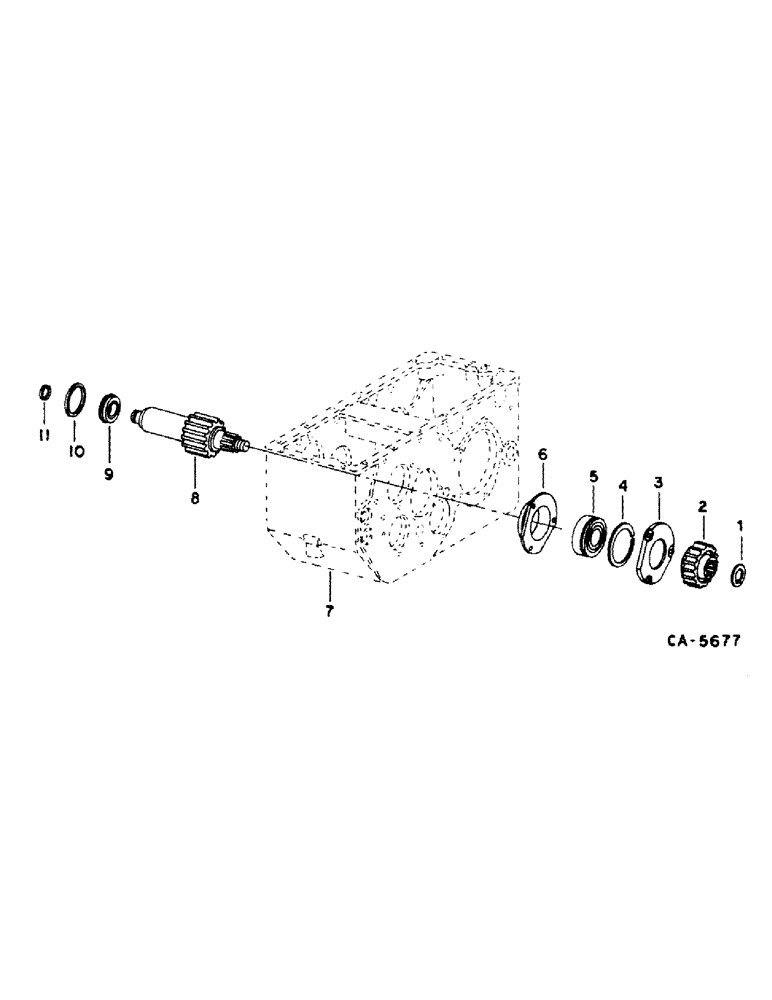

Запчасти Case IH 1420 (07-03) - DRIVE TRAIN, TRANSMISSION, INTERMEDIATE SHAFT Drive Train

1

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

intermediate shaft

1шт.

2

402840R1

GEAR

change driven, 28 T

1шт.

2

405438R1

GEAR

change driven, 25 T

1шт.

3

395645R1

RETAINER

intermediate bearing right cage, Includes: bolt

1шт.

27970R1

BOLT,Hex, 5/16" - 18 x 7/8", Gr 8

5/16 x 7/8 phc pre-torq type 8

1шт.

4

ST419

RING

bearing snap

1шт.

5

395643R91

BEARING, ROLLER, CYL,40mm ID x 80mm OD x 30.1mm W

intermediate shaft

1шт.

6

395644R1

CAGE

intermediate shaft bearing right

1шт.

7

CASE, transmission, refer to this group under differential shaft

1шт.

8

402839R1

SHAFT

intermediate gear, 17 T, Includes: nut and washer

1шт.

382879R1

NUT

intermediate gear shaft

1шт.

382900R1

LOCK WASHER

shaft lock

1шт.

9

ST364

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, intermediate shaft left

1шт.

10

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

transmission case sq seal

1шт.

11

370504R1

RING

transmission intermediate shaft snap

1шт.
