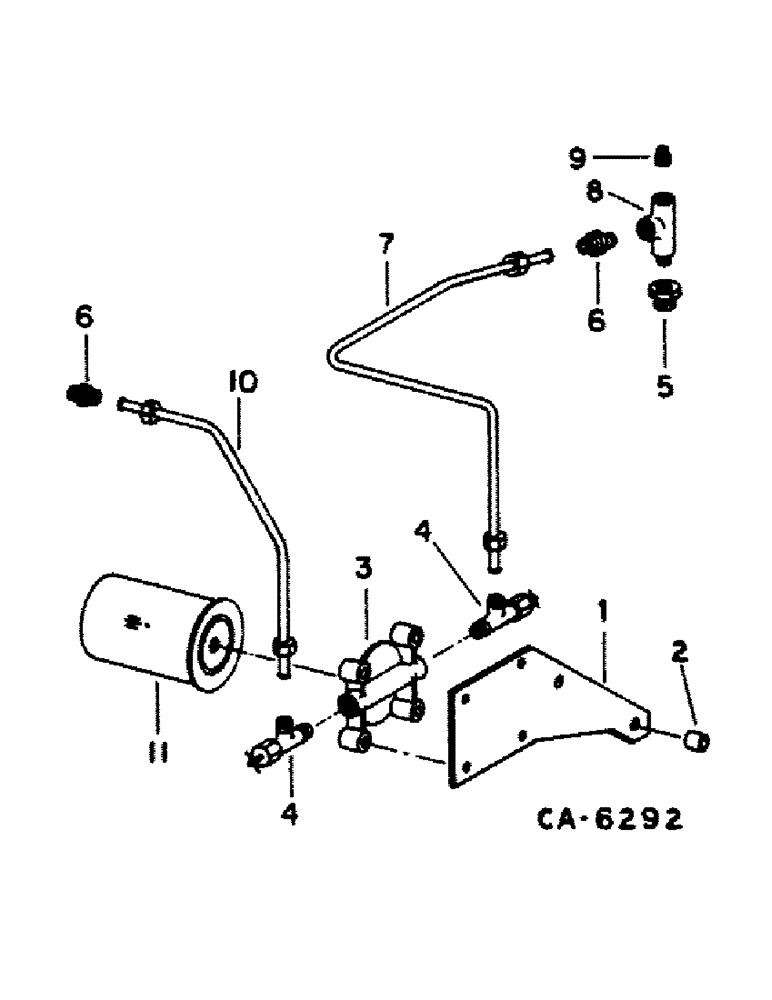

Запчасти Case IH 1420 (06-04) - COOLING, COOLANT, FILTER CONDITIONER Cooling

1

131492C2

SUPPORT

filter base, Includes: bolts and washers

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 pln type 5

1шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 pln type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

85490H

SPACER

.407 x .625 x .688

1шт.

3

427446C1

HEAD

BASE, coolant conditioner, Includes: bolt and washer

1шт.

25654R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

5/16 x 1-1/2 pln type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE, shut-off

2шт.

5

175778H1

ADAPTER

1/2 x 3/8 reducting pipe

2шт.

6

333773R1

CONNECTOR, ELEC

CONNECTOR, straight

2шт.

7

TUBE, coolant inlet, use 24 in. of 3/8 OD copper tubing from 50 ft. roll marked 995063R1 and two 265205R1 nuts & two 265204R1 sleeves

1шт.

8

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

3/8 pipe

1шт.

9

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8 sq-hd pipe

1шт.

10

TUBE, coolant outlet, use 14 in. of 3/8 OD copper tubing from 50 ft. rool marked 995063R1 & two 265205R1 nuts & two 265204R1, sleeves

1шт.

11

A151931

FILTER

ELEMENT, coolant conditioner, replaces 690171R1 & 1801090C1

1шт.
