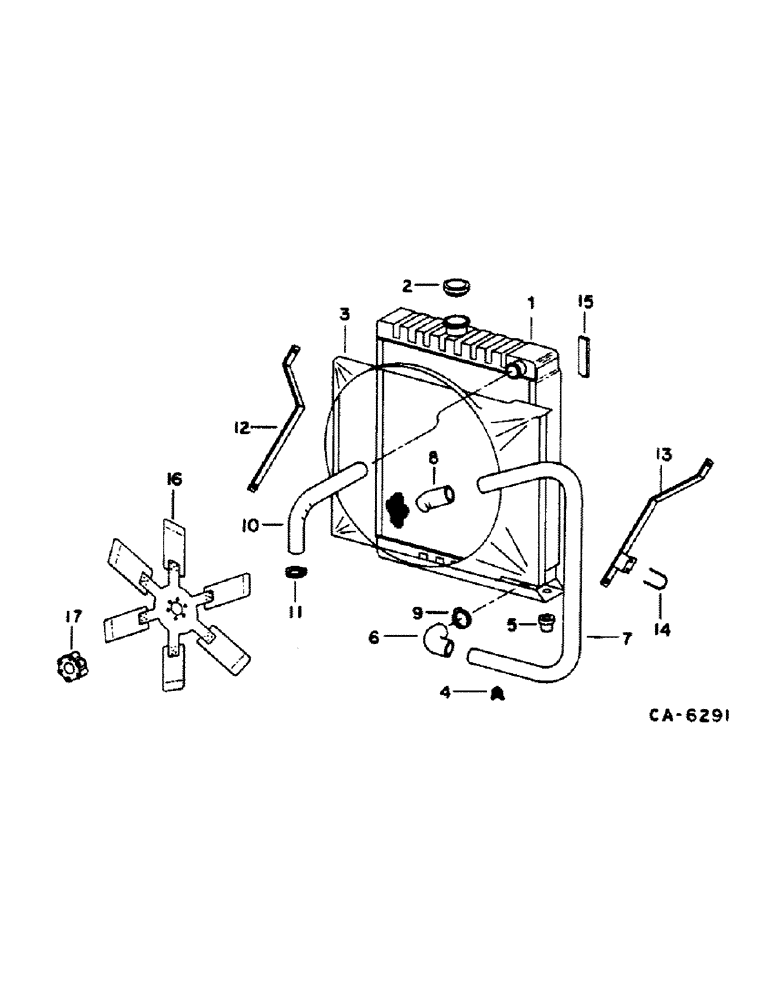

Запчасти Case IH 1420 (06-03) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

107668C3

RADIATOR

1шт.

2

530874R1

CAP

radiator pressure

1шт.

3

400134R2

SHROUD

fan, Includes: screws and washers

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 h/hd tap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

175997

SELF-TAP SCREW,Hex Hd, 5/16" x 1 1/4"

SCREW, 5/16 x 1-1/4 h/hd tap

1шт.

4

86982771

VALVE

COCK, radiator drain

1шт.

5

400159R1

BUMPER

MOUNT, radiator, Includes: bolt, nut and washer

2шт.

18699R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/2", Gr 2

BOLT, 7/16 x 2-1/2 crg type 1

1шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

23043R1

WASHER

.469 x 1.750 x .105

1шт.

6

680514R1

LARGE HOSE

HOSE, radiator outlet

1шт.

7

130870C1

TUBE

radiator outlet

1шт.

8

107689C1

RADIATOR HOSE,2.00" ID x 4.50"

Water Pump Inlet 2.00" ID x 4.50"

1шт.

9

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, no. 32 type f hose

2шт.

10

121710C1

RADIATOR HOSE,50.80 mm ID x 310.00 mm, SAE 20R4 CLASS D-2

50.80 mm ID x 310.00 mm, SAE 20R4 Class D-1, Inlet

1шт.

11

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, no. 32 type f hose

2шт.

12

194912C1

SUPPORT

radiator LH, Includes: screw and nut

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

146450C1

SUPPORT

radiator RH, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

14

146452C1

BOLT,5/16" - 18 x 58.75mm W x 68mm L

U-BOLT, radiator pipe, Includes: nut

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

15

GASKET, radiator baffle, furnish 35.5 in. from 4 ft. length marked 73222C1

1шт.

16

121647C2

FAN

BLADE, fan

1шт.

17

396542R1

HUB

fan blade, Includes: bolt and washer

1шт.

25236R1

BOLT,Hex, 5/16" - 18 x 3", Gr 8

5/16 x 3 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
