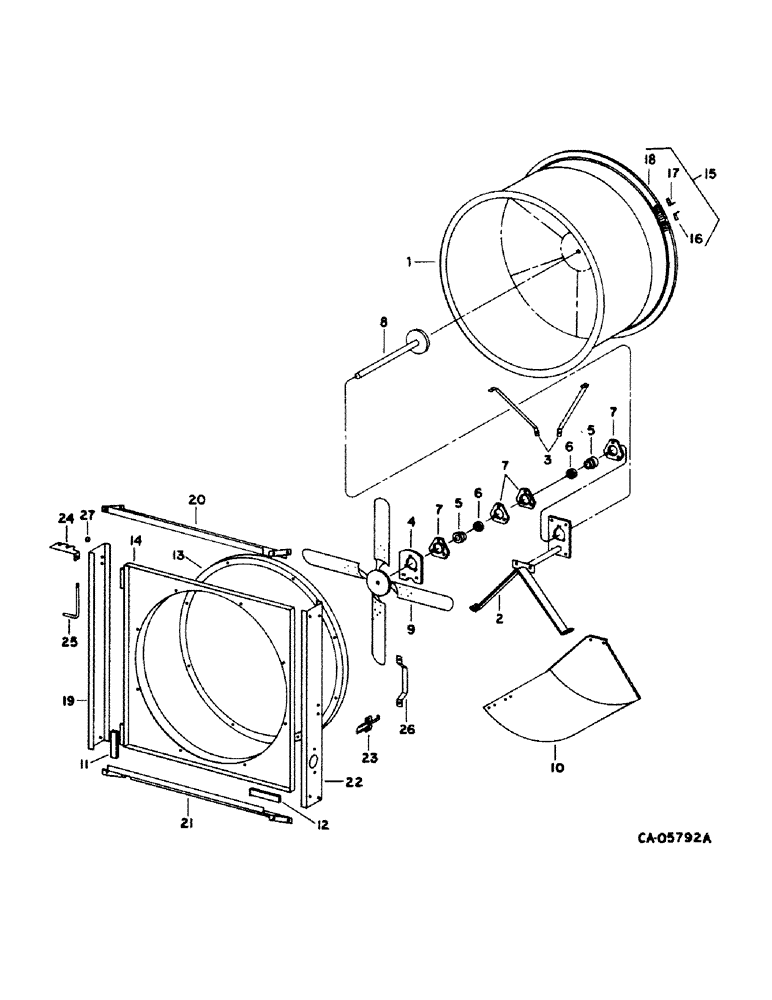

Запчасти Case IH 1420 (06-01) - COOLING, ROTARY AIR SCREEN Cooling

1

159702C91

SCREEN

SIEVE ASSY, rotary air screen, Includes: rivet, screw and nut

1шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

3/16 x 9/32 pln al t/hd s/t

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

2

194998C1

SUPPORT ASSY.

SUPPORT ASSY, rotary air screen brg, Includes: rivet, screw and nut

1шт.

104235

RIVET,FH, 3/16" x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

154885C1

BRACE

rotary air screen brg support, Includes: screw, nut and rivet

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

104235

RIVET,FH, 3/16" x 1/2"

1шт.

4

153570C1

BRACKET

rotary air screen brg support, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

468390R92

BALL BEARING,0.6255" ID x 40 mm OD x 0.75"

ASSY, rotary air screen

2шт.

6

468391R11

COLLAR

W/SET SCREW, locking

2шт.

7

661147R1

FLANGED BEARING

rotary air scren brg, Includes: screw and nut

4шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

8

195013C1

ROD ASSY.

ROD ASSY, rotary air screen, Includes: nut and washers

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 jam type 5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext pln tooth lock

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

9

1315542C1

FAN

ASSY, 7 blade, replaces 161207C91

1шт.

10

195000C1

DEFLECTOR

ASSY, rotary air screen, Includes: rivet

1шт.

104235

RIVET,FH, 3/16" x 1/2"

1шт.

11

183104C1

SEALING STRIP

shroud side rubber seal, 29.5 in., 749.3mm

2шт.

12

183104C1

SEALING STRIP

shroud top & bottom rubber seal, 31.8 in, 807.7mm

2шт.

13

161420C1

RING

rotary screen brush, Includes: screw

1шт.

161421C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 s/d tap

1шт.

14

186558C92

SHROUD

ASSY, rotary air screen, includes ref no. 13

1шт.

15

161010C92

CIRCULAR BRUSH

BRUSH ASSY, rotary air screen, includes ref nos. 16 thru 18

1шт.

16

164616C1

ANGLE

CLIP, brush support

1шт.

17

164617C1

ANGLE

CLIP, brush long, Includes: screw and nut

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10 x 1 znp p/hds mach

1шт.

19910R1

LOCK NUT

no. 10 cad p/t lock type 5

1шт.

18

BRUSH, order ref. no. 15

1шт.

19

195002C1

ADAPTER

ASSY, rotary air screen RH, Includes: screw and washer

1шт.

27607R1

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW, 5/16 x 3/4 h/whd tap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

195007C1

SUPPORT

adapter, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21

195009C1

SUPPORT

adapter, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

22

195011C1

CHANNEL

adapter LH, Includes: screw and washer

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

195015C1

LATCH ASSY.

LATCH ASSY, rotary air screen shroud, Includes: bolt and nut

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1/4 x 1/2 flange lock

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

24

183342C1

SUPPORT

adapter to side, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

25

183188C1

ROD

rotary screen hinge, Includes: pin and handle

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

26

160638C1

HANDLE

rotary air screen, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

27

353404

PLUG, 1/2 in. dia., used in rotary air screen adapter, RH

1шт.
