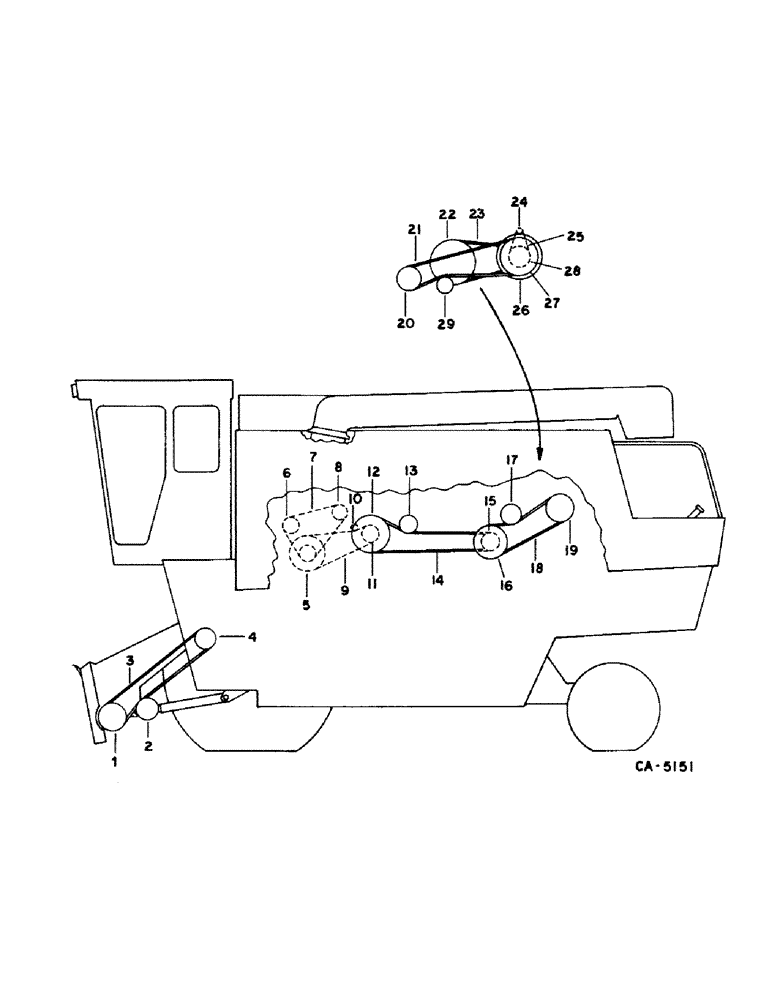

Запчасти Case IH 1420 (02-01) - MISCELLANEOUS, PULLEY, BELT, SPROCKET AND CHAIN DIAGRAM, LEFT SIDE Accessories & Attachments / Miscellaneous

1

176562C2

PULLEY

ASSY, feeder jackshaft driver, 13.5 in. OD, 342.9mm OD

1шт.

2

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, belt idler, 8.75 in. OD, 222.3mm OD

1шт.

3

197414C2

BELT,22.33 mm W x 3706.69 mm L

V-BELT , Reel pump drive, OD 22.33 mm W x 3706.69 mm L

1шт.

4

187697C1

PULLEY ASSY.

PULLEY ASSY, pump driven, 7.13 in. OD x 3/4 in bore

1шт.

O.D. IS 7.5" shaft size is 3/4'S, keyed.

1шт.

5

192511C2

SPROCKET ASSY.

SPROCKET ASSY, unloader drive, 43T and 57T

1шт.

6

192922C1

SPROCKET

ASSY, front auger driven, 43T

1шт.

7

CHAIN ASSY, grain tank auger drive, use 157 links from a 10 ft. roll marked 1790D, and one connecting link 1301D

1шт.

1301D

CHAIN LINK

LINK, #40 single pitch connecting

1шт.

8

192925C1

SPROCKET

ASSY, rear auger driven, 37T

1шт.

9

CHAIN ASSY, vertical auger drive, use 128 links from 10 ft roll marked 1791D and one offset link 1315D and two connecting links 1310D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

1315D

LINK

#50 single pitch offset

1шт.

10

565442R91

SPROCKET

vertical auger chain tightener, 17T

1шт.

11

182608C91

SPROCKET ASSY.

SPROCKET ASSY, rear auger drive, 27T to 5500

1шт.

11

1310363C91

SPROCKET ASSY.

SPROCKET ASSY, auger drive, Start Serial: 5501

1шт.

12

192967C1

PULLEY ASSY.

PULLEY ASSY, unloader jackshaft driven, 18.6 in. OD, 472.4mm OD

1шт.

13

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

ASSY, unloader belt tightener, 8.75 in. OD, 222.3mm OD

1шт.

14

195143C1

BELT,22.33 mm W x 3436.69 mm L

V-BELT , Unloader jackshaft drive, OC 22.33 mm W x 3436.69 mm L

1шт.

15

192945C91

PULLEY ASSY.

PULLEY ASSY, auxiliary pump drive, 7.22 in. OD, 183.4mm OD

1шт.

16

192943C1

PULLEY ASSY.

PULLEY ASSY, auxiliary pump driven, 11.65 in. OD, 295.9mm OD

1шт.

17

192865C1

PULLEY

ASSY, auxiliary pump idler, 8.0 in. OD, 203.2mm OD

1шт.

18

191288C2

BELT,0.879" W x 96.11" L

V-BELT , Auxiliary pump drive, OC 0.879" W x 96.11" L

1шт.

19

196481C1

PULLEY

auxiliary pump drive, 9.25 in. OD, 235mm OD to 5500

1шт.

19

1302923C1

PULLEY

auxiliary pump drive, 8.64 in. OD, 219.5mm OD 5501 to

1шт.

20

191461C1

PULLEY,110mm OD

separator drive, 11.0 in. OD, 279.4mm OD

1шт.

21

191241C1

BELT

- Separator drive, 130 in. OC, 3302.0mm OC

1шт.

22

193927C1

PULLEY

fixed variable, 17.75 in. OD, 450.9mm OD

1шт.

22

193928C93

PULLEY ASSY.

PULLEY ASSY, adjustable variable, 17.75 in. OD, 450.9mm OD

1шт.

23

1302174C1

V-BELT,2361.48 mm L

Rotor Variable Drive 2361.48 mm L

1шт.

24

194337C1

SPROCKET

control, 8T

1шт.

25

CHAIN ASSY, variable drive, use 31 links from 10 ft. roll marked 569088R91 and two offset links 457114R91 and one connecting link 457113R91

1шт.

457114R91

CHAIN LINK

LINK, #2040 double pitch offset

1шт.

457113R91

CHAIN LINK

LINK, #2040 double pitch connecting

1шт.

26

193620C92

PULLEY ASSY.

PULLEY ASSY, rotor drive variable, 17.5 in. OD, 444.5mm OD

1шт.

26

193622C92

PULLEY ASSY.

PULLEY ASSY, rotor drive stationary, 17.5 in. OD, 444.5mm OD

1шт.

27

191452C2

PULLEY

separator jackshaft driven, 14.75 in. dia., not for use w/straw chopper

1шт.

28

194464C2

SPROCKET

variable male, 25T

1шт.

29

174757C1

PULLEY

ASSY, idler, 8.0 in. OD, 203.2mm OD

2шт.
