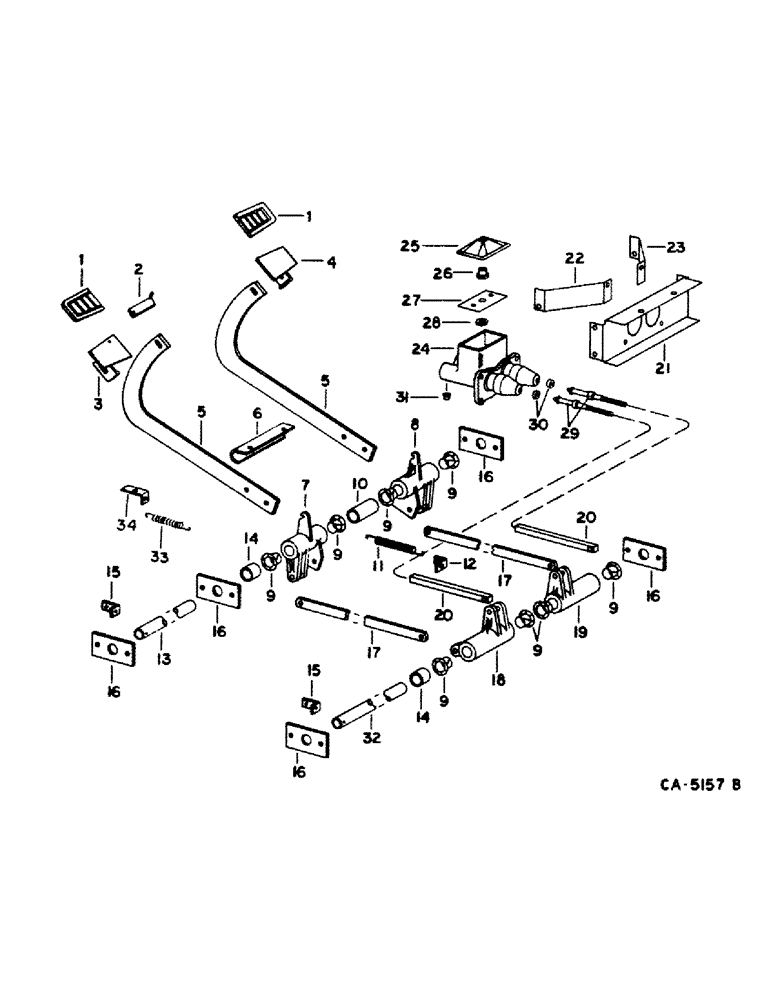

Запчасти Case IH 1420 (04-02) - BRAKE, MASTER BRAKE CONTROL, S/N 2980 AND BELOW (5.1) - BRAKES

1

863426R1

PAD

brake pedal

2шт.

2

614251R1

BAR

brake locking, Includes: pin

1шт.

19372R1

PIN,3.17mm OD x 22.23mm L, Coiled

1шт.

3

163426C1

PEDAL

brake LH, Includes: bolt and nut

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

163427C1

PEDAL

brake RH, Inclues: bolt and nut

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

184166C2

SUPPORT ASSY.

SUPPORT, brake, Includes: bolt and nut

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

195509C1

SUPPORT

brake lever, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

7

192953C1

HUB

brake pedal LH

1шт.

8

192954C1

HUB

brake pedal RH

1шт.

9

277523R1

BUSHING

brake pedal pivot

8шт.

10

151478C1

SPACER,1 1/4" Tube x 1 5/8"

brake pivot shaft inner

1шт.

11

398763R2

SPRING

brake pedal return

2шт.

12

192969C1

ANGLE

brake pedal return spring, Includes: nut and screw

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

13

195567C1

ROD

brake and clutch pedal, Includes: pin and washer

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

14

654385R1

SPACER,26.21mm ID x 31.75mm OD x 19.05mm L

brake pivot shaft LH

2шт.

15

187628C1

ANGLE

CLIP, brake pivot shaft retainer

2шт.

16

165901C1

BAR

brake pivot shaft support, Includes: nut and screw

5шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 ZNP slt-truss-hd

1шт.

17

192973C2

ROD

brake pedal, Includes: 2 pins

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1.781 clevis

1шт.

18

192951C1

HUB

brake link LH

1шт.

19

192952C1

HUB

brake link RH

1шт.

20

192972C1

BAR

brake cylinder, Includes: 2 pins

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1.781 clevis

1шт.

21

195515C2

SUPPORT ASSY.

SUPPORT, brake master cylinder, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

22

195510C1

SUPPORT

master brake cylinder LH

1шт.

23

195511C1

SUPPORT

master brake cylinder RH

1шт.

24

222834C91

MASTER CYLINDER,124.46mm Stroke

CYLINDER ASSY, master brake, Includes: Ref. 25 thru 31and a bolt and nut

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

25

868351R1

CAP

master cylinder filler, Includes: bolt and washer

1шт.

1800520

BOLT, 1/4 x 2-3/4 type 5

1шт.

25707R1

WASHER,.281" x 5/8" x .075", HDN

.281 x .625 x .051

1шт.

26

673857R1

SLEEVE

automatic adjuster

1шт.

27

222844C1

GASKET

filler cap

1шт.

28

222845C1

WASHER

RING, external retainer

1шт.

29

222841C1

ROD

master cylinder push, Includes: nut

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

30

222842C1

WASHER

RETAINER, push rod

2шт.

31

222846C1

INSERT

fitting body

2шт.

32

187580C1

SHAFT

ROD, brake rear pivot, Includes: pin and washer

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

33

(Not used in this application)

1шт.

34

(Not used in this application)

1шт.

201594C1

PACKAGE

KIT, cylinder repair

1шт.
