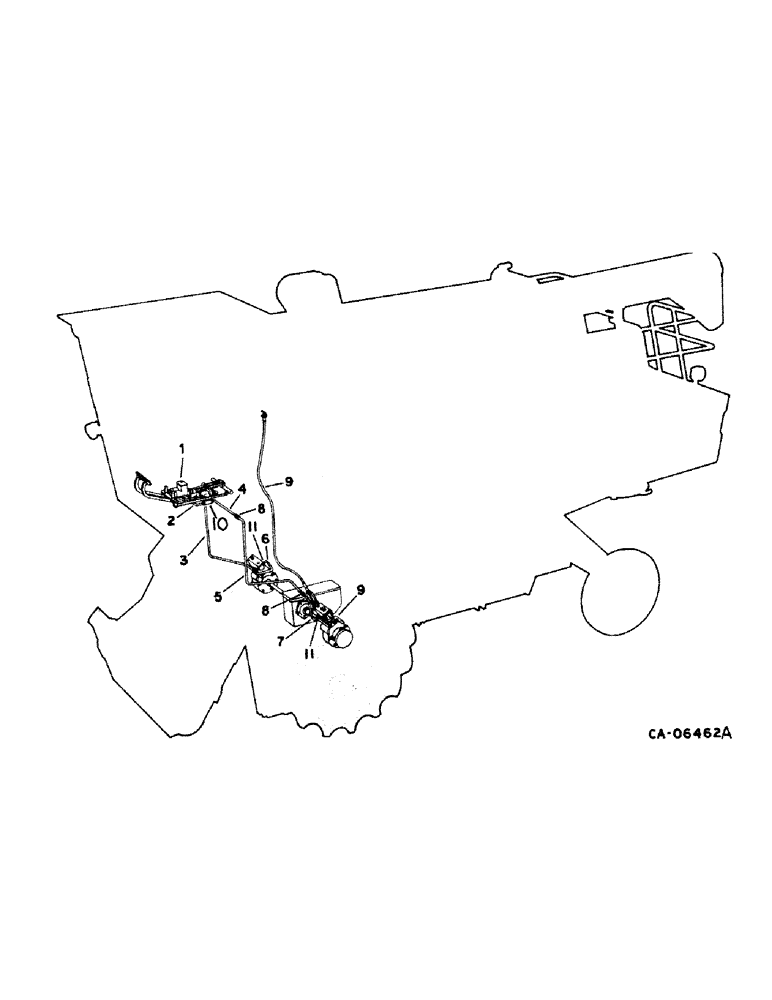

Запчасти Case IH 1420 (04-01) - BRAKE, BRAKE DIAGRAM (5.1) - BRAKES

1

CONTROLS, refer to this group under master brake controls

1шт.

2

1301858C1

TUBE

ASSY, master brake cyl to equalizer valve, Start Serial: 2981

2шт.

3

187767C1

TUBE

ASSY, RH brake upper to 2980

1шт.

3

187768C1

TUBE

ASSY, RH brake intermediate to 2980

1шт.

3

1301865C1

HYD TUBE

TUBE ASSY, RH brake to equalizer valve, Start Serial: 2981

1шт.

4

183913C1

TUBE

ASSY, LH brake upper to 2980

1шт.

4

1301864C1

TUBE

ASSY, LH brake upper to equalizer valve, Start Serial: 2981

1шт.

5

183914C1

TUBE

ASSY, LH brake middle to 2980

1шт.

5

1301863C2

TUBE

ASSY, LH brake intermediate, Start Serial: 2981

1шт.

222-1002

TUBE NUT,1/4" Tube, Inv Fl

NUT, 1/4 inv. flare tube

1шт.

6

1301829C1

TUBE

ASSY, RH brake lower to wheel brake cylinder

1шт.

7

183915C1

TUBE

ASSY, LH brake lower to wheel brake cylinder

1шт.

8

442336

SUPPORT TUBE

UNION, 7/16-24 brass

3шт.

9

BRAKE, refer to this group under master and parking brake

1шт.

10

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

1шт.

11

442362

PIPE FITTING

CONNECTOR, 1/8-27 inverted flared, in wheel cylinder

2шт.

515-2863

CLAMP,1/4", 3/8" Bolt

1/4 OD tube, Includes: screw and nut

4шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.
