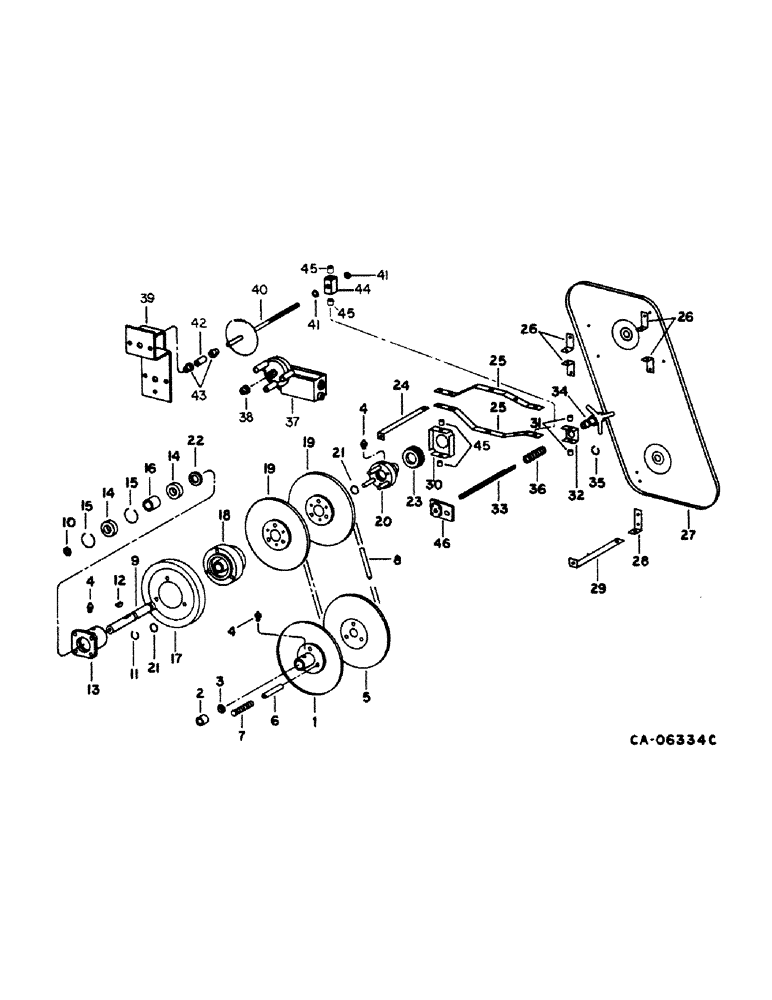

Запчасти Case IH 1420 (24-03) - CLEANING FAN AND DRIVE, FAN DRIVE (15) - CLEANING

1

185023C93

PULLEY

ASSY, fan driven adjustable, 11.24 in. OD, 285.5 mm OD, Includes Ref. nos. 2 and 3

1шт.

2

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

fan driven adjustable pulley

2шт.

3

537545R92

SEAL

lube, used with pulley 185023C91 and 185023C92 only

1шт.

3

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 class 5, used with pulley 185023C93

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, lub

1шт.

5

185020C2

PULLEY ASSY.

PULLEY ASSY, fan driven fixed, 11.24 in. OD, 285.5mm OD, Includes: bolt, nut and washer to 5500

1шт.

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

3/8 x 2-3/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 phc hdn

1шт.

5

1309014C1

PULLEY ASSY.

PULLEY ASSY, fan driven fixed, 11.24 in. OD, 285.5mm OD, Includes: bolt, nut and washer, Start Serial: 5501

1шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1/2 x 3 phc type 8

1шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

.531 x 1.602 x .188 phc hdn

2шт.

6

185019C2

SLEEVE,8.18mm ID x 14.27mm OD x 69.85mm L

3шт.

7

1302540C1

SPRING

fan drive pulley, Includes: bolt, nut and washer

3шт.

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

5/16 x 3-1/2 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

8

599060R1

V-BELT,31.75 mm W

Fan drive, 64 in. OC, 1625.6 mm OC 31.75 mm W

1шт.

9

194853C3

SHAFT

elevator and fan drive

1шт.

10

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER, 1/2 x 1-1/2 x 3/16 hdn phc, Includes: screw, bolt and washer

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flange w/scotch grip

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

20824R1

WASHER

.344 x 1.500 x .054

1шт.

11

609053R1

SNAP RING,#125, Ext

Ring, Snap, , inner drive bearing #125, Ext

1шт.

12

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

13

192418C1

HUB

elevator and fan drive

1шт.

14

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING, elevator and fan drive

2шт.

15

360936R1

RING

fan drive shaft snap

2шт.

16

152926C1

SPACER

1-5/16 ID x 1-5/8 OD x 1.88, Includes: bolt, nut and washer

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 tyep 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

PULLEY ASSY, fan driven, refer to group 20 under belt drive RH side

1шт.

18

183333C1

HUB

fan drive fixed

1шт.

19

183288C1

PULLEY

fan driven adjusting, 11.0 in. OD, 279.4mm OD, Includes: screw

2шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

20

185286C91

HUB

ASSY, fan driver adjusting

1шт.

25095R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3.500 pln hdn dowel

3шт.

21

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 ID x 1-1/2 OD x 1/8

1шт.

22

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER, 1.28 x 1.88 x .18 hdn phc

1шт.

23

168215C91

BALL BEARING

BEARING, fan jackshaft

1шт.

24

194847C1

SUPPORT

fan drive control, Includes: screw, nut, pins and washers

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1.500 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

21752R1

WASHER

.406 x 1.500 x .054

1шт.

25

194850C2

SUPPORT

fan control, Includes: bolt, nut and washers

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

26

194756C2

ANGLE

fan drive pulley shield, Includes: bolt and nut

4шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27

186647C1

SHIELD

fan drive, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

28

185066C1

ANGLE

lower shield, Includes: pins and washer

1шт.

21888R1

HEADED PIN,3/8" x 3/4", G2

PIN, 3/8 x .750 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

29

186283C1

SUPPORT

fan shield, replaces 194847C1, Includes: screw and nut

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

30

194852C2

SUPPORT

fan drive, Includes: bolt, nut and washers

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

31

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

to 5500

2шт.

32

194848C1

YOKE

fan handle, Includes: bolt, nut and washers to 5500

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

33

194849C1

ROD

GAGE, fan speed control, Includes: nut to 5500

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

34

169705C1

HANDLE

fan speed control, Includes: washer to 5500

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

35

454417R1

SNAP RING,#100, Ext

Ring, Snap, , fan speed control handle #100, Ext to 5500

1шт.

36

12209D

SPRING

fan speed control handle to 5500

1шт.

37

126573C1

MOTOR, ELECTRIC

MOTOR ASSY, fan variable speed, Includes: bolt and washers

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

38

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

motor

1шт.

39

181199C1

SUPPORT ASSY.

SUPPORT ASSY, control motor, Includes: bolt and nut

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

40

181202C1

SHAFT ASSY.

STUD ASSY, adjusting gear, Includes: nut, pin and washer

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

17145R1

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

22258R1

WASHER

.656 x 1.000 x .027

1шт.

41

1302054C1

WASHER,15.95mm ID x 25.4mm OD x 1.52mm Thk

control thrust

2шт.

42

181205C1

SPACER

adjusting gear stud

1шт.

43

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

adjusting gear stud

2шт.

44

181206C1

BLOCK

adjusting gear stud, Includes: bolt and washers

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

45

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

4шт.

46

1319888C1

PLATE

fan adjust stud, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.
