Запчасти Case IH 1420 (24-01) - CLEANING FAN AND DRIVE, CLEANING FAN AND SHIELDS (15) - CLEANING

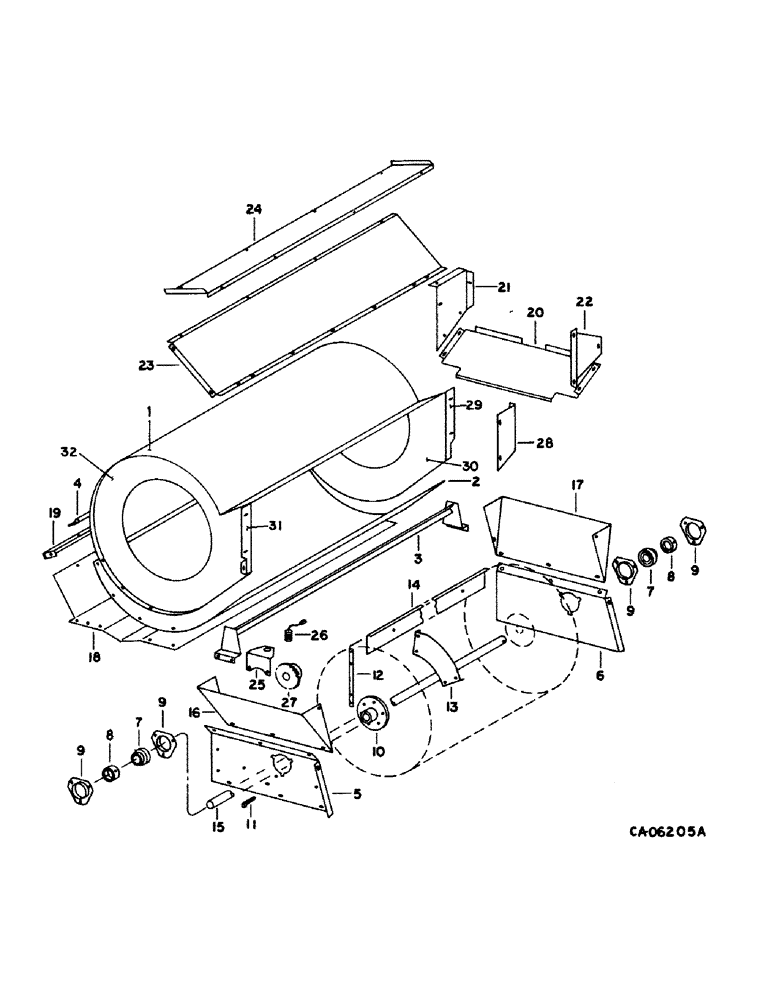

Схема запчастей Case IH 1420 - (24-01) - CLEANING FAN AND DRIVE, CLEANING FAN AND SHIELDS (15) - CLEANING
27
26
17
10
22
9
9
29
18
7
8
20
23
3
24
7
31
2
1
6
28
12
15
4
14
9
16
9
32
21
5
11
13
19
30
8
25

Артикул

Название

Примечание

Количество

1

SHEET, fan housing top (NSS), note, Includes: screw and nut

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

2

193806C1

SUPPORT

fan housing bottom, Includes: screws, nuts and bolt

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

193808C1

SUPPORT ASSY.

SUPPORT ASSY, fan rear, Includes: bolt, screw and nuts

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

183087C1

ANGLE

fan front support, Includes: screw, bolt and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

183078C1

SUPPORT

fan shaft bearing LH, nut, screw and washer

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

6

183079C1

SUPPORT

fan shaft bearing RH, nut, screw and washer

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

7

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING ASSY, fan

2шт.

8

455104R11

COLLAR

ASSY, bearing locking

2шт.

9

180955C1

FLANGED BEARING,0.375"

FLANGE, fan shaft bearing, Includes: nut and screw

4шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

10

1303095C1

HUB ASSY.

HUB ASSY, fan

2шт.

11

Q1479

KEY, 3/8 x 2 gib

2шт.

12

185483C1

BAR

fan spoke, Includes: screw and nut

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

185484C1

SUPPORT

fan blade

12шт.

14

193739C1

BLADE

cleaning fan, Includes: screw and nut

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

193740C1

SHAFT

cleaning fan to 5500

1шт.

15

1310025C1

SHAFT

cleaning fan, Start Serial: 5501

1шт.

16

183471C1

SUPPORT

fan intake LH, Includes: screw, nut and washer

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

17

183472C1

SUPPORT

fan intake RH, Includes: screw, nut and washer

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

18

186396C1

SUPPORT

fan bottom, Includes: screws and nuts

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

19

183086C1

SUPPORT

fan bottom, Includes: bolt, screw and nuts

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20

183080C1

SUPPORT

fan shield housing to outer brg, Includes: bolt and nut

2шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21

183082C1

SUPPORT

fan shield forward LH

1шт.

21

183083C1

SUPPORT

fan shield forward RH, Includes: bolts and nut

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

22

183084C1

SUPPORT

fan shield rear filler, Includes: bolts and nuts

2шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1/4 x 1/2 flange lock

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

23

183066C1

SUPPORT

pan to auger bed, Includes: bolts, nut and screw

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

24

183067C2

SUPPORT

chaffer front seal, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

25

1301240C2

SUPPORT

fan speed tach, Includes: screw

1шт.

431662

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 c/pt znp hdl/s set

1шт.

26

1301241C1

SENSOR

CONVERTOR, reluctance pickup, Includes: nut

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 zn stamped

1шт.

27

198526C1

SPROCKET ASSY.

SPROCKET, fan speed tach

1шт.

28

186715C1

SUPPORT

fan side LH

1шт.

28

186716C1

SUPPORT

fan side RH, Includes: bolt and nut

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 pt lock type 5

1шт.

29

186714C2

EXTENSION

fan sheet filler, RH, note, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 pt lock

1шт.

30

SECTION, fan housing side (NSS), RH, note

1шт.

31

186713C2

KIT

EXTENSION, fan sheet filler, LH, note, screw

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

32

SECTION, fan housing side (NSS), LH, note

1шт.

1324000C91

STRIPPER PACKAGE

PACKAGE, fan housing, consists of section, fan housing, LH (NSS), section, fan housing, RH (NSS), sheet, top (NSS)

1шт.

186713C2

KIT

EXTENSION, filler, LH

1шт.

186714C2

EXTENSION

filler, RH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock, instructions (NSS)

1шт.
