Запчасти Case IH 1420 (21-14) - THRESHING ROTOR AND CONCAVES, CONCAVE AND CONTROL (14) - THRESHING

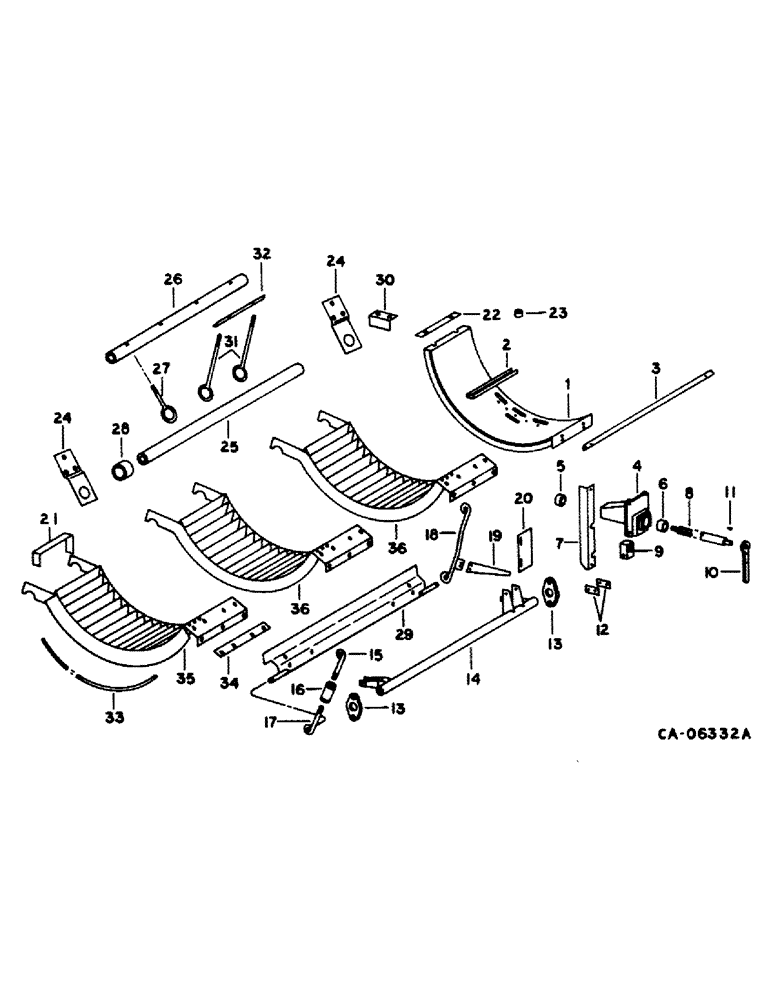

Схема запчастей Case IH 1420 - (21-14) - THRESHING ROTOR AND CONCAVES, CONCAVE AND CONTROL (14) - THRESHING
13
21
5
11
13
30
31
16
8
23
29
36
6
20
19
24
25
35
2
28
18
7
26
27
22
10
34
9
14
17
15
33
12
32
24
1
4
36
3

Артикул

Название

Примечание

Количество

1

1303001C2

GRATE ASSY.

GRATE ASSY, 2-position slotted

3шт.

1

1303002C3

GRATE

GRATE ASSY, 2-position keystock, Includes: bolt, nut and screw

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

2

191536C1

CHANNEL

grate adjusting, Includes: screw and nut

18шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

1303008C1

SUPPORT

grate, Includes: screw and nut

3шт.

1302788C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1 1/4", Gr 8

Hex Flg, 3/8"-16 x 1 1/4 inch, Serr

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

192883C93

SUPPORT

HOUSING ASSY, concave control, Includes: nut and screw and Ref. nos. 5 and 6

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

5

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

concave control hsg

1шт.

6

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

concave control hsg

1шт.

7

182577C1

ANGLE

concave control housing support, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

8

192885C1

SHAFT

concave adjusting, Includes: nut, pin and washer

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Replaces 20033R1 5/8"-11, GB

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

.656 x 1.312 x .095 phc hdn

1шт.

9

192886C1

NUT

concave control adjusting

1шт.

10

170282C1

HANDLE

concave control ratchet

1шт.

11

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

12

186650C1

BAR

concave control upper, Includes: pins

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22899R1

HEADED PIN,1/2" x 2 3/8"

PIN, HEADED, 1/2" x 2 3/8"

1шт.

21814R1

HEADED PIN,1/2" x 3"

PIN, 1/2 x 3 hd type 1

1шт.

13

1319251C2

SUPPORT

HUB, concave control shaft, replaces 192890C1

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

14

195036C1

LEVER ASSY.

LEVER ASSY, concave control, Includes: pins

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN, 1/2 x 1.438 hd type 1

1шт.

15

1310183C1

BOLT,1/2" - 13 x 120mm, Cl 5

concave adj LH thread

1шт.

16

M383D

TURNBUCKLE

concave adjusting

1шт.

17

1310182C1

BOLT,1/2" - 13 x 70mm, Cl 5

concave adj RH thread, Includes: nut

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18

186027C1

ROD ASSY.

ROD ASSY, concave control

1шт.

19

186029C1

BAR

concave indicator, Includes: nut

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

20

188168C1

PLATE

BAR, concave indicator, Includes: screw

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

1шт.

21

1309425C1

CHANNEL

concave filler, for 3/16 in. dia. rod

1шт.

21

1309424C1

CHANNEL

concave filler, for 1/4 in. dia. rod, replaces 194036C91

1шт.

22

186784C2

BAR

grate hanger

3шт.

23

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

Grate and cage bar, Includes bolt, nut and washer 1/2" X-Strng Pipe x 9/16"

6шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 cad p/t lock type 8

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

24

195253C1

SUPPORT

concave anchor, Includes: bolt and nut

2шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

25

195255C1

PIPE

concave control

1шт.

26

193790C2

TUBE

PIPE, concave

1шт.

27

195254C1

BOLT,1/2" - 13 x 6"

concave clamp eye, Includes: nut

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

28

166237C1

SPACER

2.0625 x 2.5 x 1.75, replaces 1319060C1

1шт.

29

191401C1

SUPPORT ASSY.

SUPPORT ASSY, concave anchor, Includes: nut, pin, washer and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

607895R1

WASHER

.531 x 1.000 x .105

1шт.

1302787C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8

BOLT, Hex Flg, 3/8"-16 x 1", Serr, G8

1шт.

30

185266C1

ANGLE

lower concave pipe, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

31

181451C1

BOLT,1/2" - 13 x 305mm

concave truss rod, for rice, Includes: nut

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

32

181453C1

SUPPORT

concave truss rod, for rice, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

33

186044C2

ROD

concave, 3/16 in. dia. rod

90шт.

33

194257C2

ROD

concave, 1/4 in. dia. rod

42шт.

34

193859C1

PLATE

BAR, concave wire retainer, Includes: nut and screw

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

3/8 x 1 t/hdcr serrated

1шт.

35

183289C4

CONCAVE

ASSY, front, replaces 1319188C2, w/3/16 in. dia. rod, includes ref no. 33

1шт.

35

193985C5

CONCAVE

ASSY, front, replaces 1319186C2, w/1/4 in. dia. rod, includes ref no. 33

1шт.

36

183292C4

CONCAVE

ASSY, nos. 2 & 3, replaces 1319189C2, w/3/16 in. dia. rod, includes ref no. 33

1шт.

36

193986C5

CONCAVE

ASSY, nos. 2 & 3, replaces 1319187C2, w/1/4 in. dia. rod, includes ref no. 33

1шт.

1300673C91

PACKAGE

concave filler, for 3/16 in. dia. rod, parts accessory, package of 6 of ref. no. 21

1шт.

1300716C91

CHANNEL

PACKAGE, concave filler, for 1/4 in. dia. rod, parts accessory, package of 6 of ref. no. 21

1шт.

Выбрано товаров: 85
