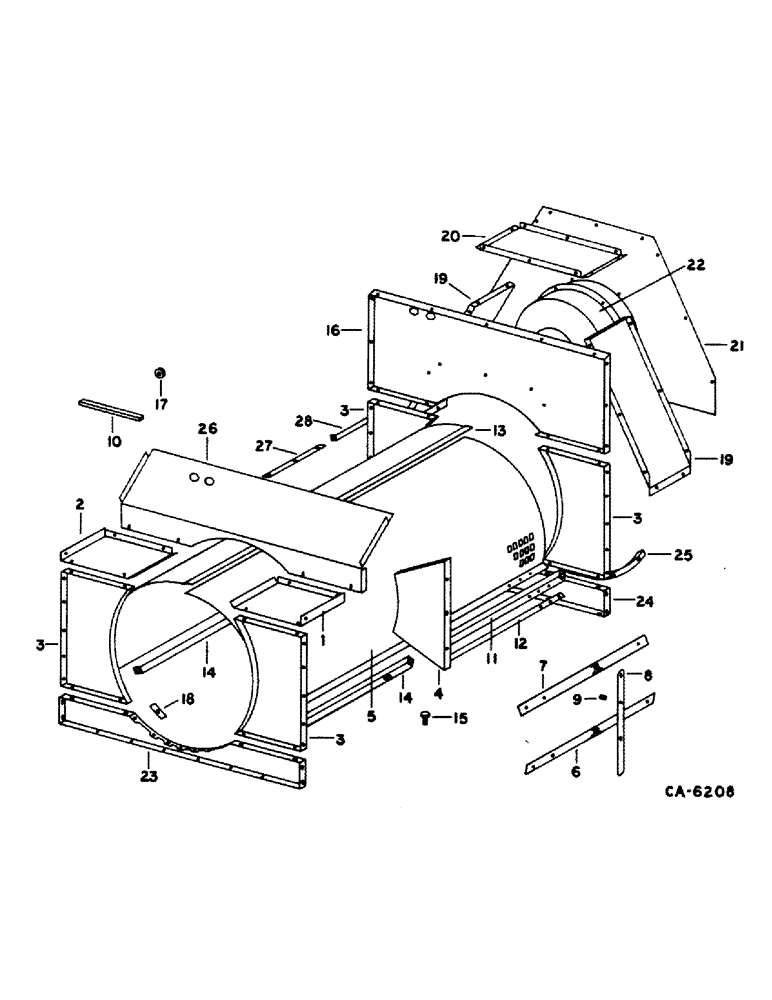

Запчасти Case IH 1420 (21-11) - THRESHING ROTOR AND CONCAVES, CAGE (14) - THRESHING

1

186456C1

SUPPORT

cage front LH, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

186457C1

SUPPORT

cage front RH, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

194183C1

SUPPORT

rotor cage, Includes: screws and nuts

4шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/26 flange lock

1шт.

4

194184C1

SUPPORT

rotor cage middle, Includes: screw and nut

3шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

183273C2

CAGE

rotor LH, Includes: screws and nut

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, , w/Scotch Grip Sltd Truss Hd, 3/8"-16 x 3/4"

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

183267C1

SUPPORT ASSY.

SUPPORT ASSY, lower movable, Includes: pin and washer

1шт.

177923

COTTER PIN

1/8" x 3/4"

1шт.

95-11041

WASHER,3/8"

.406 x .812 x .051 pln

1шт.

7

183268C1

SUPPORT ASSY.

SUPPORT ASSY, upper movable, Includes: pin and washer

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

95-11041

WASHER,3/8"

.406 x .812 x .051 pln

1шт.

8

183272C1

HANDLE

movable vanes, Includes: pins and washer

1шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

95-11041

WASHER,3/8"

.406 x .812 x .051 pln

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

9

371121R1

SPRING, movable vane handle

1шт.

10

191498C1

SEALING STRIP

grain tank front support

1шт.

11

185386C1

SUPPORT

ASSY, cage LH, Includes: nut

1шт.

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT, 3/8 x 1 hex flange w/scotch grip

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

183323C1

STRAP

BAR, cage grate

1шт.

13

194182C3

CAGE

rotor RH, Includes: nut

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, , w/Scotch Grip Sltd Truss Hd, 3/8"-16 x 3/4"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

188333C1

SUPPORT

ASSY, cage LH & RH, Includes: nuts and screw

2шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flange, w/scotch grip

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

SCREW, 3/8 x 1 hex-hd flange, w/scotch grip

1шт.

15

352657C1

BOLT,Hex, 1/2" - 13 x 2"

concave stop, Includes: nut

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

16

186088C1

SUPPORT ASSY.

SUPPORT ASSY, rotor upper rear, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

17

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

1/4 in. ID

1шт.

17

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 in. ID

1шт.

18

1303204C1

BAR

cage filler, Includes: screw and nut

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

19

194185C1

SUPPORT

discharge side, Includes: nut and screw

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

193170C1

COVER

SUPPORT, discharge top, Includes: nut

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21

186073C1

SHEET

discharge rear

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

22

181485C1

RETAINER

rotor gear case cover, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23

183076C1

SUPPORT

front lower seal, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

24

181353C1

SUPPORT

rear lower cage LH

1шт.

24

181354C1

SUPPORT

rear lower cage RH, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

25

181355C1

ANGLE

rear cage support filler, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

26

186455C1

SUPPORT

grain tank front, Includes: screw and nut

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27

186785C2

REINFORCEMENT

BAR, cage reinforcement front

1шт.

28

182634C2

SUPPORT

STIFFENER, cage grate rear, Includes: screw and nut

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flg w/scotch grip

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.
