Запчасти Case IH 1420 (21-10) - THRESHING ROTOR AND CONCAVES, CONE (14) - THRESHING

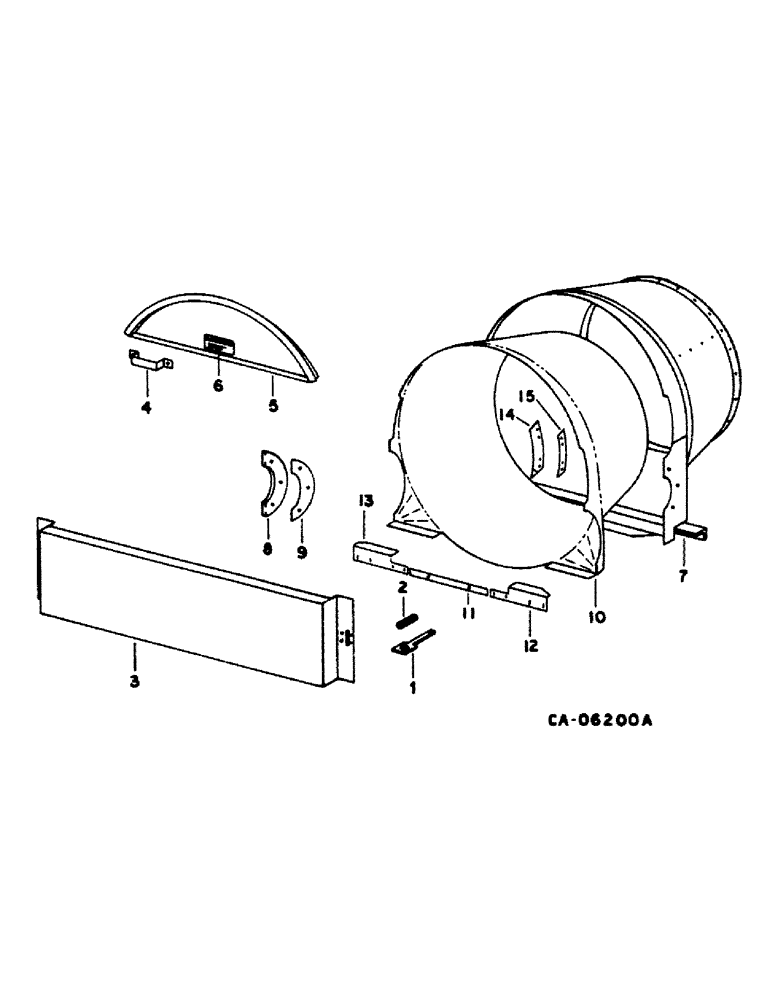

Схема запчастей Case IH 1420 - (21-10) - THRESHING ROTOR AND CONCAVES, CONE (14) - THRESHING
10
9
8
11
12
15
3
5
1
6
2
13
7
14
4

Артикул

Название

Примечание

Количество

1

454502R1

LATCH

separator front door, Includes: pin and washer

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x ,051

1шт.

2

M296

SPRING

front door latch

2шт.

3

194211C1

DOOR

separator front

1шт.

4

160638C1

HANDLE

rotor front door, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

1300208C91

DOOR

rotor front, for grain and corn, Includes: Ref. no. 6

1шт.

5

1300300C91

DOOR

DOOR, rotor front, for rice, Includes: screw, nut and Ref. no. 6

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

179749C2

PRODUCT GRAPHIC

danger

1шт.

7

186032C1

BODY

CONE ASSY, transition, Includes: screws and nuts

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

186917C1

SCREW

SCREW, 3/8 x 1 flange lock w/scotch grip

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

8

195202C1

SEAL

feeder

2шт.

9

195409C1

PLATE

seal back up, Includes: nut

2шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

1309909C1

INSULATOR

LINER, adapter, for rice

1шт.

11

1308519C1

BAR

feeder door, for rice

1шт.

12

1308520C2

SUPPORT ASSY.

SUPPORT, cone liner front LH, for rice

1шт.

13

1308521C2

SUPPORT ASSY.

SUPPORT, cone liner front RH, for rice, Includes: screw, nut and washer

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 phc hdn

1шт.

14

1309910C1

SUPPORT ASSY.

FILLER, cone section, for rice

1шт.

15

1309911C1

SUPPORT ASSY.

COVER, cone section, for rice, Includes: screw and nut

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

Выбрано товаров: 32
