Запчасти Case IH 1420 (21-08) - THRESHING ROTOR AND CONCAVES, DISCHARGE BEATER (14) - THRESHING

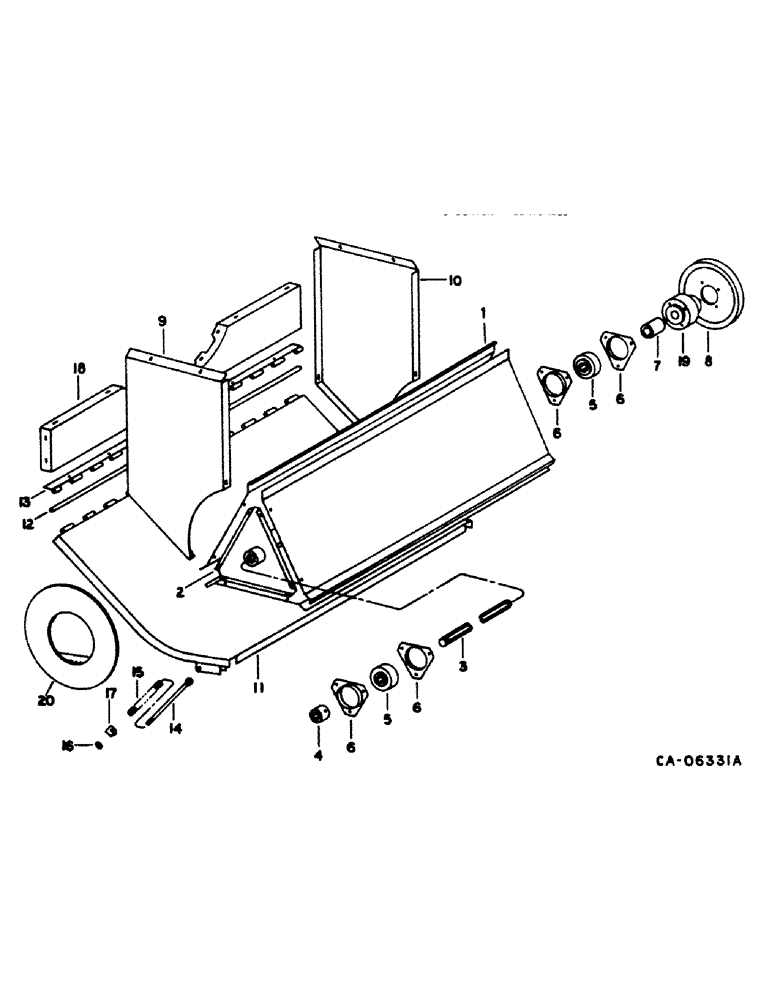

Схема запчастей Case IH 1420 - (21-08) - THRESHING ROTOR AND CONCAVES, DISCHARGE BEATER (14) - THRESHING
11
7
6
2
12
6
6
4
19
8
5
17
10
18
3
15
13
16
14
6
20
9
5
1

Артикул

Название

Примечание

Количество

1

1319268C1

SUPPORT

BLADE, beater, replaces 182501C1, furnish beater package 1300744C91, Includes: screw and nut to 10250

3шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp-slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock to 10250

1шт.

2

1319266C1

HUB

ASSY, beater, replaces 183129C2, furnish beater package 1300744C91, Includes: screw and nut

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

3

195118C1

SHAFT

discharge beater, Includes: bolt, nut and washer

1шт.

4

1302104C1

HUB

BUSHING, beater fixed

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

22481R1

WASHER

1.406 x 2.250 x .054

1шт.

5

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, discharge beater

2шт.

6

180955C1

FLANGED BEARING,0.375"

FLANGE, beater bearing, Includes: nut

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

7

632147R1

SPACER

beater driven pulley, Includes: washers

1шт.

22481R1

WASHER

1.406 x 2.250 x .054

1шт.

22482R1

WASHER

1.406 x 2.250 x .105

1шт.

8

PULLEY ASSY, beater drive, refer to group 20 under belt drive RH

1шт.

9

181386C1

SUPPORT

discharge LH, Includes: screws and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

10

181387C1

SUPPORT

discharge RH, Includes: screws and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

11

1303015C1

BOTTOM

ASSY, beater

1шт.

12

589386R1

ROD

beater bottom pivot

1шт.

13

181351C1

HINGE

beater bottom, Includes: screw, nut and washer

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

14

182547C1

BOLT,3/8" - 16 x 210 mm

beater eye, Includes: pins

2шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

15

182699C1

SPRING

beater

2шт.

16

1303000C1

RUBBER WASHER

rubber, Includes: nut

2шт.

473371R1

FLANGE NUT

NUT, 3/8-16 flange lock

1шт.

17

182549C1

ANGLE

beater spring, Includes: screw and nut

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18

SUPPORT, rear lower, refer to this group under cage

1шт.

19

1319402C1

HUB

beater drive pulley, replaces 195216C2, Includes: bolt, nut and washer

1шт.

24866R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

Hex, 1/2"-13 x 2 1/2", G8

1шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

26273R1

WASHER

.531 x 1.062 x .134 phc hdn

1шт.

20

1319230C1

HUB

END ASSY, hubpackage 1300744C91 may also be furnished to 10250

2шт.

1300744C91

PACKAGE

beater, consists of to 10250

1шт.

1319268C1

SUPPORT

BLADE, beater

1шт.

1319266C1

HUB

beater, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

Выбрано товаров: 52
