Запчасти Case IH 1420 (21-07) - THRESHING ROTOR AND CONCAVES, ROTOR DRIVE GEAR CASE (14) - THRESHING

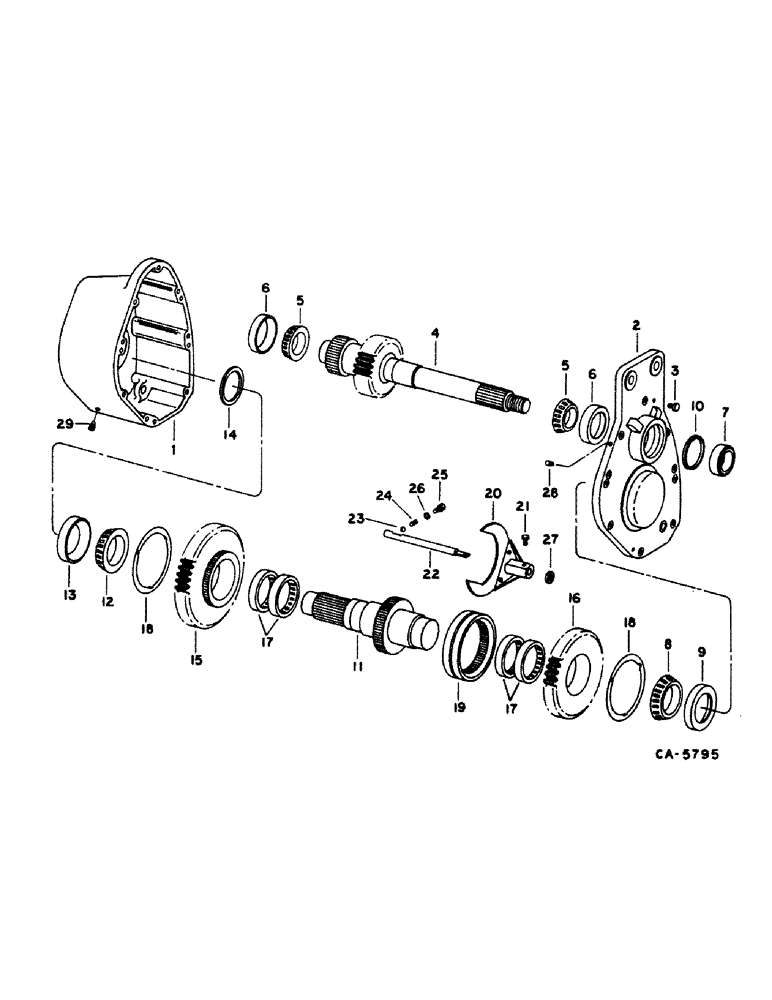

Схема запчастей Case IH 1420 - (21-07) - THRESHING ROTOR AND CONCAVES, ROTOR DRIVE GEAR CASE (14) - THRESHING
16
20
29
6
12
17
2
13
19
7
11
21
8
5
23
24
22
5
1
27
26
9
15
17
10
3
18
18
14
28
4
25
6

Артикул

Название

Примечание

Количество

186465C91

CASE

GEAR CASE ASSY, rotor drive, Includes: Ref. nos. 1 thru 29

1шт.

1

186440C91

HOUSING ASSY.

HOUSING ASSY, rotor gear case, Includes: pin

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1.250 pln hdn dowel

1шт.

2

1303134C1

COVER

gear case, Includes: bolt and washer

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

3

152127H1

BREATHER,1/8"-27, Short

gear case

1шт.

4

186363C1

SHAFT

rotor drive input

1шт.

27821R1

LOCK NUT,1 1/4"-7, GB

NUT, 1-1/4 cad prev torque, Includes: washer

1шт.

25541R1

WASHER

1.312 x 2.500 x .150 phc hdn

1шт.

5

181250C91

ROLLER BEARING,50mm ID x 22.2mm Thk

BEARING, input shaft cone

2шт.

6

181251C1

CUP,84mm OD x 22.2mm Thk

BEARING, cup

2шт.

7

186404C1

BUSHING

input shaft

1шт.

8

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

output shaft cone

1шт.

9

376463C1

BEARING CUP

BEARING, output shaft cup

1шт.

10

1303140C91

OIL SEAL

input shaft oil

1шт.

11

186380C1

SHAFT

rotor drive output

1шт.

12

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

BEARING, output shaft cone

1шт.

13

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, cap

1шт.

14

1303139C91

OIL SEAL

rotor drive oil

1шт.

15

181237C1

GEAR

driven low speed, 67 T

1шт.

16

181238C1

GEAR

driven high speed, 52 T

1шт.

17

181239C91

BEARING, NEEDLE,63.5 mm ID x 73.164 mm OD x 19.05 mm

BEARING, driven gear needle

4шт.

18

181240C1

THRUST WASHER

2шт.

19

181241C1

COLLAR

shift

1шт.

20

186371C1

FORK

ASSY, shift

1шт.

21

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, 3/8-24 x 1 cup-pt sq-hd set, Includes: nut

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

22

194067C2

SHAFT

RAIL, shift

1шт.

23

17014R1

BALL

shift rail 7/16 dia

1шт.

24

107234C1

SPRING

compression

1шт.

25

9410357

PLUG

5/16 o-ring boss

1шт.

27

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

shift rail oil, replaces 549712R1

1шт.

28

FO445751

PLUG

1/2-18 hex-hd, replaces 444632

1шт.

29

50057K

PLUG

1/2 npt magnetic

1шт.

26

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

Выбрано товаров: 36
