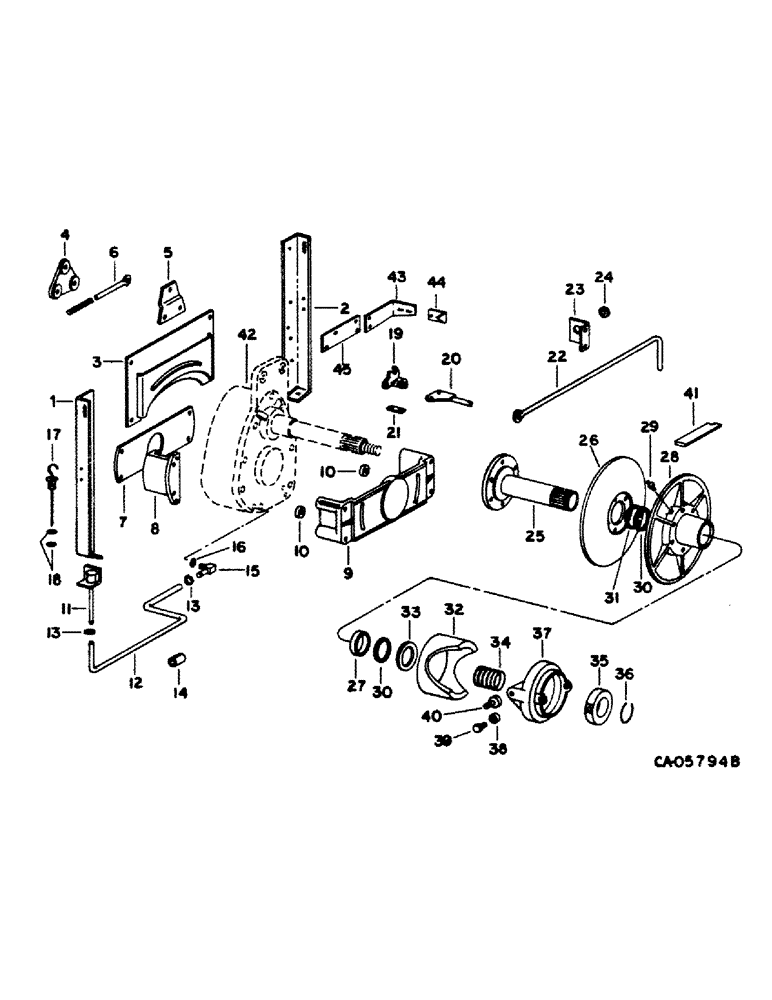

Запчасти Case IH 1420 (21-05) - THRESHING ROTOR AND CONCAVES, ROTOR DRIVE (14) - THRESHING

186364C1

RETAINER

torque sensing spring removal

1шт.

186365C1

BOLT

BOLT, torque sensing spring removal

2шт.

1319996C1

ROD,Hex, 3/8" x 10"

ASSY, torque sensing spring removal, Includes: nut

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

1

186459C1

SUPPORT

gear case LH

1шт.

2

186460C1

SUPPORT

gear case RH

1шт.

3

186200C1

SUPPORT ASSY.

SUPPORT ASSY, gear case, Includes: bolt and nut

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

4

188141C1

SUPPORT

gear case anchor

1шт.

5

188142C1

SUPPORT

gear case anchor

1шт.

6

186478C1

BOLT

gear case, Includes: nut, pins and washer

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2.375 hd type 5

1шт.

608081R1

WASHER

.656 x 1.750 x .090

1шт.

7

181445C1

SUPPORT

front gear case, Includes: bolt and washer

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

181446C1

BLOCK

front case support, Includes: bolt and washer

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

1303135C1

SUPPORT

gear case rear, Includes: bolt and washer

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

194077C1

SPACER

gear case, Includes: bolt and washer

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

11

193946C1

TUBE,12.7 mm OD

gear case oil gage, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

HOSE, gear case fill and drain, use 15 in. of 1/2 in. ID hose from 50 ft. roll marked 180718C1

1шт.

13

183699C1

CLAMP,#6, 0.44/0.78 Type M Worm

fill and drain hose

2шт.

14

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

fill and drain hose clamp

1шт.

15

188272C1

ELBOW

gear case

1шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 in. OD tube

1шт.

17

194066C91

DIPSTICK

GAGE ASSY, rotor gear case, includes ref no. 18

1шт.

18

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 ID x 1/8 class 5

2шт.

19

1303126C1

PIVOT

shaft, Includes: bolt and washers

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25536R1

WASHER

.531 x 1.062 x .095 phc hdn

1шт.

20

1303127C1

LARGE PIN

LEVER ASSY, shift, Includes: pins and washer

1шт.

28234R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1-1/2 type 5 hd

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21

1303133C1

BAR

shift lever, Includes: pins and washer

1шт.

21886R1

HEADED PIN,1/4" x 1"

PIN, 1/4 x 1 hd type 1

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

22

1303131C1

ROD

shift arm control, Includes: pin and washer

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

23

1303137C1

ANGLE

shift rod, Includes: screw and nut

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

24

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

control rod

1шт.

25

193962C2

HUB

variable pulley

1шт.

26

193927C1

PULLEY

fixed half variable, 17.75 in. OD, 450.9mm OD, Includes: bolt and washer

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1-4 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

27

188839C91

BUSHING

ASSY, package variable pulley, consists of (2) bushing

1шт.

193965C91

SEAL

3шт.

28

193928C93

PULLEY ASSY.

PULLEY ASSY, adjustable half variable, 17.75 in. OD, 450.9mm OD, Includes: bolt, washer and Ref. nos. 27, 29 thru 31

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1-4 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

29

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

30

193965C91

SEAL

adjustable variable pulley

3шт.

31

537602R1

RING

pulley seal snap

1шт.

32

185416C1

CAM

rotor drive torque sensing

1шт.

33

188210C91

CAM FOLLOWER

BEARING ASSY, rotor drive thrust

1шт.

34

193936C2

SPRING

rotor drive torque sensing

1шт.

35

193938C1

HUB

cam follower

1шт.

36

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

hub cam follower retainer

1шт.

37

195247C91

YOKE

ASSY, torque sensing cam follower, Includes: Ref. no. 38

1шт.

38

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

cam follower yoke pivot

2шт.

39

194167C1

SCREW,5/8 - 11" x 1"

cam follower yoke pivot, Includes: nut and washer

2шт.

120371

NUT,1/2"-20, G5

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

40

193943C91

BEARING ASSY

BEARING, cam follower

2шт.

41

1302174C1

V-BELT,2361.48 mm L

Rotor Variable Drive 2361.48 mm L

1шт.

42

CASE ASSY, rotor drive, refer to this group under rotor drive gear case

1шт.

43

184246C1

ANGLE

gage support, replaces 186035C3, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

44

186031C2

ANGLE

rotor driven pulley gage, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

45

185397C1

SUPPORT

BAR, gage angle, Includes: bolt

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

1шт.
