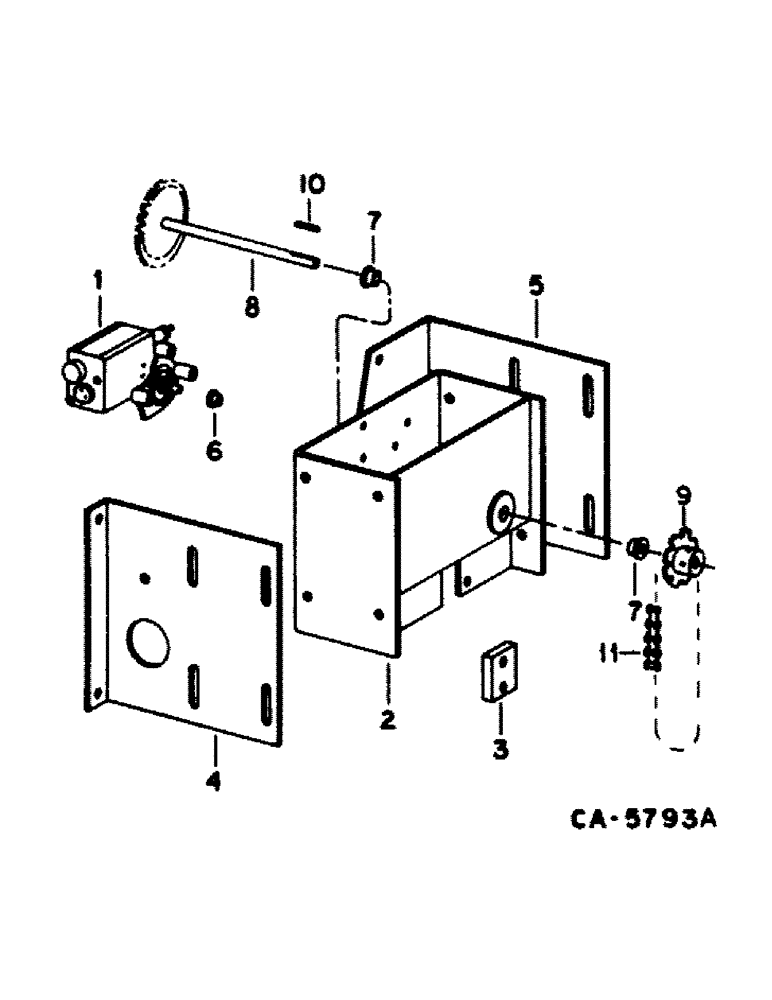

Запчасти Case IH 1420 (21-04) - THRESHING ROTOR AND CONCAVES, ROTOR DRIVE ADJUSTMENT (14) - THRESHING

1

126573C1

MOTOR, ELECTRIC

MOTOR ASSY, variable electric, Includes: bolt and washer

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

21843R1

WASHER

.406 x 1.000 x .209

1шт.

2

183227C1

SUPPORT ASSY.

SUPPORT ASSY, motor, Includes: screw, nut and washer

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

3

1302173C1

PAD

motor support cushion, Includes: bolt, nut and washers

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

4

194336C2

SUPPORT

rotor adjusting motor LH, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

1303113C1

ANGLE

rotor adjusting motor RH, Includes: screw, nut and washer

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

6

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

electric motor

1шт.

7

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

gear shaft

2шт.

8

194338C1

GEAR

SHAFT ASSY, rotor, Includes: pin and washer

1шт.

17080R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

9

194337C1

SPROCKET

control, 8T, Includes: screw and nut

1шт.

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

Cup Pt Sq Hd, 1/4"-20 x 3/4"

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

10

Q5024

KEY,3/16" Sq x 1", Par

1шт.

11

CHAIN ASSY, variable drive, use 31 links from a 10 ft. roll marked 569088R91, one connecting link 457113R91 and two offset link 457114R91

1шт.

457113R91

CHAIN LINK

LINK, #2040 double pitch connecting

1шт.

457114R91

CHAIN LINK

LINK, #2040 double pitch offset

2шт.
