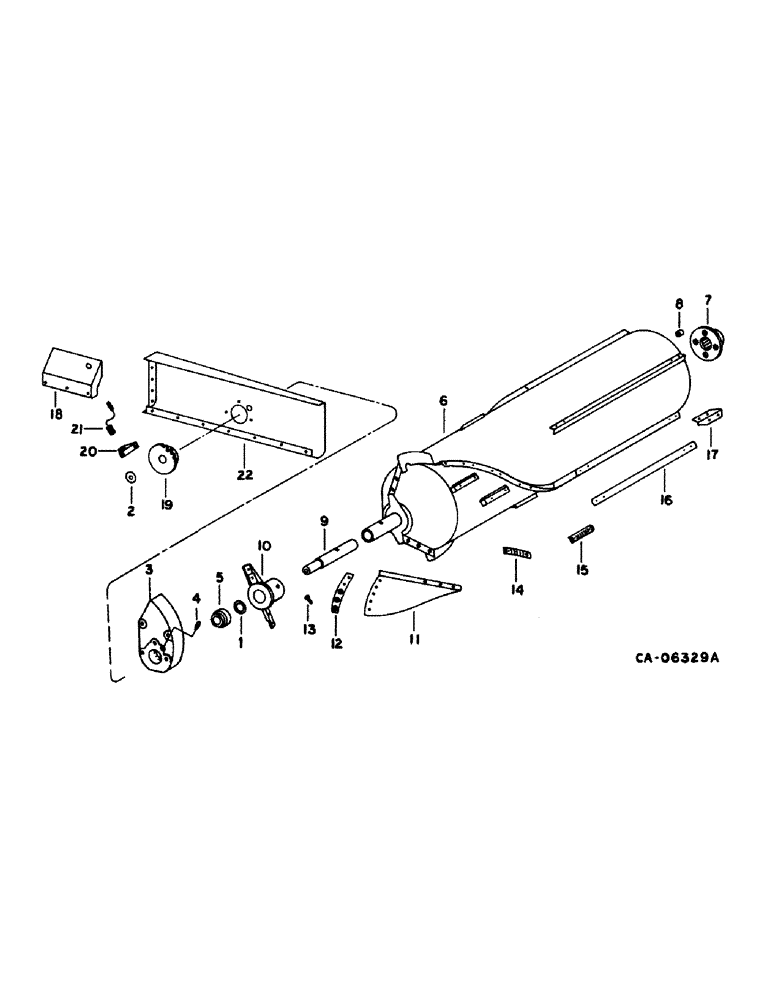

Запчасти Case IH 1420 (21-01) - THRESHING ROTOR AND CONCAVES, ROTOR, GRAIN AND CORN (14) - THRESHING

1

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER, front brg hsg

1шт.

2

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

rotor front shaft

1шт.

3

1309076C1

BEARING HOUSING

rotor front bearing, replaces 192956C2, Includes: screws, nuts, bolts and washers

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/2-28 str lub

1шт.

5

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

6

1303173C97

ROTOR

ASSY, threshing, Includes: ref nos. 7, 9, 10 and 13

1шт.

Per print, Ref. 6 does include rasp bars, Ref. 14, 15 and 16.

1шт.

7

1303175C91

HUB

COUPLING ASSY, rotor drive

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

.531 x 1.500 x .12 hardened

1шт.

8

186808C1

DAMPER

BUSHING, rotor drive coupling, package of 4

1шт.

9

188470C1

SHAFT

rotor front, Includes: bolt and washers

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 type 1

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

22811R1

WASHER

2.031 x 2.750 x .067

1шт.

10

183366C2

IMPELLER

rotor front, Includes: pins

1шт.

22109R1

HEADED PIN

PIN, 3/4 x 4.500 hd type 5

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

11

1957447C1

PACKAGE

BLADE KIT, rotor impeller, replaces package 186809C3, see SB 086 87, Includes: bolt, nut and washer

2шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

1шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

12

183253C2

BAR

wear, replaces package 183409C1, Includes: bolts, nut and washer

2шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

/531 x 1.250 x .188 phc hdn

1шт.

13

183254C1

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

SCREW, blade wear reinforcing bar, Includes: nut and washer

6шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

14

1310246C1

BAR

helical rasp 120 deg, one per package, replaces 1310255C1 which contained two per package, Includes: bolt, nut and washer

8шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phch dn

1шт.

15

1308668C1

RASP BAR

BAR, straight rasp, replaces package 1309129C1, Does Not Include Hardware

8шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex/hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

16

1303038C2

BAR

rotor rear straight, replaces package 180708C4, Includes: bolt and nut

4шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

16

1302103C3

BAR

rotor rear toothed, replaces package 1300084C3, Includes: bolt, nut and washer

4шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

17

183335C3

SUPPORT

EXTENSION, rear rotor bar, Includes: bolt, nut and washer

2шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

18

182844C2

GUARD ASSY.

SHIELD ASSY, rpm sensor, Includes: bolt

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

19

198527C1

ROTOR

multi-position tachometer rotor speed magnetic pick-up

1шт.

20

1301239C1

BRACKET

ANGLE, rotor tachometer magnetic pickup

1шт.

21

1301241C1

SENSOR

CONVERTOR, reluctance pickup, Includes: nut

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 zn stamped

1шт.

22

194206C3

SUPPORT

ASSY, front bearing, Includes: nut and screw

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

180953C92

KIT

PACKAGE, rotor rear extension bars, for straw chopper, consists of

2шт.

183335C3

SUPPORT

EXTENSION, rear rotor bar, Includes: bolt, nut and washer

2шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn, instrucitons (NSS)

4шт.

1324208C1

SHIM KIT

PACKAGE, rotor rasp shim, replaces 1319543C1, consists of (28) shim, .010 (NSS), (28) shim, .030 (NSS), (28) shim, .053 (NSS), (28) shim, .093 (NSS), instructions (NSS)

1шт.

1324031C1

PACKAGE

grain rotor separator angle bar support, consists of, (4) support, rear bar (NSS), (1) instructions (NSS)

1шт.
