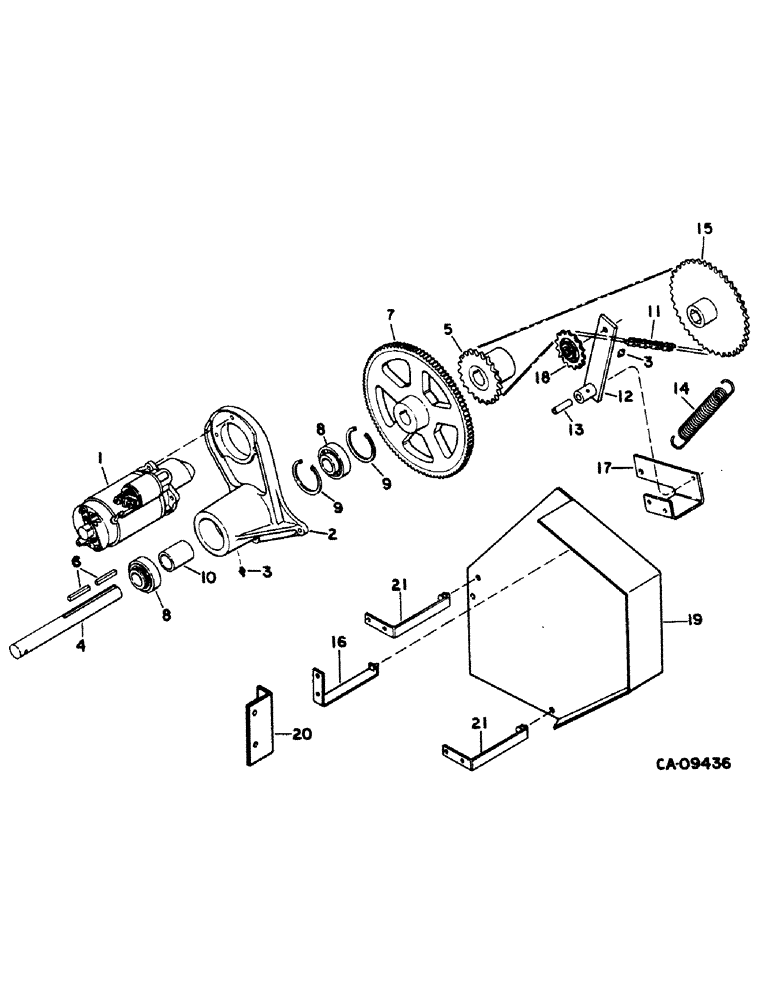

Запчасти Case IH 1420 (33-12) - FEEDER, FEEDER REVERSER, MACHINES WITH OUT ROCK TRAP (13) - FEEDER

1323571C92

FEEDER

PACKAGE, feeder reverser, consists of ref. nos. 1 thru plus additional parts shown in group 8, group 10 and group 33

1шт.

1

245927C91

STARTING MOTOR

MOTOR, feeder reverser, refer to group 8 for details under feeder reverser motor, Includes: bolt and nut

1шт.

1

245927C93R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

1

245927C93C

CORE-STARTER

Return Number, STARTING MOTOR

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, 3/8 x 2-1/4 znd type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

2

1321539C1

HOUSING

HOUSING, feeder reverser, Includes: screw and nut

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW, 3/8 x 1-1/2 h/hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

2шт.

4

1321534C1

SHAFT

SHAFT, reverser, Includes: pin, screw and washers

1шт.

28340R1

PIN,1/2" x 3", Coiled

Pin, 1/2" x 3", Coiled

1шт.

30190R1

WASHER,M39 x 78.5 x 7, HT

WASHER, 38.8 x 78 x 7mm PHC

1шт.

22042R1

WASHER

WASHER, .531 x 2.000 x .105

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

5

1329717C1

SPROCKET

SPROCKET ASSY, drive, 20T

1шт.

6

Q51

KEY,3/8" Sq x 2 1/2", Par

KEY, 3/8" Sq x 2 1/2", Par

2шт.

7

1321537C91

FLYWHEEL

FLYWHEEL W/RING GEAR, reverser

1шт.

8

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY, ball

2шт.

9

659676R1

SNAP RING,3.156", Int, #315

RING, 3.523 INT RET

2шт.

10

1321523C1

SPACER

SPACER, bearing

1шт.

11

CHAIN, feeder reverser, use 75 links from 10 ft. roll marked 1793D and 1 connecting link, 1317D

1шт.

1317D

LINK

LINK, #60H single pitch connecting

1шт.

12

1321933C3

SUPPORT

SUPPORT ASSY, idler, Includes: bolt, washer and nut

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, 3/8 x 3 znd type 5

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

WASHER, .406 x 1.125 x .134 PHC hdn

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

13

221338H1

SPACER,10.3mm ID x 15.88mm OD x 50.8mm L

SPACER, 5/8 x 2.000 tube

1шт.

14

1330032C1

SPRING

SPRING, idler return

1шт.

15

1329720C2

SPROCKET

SPROCKET ASSY, driver, 40T

1шт.

16

1321780C1

SUPPORT

SUPPORT ASSY, shield-short, Includes: bolt and nut

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT, 3/8-16 x 1 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

17

1321929C2

SUPPORT

SUPPORT, spring loaded idler bar, Includes: bolt, washer and nut

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

NUT, 1/2 flange lock

1шт.

18

629972R91

DRIVE SPROCKET,15T

SPROCKET ASSY, idler, 15T, Includes: bolt, washers and nut

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

BOLT, 5/8 x 3-3/4 znd type 5

1шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

WASHER, .656 x 1.312 x .188 PHC hdn

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

9413969

NUT,5/8"-11, GB

NUT, 5/8 CAD p/t lock type 5

1шт.

UA17298

SPACER,7/8" Tube x 1 1/16"

SPACER, .875 x 1.062 tube

1шт.

19

1330502C1

SHIELD

SHIELD W/PRODUCT GRAPHIC, feeder reverser, Includes: pin

1шт.

179749C2

PRODUCT GRAPHIC

PRODUCT GRAPHIC, danger

1шт.

480523R1

HAIR PIN COTTER

HAIR PIN COTTER, quick attachable

1шт.

20

1329960C1

ANGLE

ANGLE, shield upper front support, Includes: bolt and nut

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT, 3/8-16 x 1 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

21

1321864C1

SUPPORT ASSY.

SUPPORT ASSY, shield-long, Includes: bolt and nut

2шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT, 3/8-16 x 1 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.
