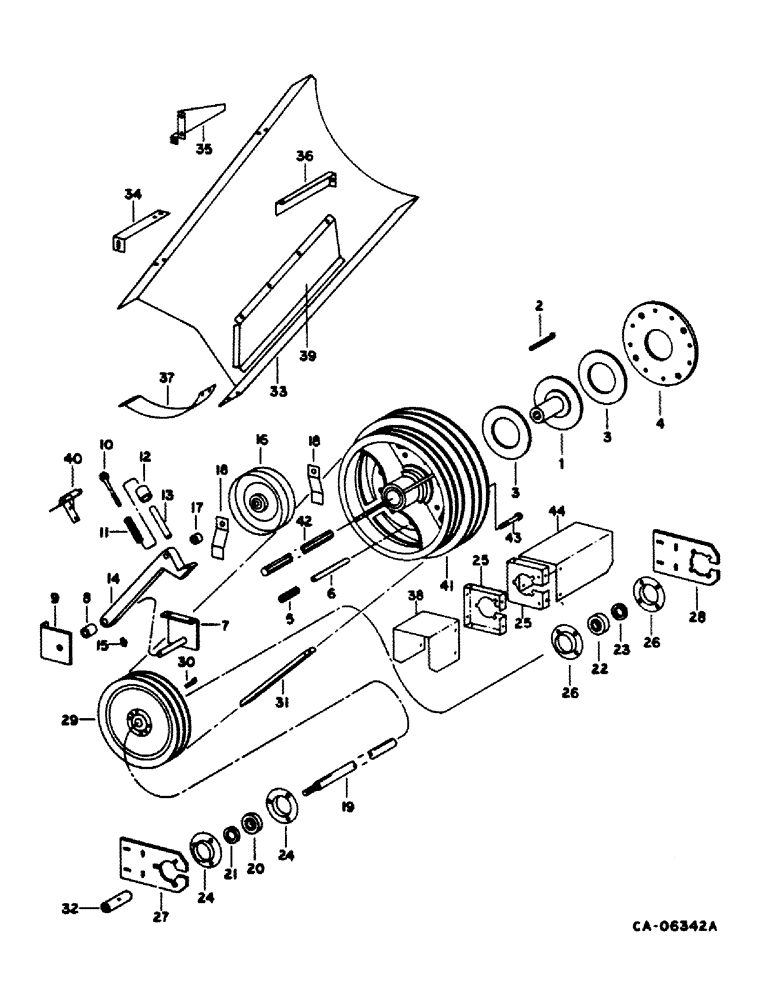

Запчасти Case IH 1420 (33-10) - FEEDER, FEEDER JACKSHAFT DRIVE (13) - FEEDER

1

1305154C2

HUB

feed conveyor slip clutch

1шт.

2

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

3

181579C1

DISC

DISC, friction clutch

2шт.

4

185955C1

PLATE

friction, Includes: washer

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

5

381466R1

SPRING

slip clutch

8шт.

6

181583C2

SPACER

slip clutch spring, Includes: washer

8шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

7

181701C1

PIN ASSY.

PIN ASSY, idler pivot, Includes: nut, bolt and washer

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

8

592993R1

SPACER

for idler support pivot

1шт.

9

182323C1

SUPPORT

idler, Includes: bolt and nut

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

10

181704C2

PLUG,1/2" - 13 x 356mm

BOLT, feeder jackshaft tightener, Includes: nut

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

11

355105R1

SPRING

adjusting bolt

1шт.

12

1313002C1

SPACER

adjusting bolt spring

1шт.

13

181710C1

BUSHING

feeder drive idler spacer, Includes: washers

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

21883R1

WASHER

.531 x 1.750 x .090

1шт.

608081R1

WASHER

.656 x 1.750 x .090

1шт.

14

181705C1

LEVER

idler

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

16

187388C91

PULLEY

drive tightener, 8 in. OD - 203.2mm OD

1шт.

17

M80215

SPACER

drive tightener, Includes: bolt and washers

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 X 3-3/4 TYPE 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

18

187404C1

GUIDE

jackshaft drive belt

2шт.

19

184596C2

JACKSHAFT

SHAFT, feeder cross

1шт.

20

611583R91

BALL BEARING

BEARING, feeder jackshaft LH

1шт.

21

517645R11

COLLAR

W/SET SCREW, brg locking LH

1шт.

22

184647C91

BALL BEARING,34.92mm ID x 80mm OD x 21mm W

BEARING, feeder jackshaft RH

1шт.

23

184648C1

COLLAR

W/SET SCREW, brg locking RH

1шт.

24

180955C1

FLANGED BEARING,0.375"

FLANGE, feeder jackshaft LH, Includes: bolt, nut and washer

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

178254C1

SUPPORT

CHANNEL, jackshaft shield, replaces 1320762C1, for use with rock trap, Includes: screws, nut and washers

2шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

663562R1

FLANGE

feeder jackshaft RH brg, Includes: bolt and nut

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

27

175915C2

SUPPORT

feeder jackshaft LH brg, Includes: bolt and nut

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

28

187478C2

SUPPORT

feeder jackshaft RH brg

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

29

176572C2

PULLEY

feeder jackshaft driven, 13.5 in. OD - 342.9mm OD

1шт.

30

Q1376

KEY

3/8 x 2-1/4 sq. tapered

1шт.

31

197412C1

SET OF BELTS

(2), Feeder jackshaft drive

1шт.

32

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, feeder jackshaft: Includes: pins

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2.375 hd type 5

1шт.

586591R1

COTTER PIN

PIN, 1/8 QA

1шт.

33

1311167C1

SHIELD

feeder jackshaft drive, replaces 184583C1

1шт.

34

184585C2

BRACKET

SUPPORT, shield upper front, Includes: bolt, nuts and washers

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

35

184586C1

SUPPORT

shield upper rear, Includes: bolt, screw and nut

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

36

184587C1

SUPPORT

shield lower rear, Includes: bolt and nut

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

37

184584C1

SHIELD

WRAPPER, shield drive, Includes: nut and screws

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

38

189729C1

CHANNEL

SHIELD, jackshaft outer, LH, for use with rock trap, Includes: screw

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

39

185685C1

SHIELD

jackshaft belt, Includes: bolt and nut

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

40

181695C2

BRACKET

SUPPORT ASSY, idler draw bolt, Includes: bolt, pin and nut

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

41

PULLEY, feeder jackshaft drive, refer to this group under feeder drive

1шт.

42

SHAFT, feed conveyor, refer to this group under feed conveyor

1шт.

43

1315318C1

BOLT,Hex, 3/8" - 16 x 5", Type 5

3/8 x 5 hex, type 5 clutch spring

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

477589R1

WASHER

.406 x 1.500 x .105

1шт.

44

1320763C1

CHANNEL

SHIELD, jackshaft inner, LH, for use with rock trap, Includes: nut and washer

1шт.
