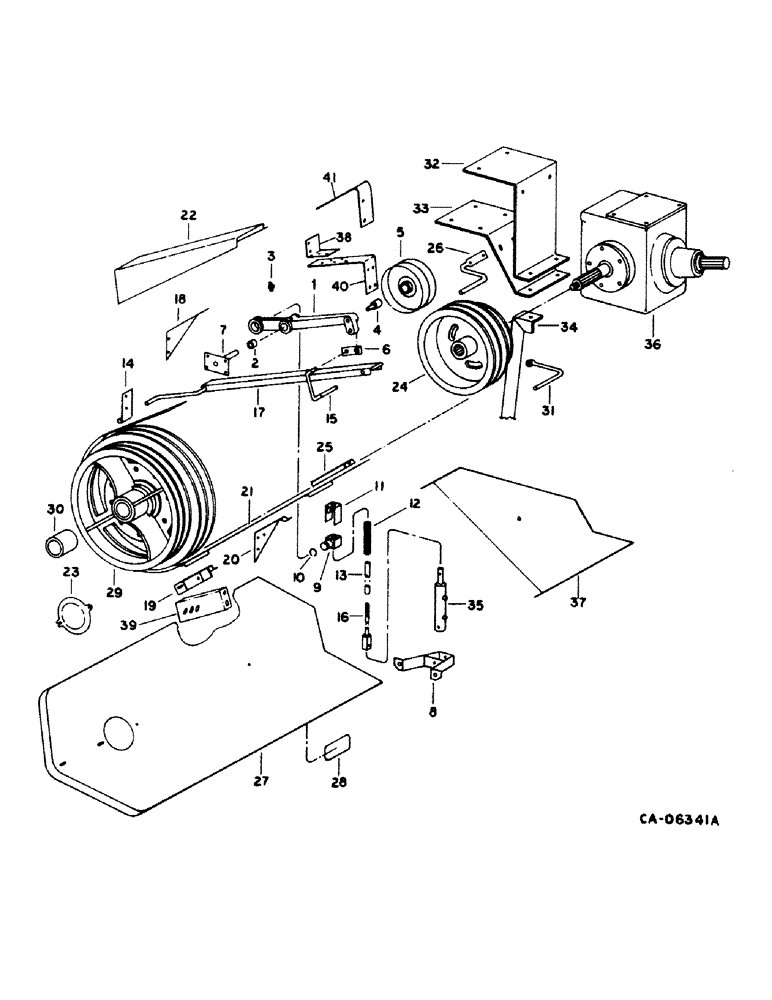

Запчасти Case IH 1420 (33-08) - FEEDER, FEEDER DRIVE (13) - FEEDER

1

186864C91

LEVER ASSY.

LEVER ASSY, feeder drive idler, without rock trap

1шт.

1

1315090C91

LEVER

ASSY, feeder drive idler, with rock trap, Includes: pin, washer and Ref. nos. 2, 4 & 5

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

21761R1

WASHER

.906 x 1.500 x .054

1шт.

2

186431C1

BUSHING

idler arm

2шт.

3

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 45 deg lub

2шт.

4

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

idler pulley

1шт.

5

192865C1

PULLEY

flat idler, without rock trap, 8 in. OD - 203.2mm OD

1шт.

5

1315091C1

PULLEY

flat idler, with rock trap, 6.5 in. OD

1шт.

6

181042C1

SUPPORT

upper belt guide, with rock trap

1шт.

6

1315093C1

BRACKET

SUPPORT, upper belt guide, with rock trap, Includes: bolt, washer and nut

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 x 2-1/2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

7

186866C1

SUPPORT ASSY.

SUPPORT ASSY, feeder drive idler pivot, Includes: screw and nut

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

8

194369C2

SUPPORT

ASSY, cylinder, Includes: bolt and nut

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

9

186853C1

PIVOT

feeder drive arm spring rod, Includes: washer

1шт.

23047R1

WASHER

1.531 x 2.500 x .054

1шт.

10

27885R1

SNAP RING,#150, 1.408", Ext

RING, spring rod pivot retaining

1шт.

11

194357C2

CHANNEL

feeder drive belt tightener, without rock trap

1шт.

11

1315097C1

SLIDE

CHANNEL, drive belt tightener, with rock trap

1шт.

12

186745C1

SPRING

tightener rod

1шт.

13

186472C2

TUBE,0.875" OD, 320 mm Length

spring rod

1шт.

14

186873C1

HINGE

retainer pivot, Includes: screw and nut

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

186874C1

ROD

feeder drive belt retainer, Includes: pin and washer

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

16

194216C2

ROD

ASSY, feeder drive tightener, Includes: nut, washer and pin

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

23304R1

CLEVIS PIN,3/8" x 1 9/16"

PIN, CLEVIS, 3/8" x 1 9/16"

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

17

186875C1

GUIDE

ASSY, feeder drive belt, without rock trap

1шт.

17

1315170C1

BRACKET

GUIDE ASSY, feeder drive belt, with rock trap, Includes: pin and washer

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

18

186878C2

SUPPORT

belt guide upper

1шт.

19

181373C1

SUPPORT ASSY.

SUPPORT ASSY, belt guard lower, with rock trap, Includes: screw and nut

1шт.

177107C1

BOLT,Hex Serr, 1/2" - 13 x 3/4"

SCREW, 1/2 x 3/4 hex/hd flange

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

20

186879C1

SUPPORT ASSY.

SUPPORT ASSY, belt guard rear, without rock trap

1шт.

20

1315098C1

BRACKET

SUPPORT ASSY, belt guard rear, with rock trap, Includes: bolt, nut and washer

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

21375R1

WASHER

.531 x 1.250 x .164

1шт.

21

186881C1

GUARD ASSY.

GUARD ASSY, feeder drive belt, without rock trap

1шт.

21

1315096C1

BRACKET

GUARD ASSY, feeder drive belt, with rock trap, Includes: screws and nut

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW, 3/8 x 1-1/2 h/hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

22

185384C1

COVER

feeder drive belt upper, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

23

188315C1

DOOR

feeder drive belt, Includes: screw, bolt and nut

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

935735R1

WING NUT

wing

1шт.

24

PULLEY, feeder drive, refer to group 20 under belt drive RH side

1шт.

25

186377C1

V-BELT,22.33 mm W x 3370.69 mm L

Feeder drive, Without rock trap 22.33 mm W x 3370.69 mm L

1шт.

25

1315169C1

V-BELT,3771.7 mm L

Feeder Drive, with Rock Trap 3771.7 mm L

1шт.

26

186444C1

ROD

feeder drive belt trap, Includes: screw and nut

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

27

1303109C93

COVER ASSY

feeder drive belt, Includes: Ref. no. 28

1шт.

28

188199C1

PRODUCT GRAPHIC

caution

1шт.

29

184506C91

PULLEY ASSY.

PULLEY ASSY, feeder driven, 56. in. and 58. in. OD, 1424.5mm and 1477.0mm OD, includes ref. no. 30

1шт.

30

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

driven pulley

1шт.

31

183233C1

ROD

feeder belt upper, Includes: bolt and washer

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

32

185219C1

SUPPORT

gear case upper, Includes: bolts, nut and washers

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

33

185220C1

SUPPORT

gear case lower, Includes: bolts, nut and washer

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

34

185328C1

SUPPORT

gear case, Includes: bolt and nut

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

35

CYLINDER ASSY, refer to group 10 under feeder clutch cylinder

1шт.

36

185496C93

CASE

GEAR CASE, refer to group 7 under feeder & cleaning fan drive gear case

1шт.

REF #36- P/N 185496C93 GEAR CASE; IF DLR IS LOOKING FOR THE JOINT ASSY, UNIVERSAL DRIVE, PLS SEE PAGE 7-17, REF # 62 P/N 191596C91. JBEDFORD 7/6/99 (CASE# 288299).

1шт.

37

1315089C1

GUARD

SHIELD, feeder belt extension, with rock trap, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

38

1315092C1

ANGLE

SUPPORT ASSY, shield upper, with rock trap, Includes: screw, nut and washer

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

39

1315083C1

SUPPORT

belt shield lower extension, with rock trap, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

40

1315078C3

SUPPORT

retainer pivot extension, with rock trap, Includes: screw and nut

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

41

1315233C1

BRACKET

SUPPORT, belt guard upper, with rock trap, Includes: screw and nut

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.
